BELAN Automation delivers fully automatic aluminum bar straightening machine solutions tailored for new energy electric vehicle conductive aluminum bar processing, covering straightening, precision cutting, visual inspection and laser traceability.
Why Adopt Automatic Aluminum Bar Processing Solution
With the rapid expansion of new energy vehicle and energy storage industries, conductive aluminum bars have become core components for electrical connection and power conduction. Modern manufacturing raises stricter standards for aluminum bar straightness, cutting length accuracy and full-lot traceability.
Traditional aluminum bar processing relies heavily on manual feeding, straightening, measuring, cutting and inspection. Discrete manual procedures cause low productivity, length deviation, straightness errors, burr defects and mixed batches, failing to meet high-standard EV component production requirements. The intelligent aluminum bar straightening machine solves these pain points with one-stop automatic processing.
.jpg?imageMogr2/format/webp)

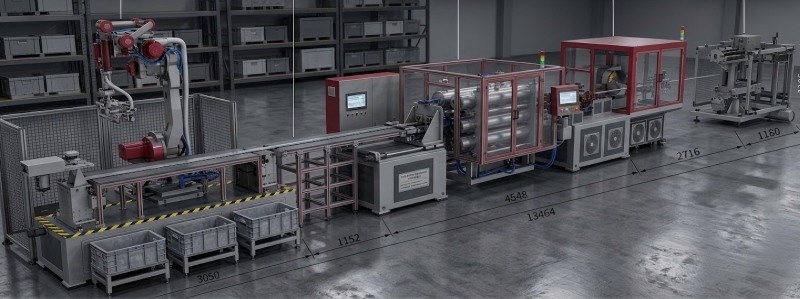

Fully Automatic Aluminum Bar Straightening & Cutting Equipment
Full Automatic Processing Workflow
The integrated production workflow of the aluminum bar straightening machine realizes unmanned continuous production: A/B dual-rack feeding → aluminum bar straightening → precision servo feeding → visual inspection → laser marking → fixed-length cutting → automatic sorting and blanking. Multi-process linkage minimizes manual intervention and greatly improves dimensional consistency and production stability.
1. A/B Dual Material Rack Alternate Feeding
Equipped with dual independent material racks, the machine supports alternate feeding operation. While one rack is in processing status, operators can complete pre-feeding preparation on the other rack. Automatic rack switching eliminates shutdown waiting time, maximizes equipment utilization and ensures non-stop mass production of new energy aluminum bars.
2. Precision Straightening Mechanism
Aluminum bars inevitably generate bending and deformation during storage, transportation and unwinding. Direct cutting will cause assembly failure and poor conductive performance. The professional straightening mechanism of the aluminum bar straightening machine corrects material deformation continuously, standardizes bar straightness, and lays a qualified foundation for subsequent feeding, inspection and cutting procedures.
3. Servo Feeding & Encoder Length Control
After straightening, the servo-driven feeding system pushes aluminum bars forward according to preset parameters. The high-precision encoder monitors real-time feeding length and feeds data back to the control system to eliminate cumulative errors caused by traditional time-based feeding. It supports fast parameter switching for different aluminum bar specifications, adapting to diversified EV production needs.
Visual Inspection For Higher Stability
Qualified production requires not only efficient processing but also reliable quality control. This aluminum bar straightening machine is equipped with an advanced visual inspection system to detect finished aluminum bars in real time.
Inspection items include bar calibration data, dimensional accuracy, surface anomalies, cutting burrs and processing deviation. The system compares detected data with standard parameters and triggers an automatic alarm for defective products, effectively avoiding manual missed inspection and stabilizing overall product quality.
Laser Marking For Full Product Traceability
Full-process traceability is essential for new energy vehicle component manufacturing. This automatic aluminum bar straightening machine adopts a dual-head laser marking module to print exclusive QR codes on double sides of aluminum bars, recording product numbers, batch codes and production information.
Laser marking builds unique product identity, supports rapid quality tracing in assembly and after-sales stages, and replaces manual labeling to prevent label falling off and batch mixing. It realizes digital and standardized management of aluminum bar production.
Fixed-Length Cutting & Automatic Sorting
After straightening, feeding, inspection and marking, the machine performs precise fixed-length cutting according to encoder real-time data. The automatic blanking system classifies and collects qualified and unqualified products based on visual inspection results, eliminating secondary manual screening.
The whole closed-loop process achieves fully automatic production: automatic feeding → precise straightening → servo feeding → visual inspection → laser marking → fixed-length cutting → intelligent sorting.
Core Application Scenarios
This aluminum bar straightening machine solution is specially developed for new energy vehicle conductive aluminum bar processing. It supports customized configuration of straightening, feeding, inspection, marking and cutting functions according to different material specifications and production beats.
It is the ideal processing equipment for manufacturers requiring mass production, multi-model switching, high dimensional consistency and full batch traceability, greatly improving automation level and on-site management efficiency of EV component workshops.
How To Choose The Right Equipment
Different EV aluminum bars vary in section size, length tolerance, straightness standard and production capacity. Equipment selection should focus on actual production parameters, not blind specification expansion.
Key customization parameters include aluminum bar specifications, feeding mode, finished length range, straightening precision, production speed, inspection items, laser marking position and product sorting mode. Targeted solution design ensures perfect matching with actual production demands.
Conclusion & Custom Solution Service
Modern new energy aluminum bar manufacturing requires balanced improvement in precision, efficiency, quality control and digital traceability. BELAN automatic aluminum bar straightening machine integrates multiple independent processes into one intelligent device, reducing manual operation and realizing stable continuous production.
BELAN Machinery specializes in automatic metal forming solutions for automotive industry. If you need integrated aluminum bar straightening, cutting, inspection and marking equipment for new energy vehicles, feel free to contact our team. We will provide customized solution and equipment configuration according to your drawings, material specifications and capacity requirements.
