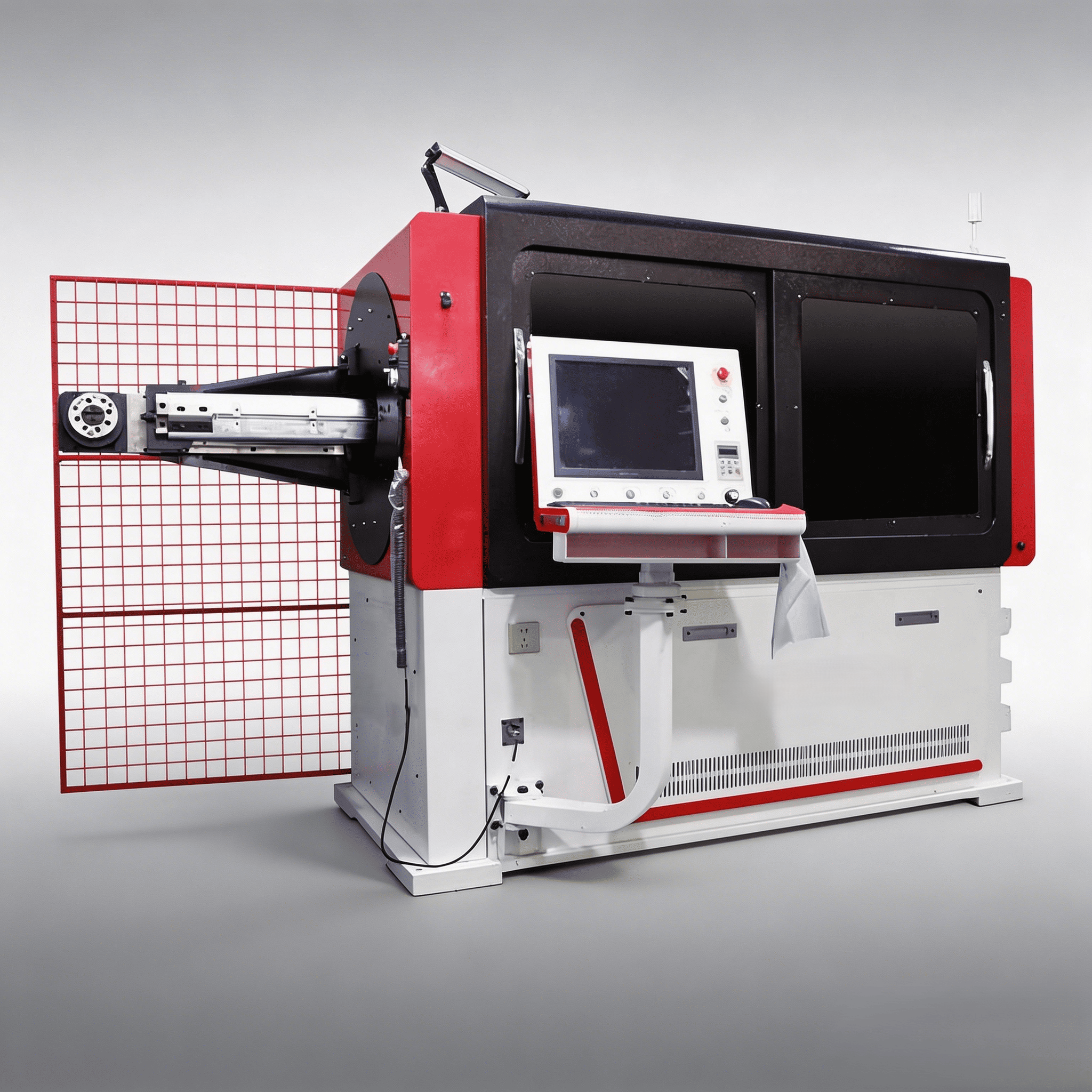

BL-3D-51400 5-Axis CNC Wire Bending Machine
BL-3D-51400 is a 5-axis CNC wire bending machine developed for processing large-diameter steel wire with exceptional precision and stability. Designed for soft wire Φ5.0–14.0mm and hard wire Φ5.0–10.0mm, it combines a powerful 19.4KW drive system with a rigid 4600KG machine structure to ensure stable operation under heavy workloads. Featuring a 650mm bending stroke, wire feeding speeds up to 90m/min, and high-precision servo control, the machine is well suited for manufacturing construction hardware, industrial brackets, automotive structural components, agricultural equipment, and other heavy-duty wire products requiring reliable high-volume production.
Product Advantages
Wide Wire Compatibility for Large-Diameter Processing
It supports the forming of soft wires (Φ5.0–14.0mm) and hard wires (Φ5.0–10.0mm), adapts to wire materials with different tensile strengths, meets the processing demands of large-diameter heavy-duty wires, and covers various industrial wire production scenarios.
5-Axis Precision Drive with Superior Forming Accuracy
Equipped with a 5-axis CNC control system, its core components adopt branded configurations including Yaskawa servo motors, Shangyin linear guide rails and NSK/IKO bearings. It reaches a feeding accuracy of 300mm±0.1mm and a bending accuracy of 90°±0.2°, ensuring high precision and dimensional consistency for complex wire forming.
Heavy-Duty Frame for Stable & Efficient Mass Production
The machine body is made of A3 steel, with a host weight of 4600kg, featuring excellent structural rigidity and vibration resistance. With a total power of 19.4KW and a maximum feeding speed of 90m/min, it supports high-speed continuous forming of large-diameter wires, perfectly fitting large-scale industrial mass production.
BL-3D-51400
The BL-3D-51400 is a high-performance 5-axis CNC wire forming machine tailored for large-diameter heavy wire processing. Supporting soft wires of Φ5.0–14.0mm and hard wires of Φ5.0–10.0mm, it adopts premium branded core components, with a total power of 19.4KW and a 4600kg heavy rigid frame. It delivers high feeding speed and reliable forming accuracy, enabling stable, efficient continuous processing for large-scale industrial wire production.
-
Versatile large-diameter wire compatibility
-
5-axis high-precision forming performance
-
Heavy-duty stable mass production capacity
Technical Specifications
Technical Data
Automatic Wire Feeding Rack
Machine in Operation
BL-3D-51400
BL-3D-51400 Rotary Head Wire Bending Machine Function Introduction
Application Samples
The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
