BL-TP-30-5E 12-Axis TP Series Special Wire Bending Machine

The BL-TP-30-5E is a 12-axis TP Series special wire bending machine developed for precision processing of flat wire, special-profile conductors, and compact electrical components used in EV busbar systems and industrial electrical equipment. Supporting wire widths from 2.0–5.0mm and thicknesses from 5.0–30.0mm, it integrates crawler feeding, CNC bending, rotating, shearing, and multi-axis forming into one efficient production process. Powered by a 25.7KW servo system and supported by a robust 3800KG machine frame, it provides stable, high-precision production for electrical hardware, automotive components, and precision special wire applications.

APPLICABLE WIRE SPEC Width Φ2.0-5.0mm / Thickness Φ5.0-30mm

NO. OF CONTROL AXES 12 Axis

TOTAL POWER 25KW

MACHINE WEIGHT 3800KG

In Stock & Ready to Ship

Description Parameters Video Wire Samples

Product Advantages

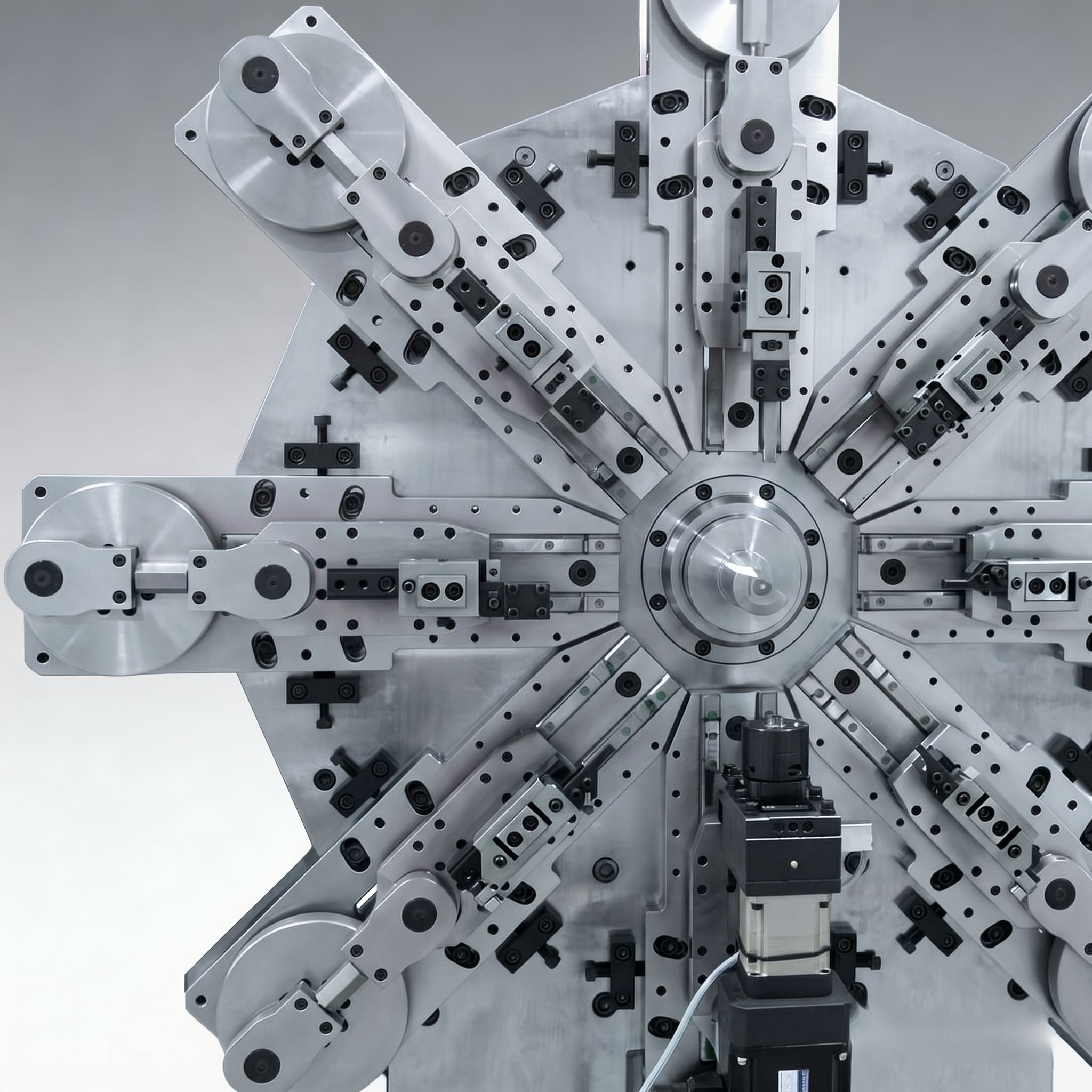

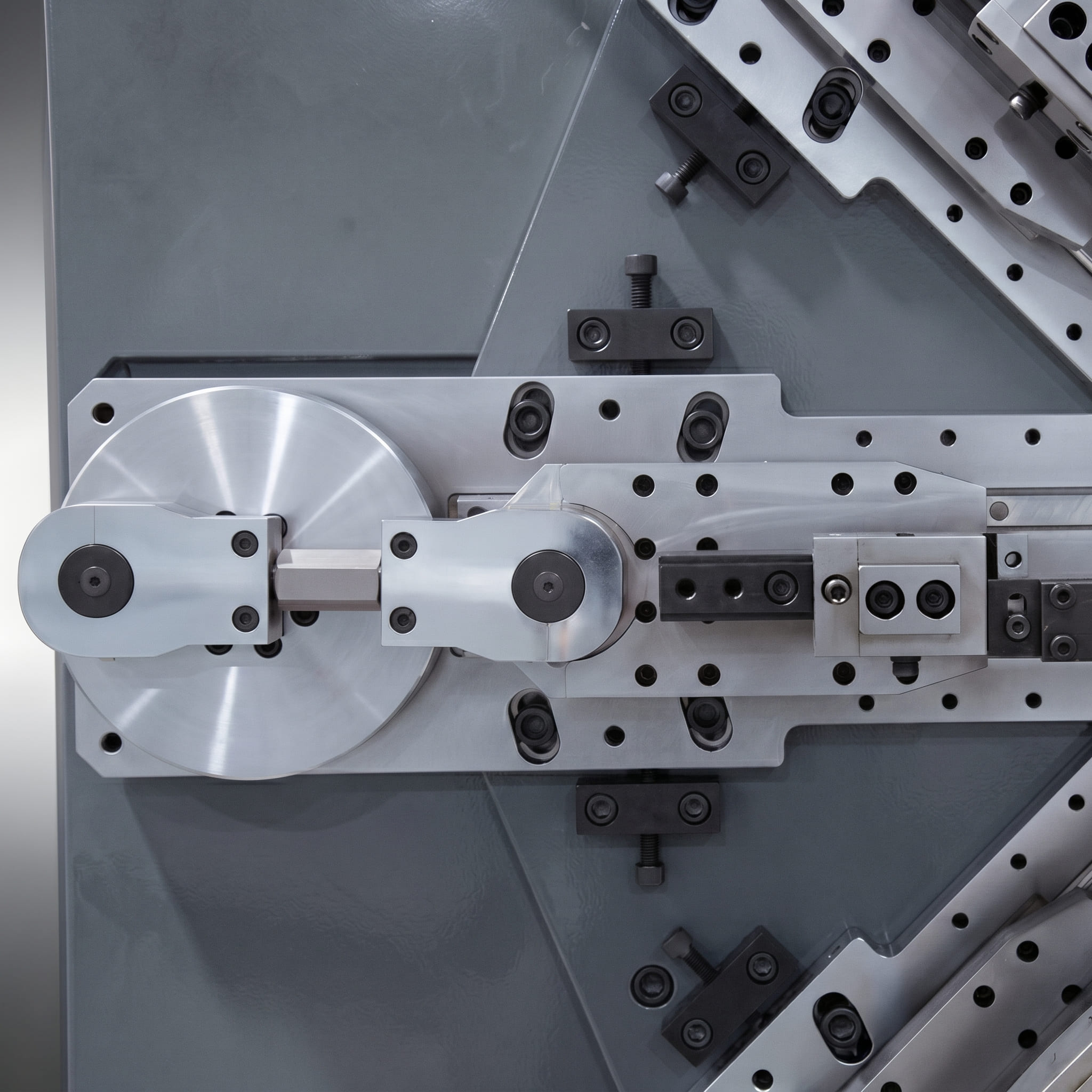

12-Axis High-Precision Control

12-axis CNC system realizes flexible multi-dimensional forming, with 90°±0.2° angle accuracy, ensuring high consistency for special width/thickness wires.

Stable Multi-Motor Configuration

Equipped with 4.5KW wire feeding motor + 2.7KW turning motor + 2.0KW×8 arm motors + 1.5KW curl motor, total power 25.7KW, strong and stable for long-time production.

Heavy-Duty & Reliable Structure

3800KG heavy machine body and 1000KG large-load feeder, stable running and strong load capacity, suitable for industrial high-volume production.

Engineered for Medium-Small Size Special Wire Forming

The BL-TP-30-5E is a cost-effective special wire processing solution for medium-small specifications. It delivers stable forming quality, flexible process adaptation, and easy operation, meeting the standards of precision electronic components, small automotive special parts, and miniaturized hardware manufacturing.

Specialized for medium-small special wires (Width Φ1.5-6.0mm / Thickness Φ5.0-30.0mm)

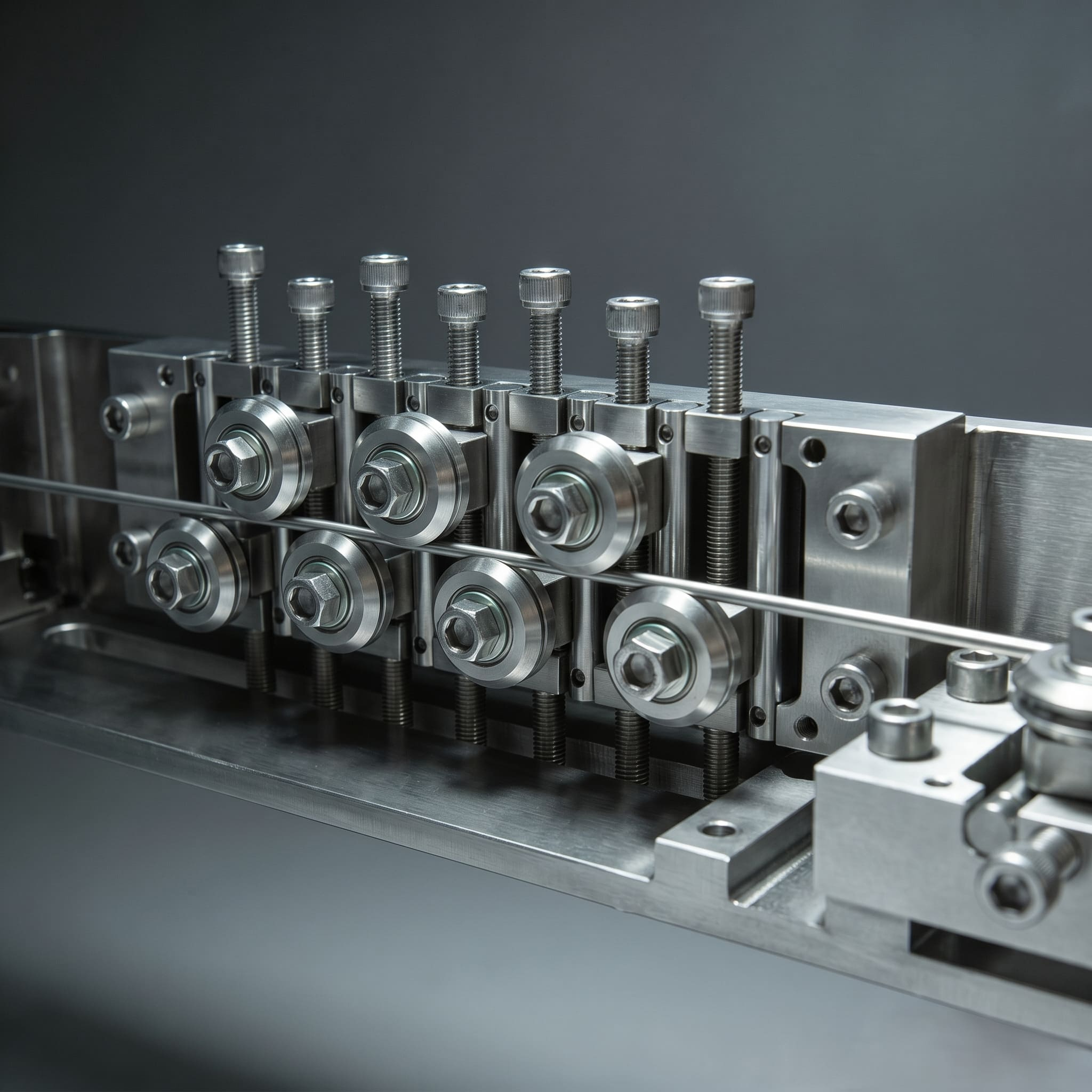

12-axis control + crawler feeding for stable small-gauge wire processing
Compact structure (2600×2000×2000mm) suitable for limited workshop space

Technical Specifications

Action

Machine in Operation

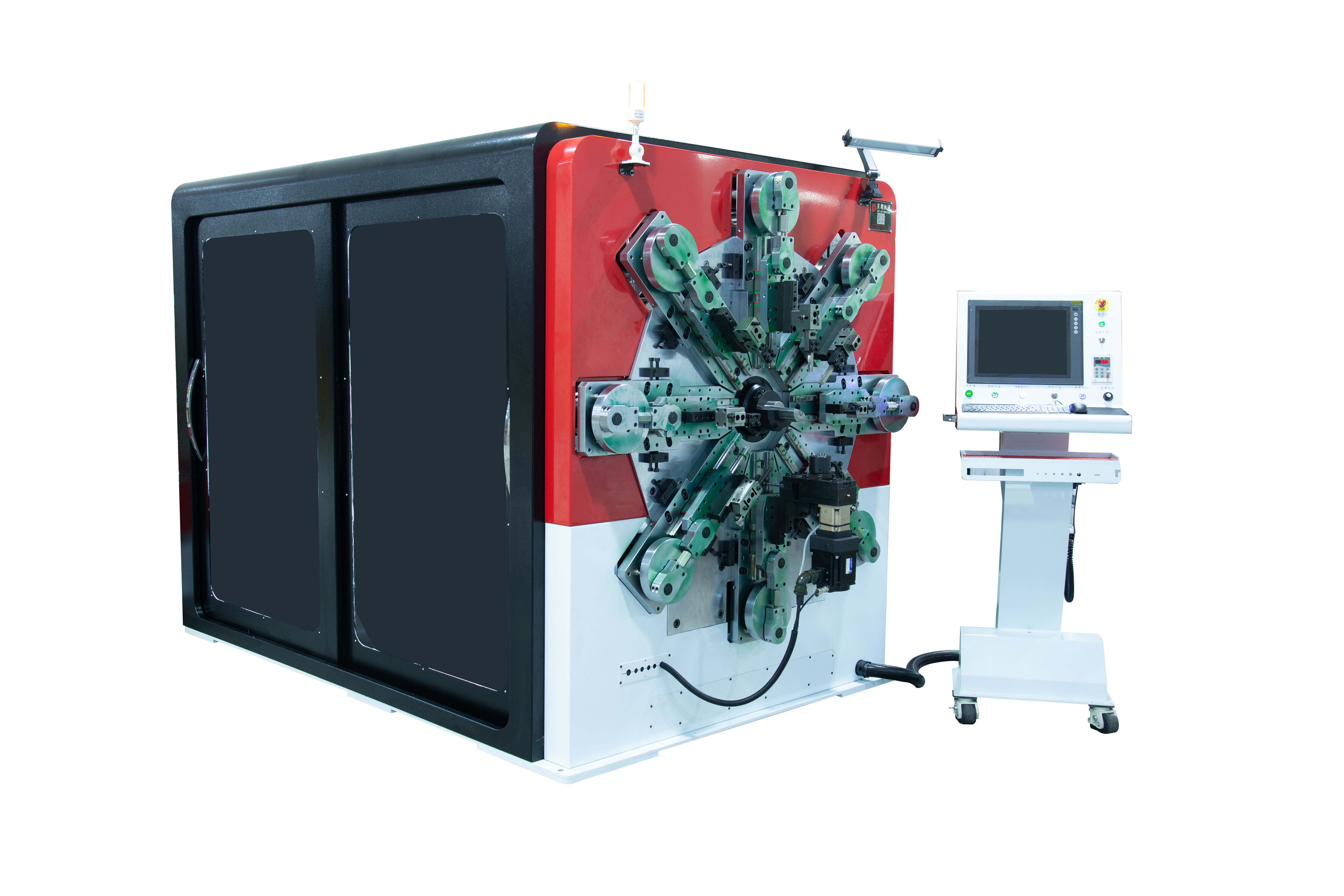

BL-TP-30-5E

BL-TP-30-5E: 5-axis special wire bending machine (TP Series) for medium-small size special wires (Width Φ1.5-6.0mm / Thickness Φ5.0-30.0mm), featuring crawler feeding and compact design for precise forming.

Capabilities

Application Samples
