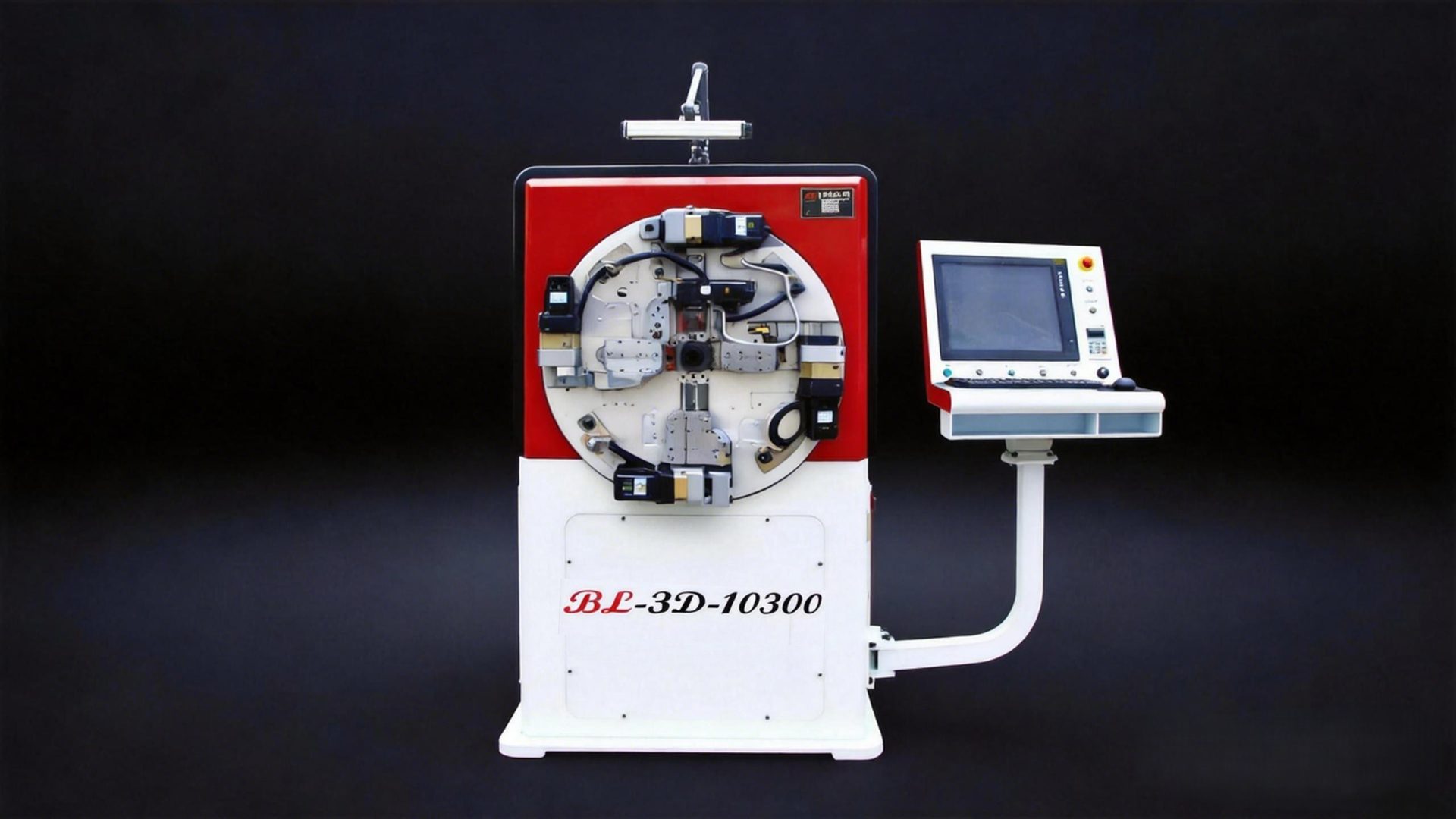

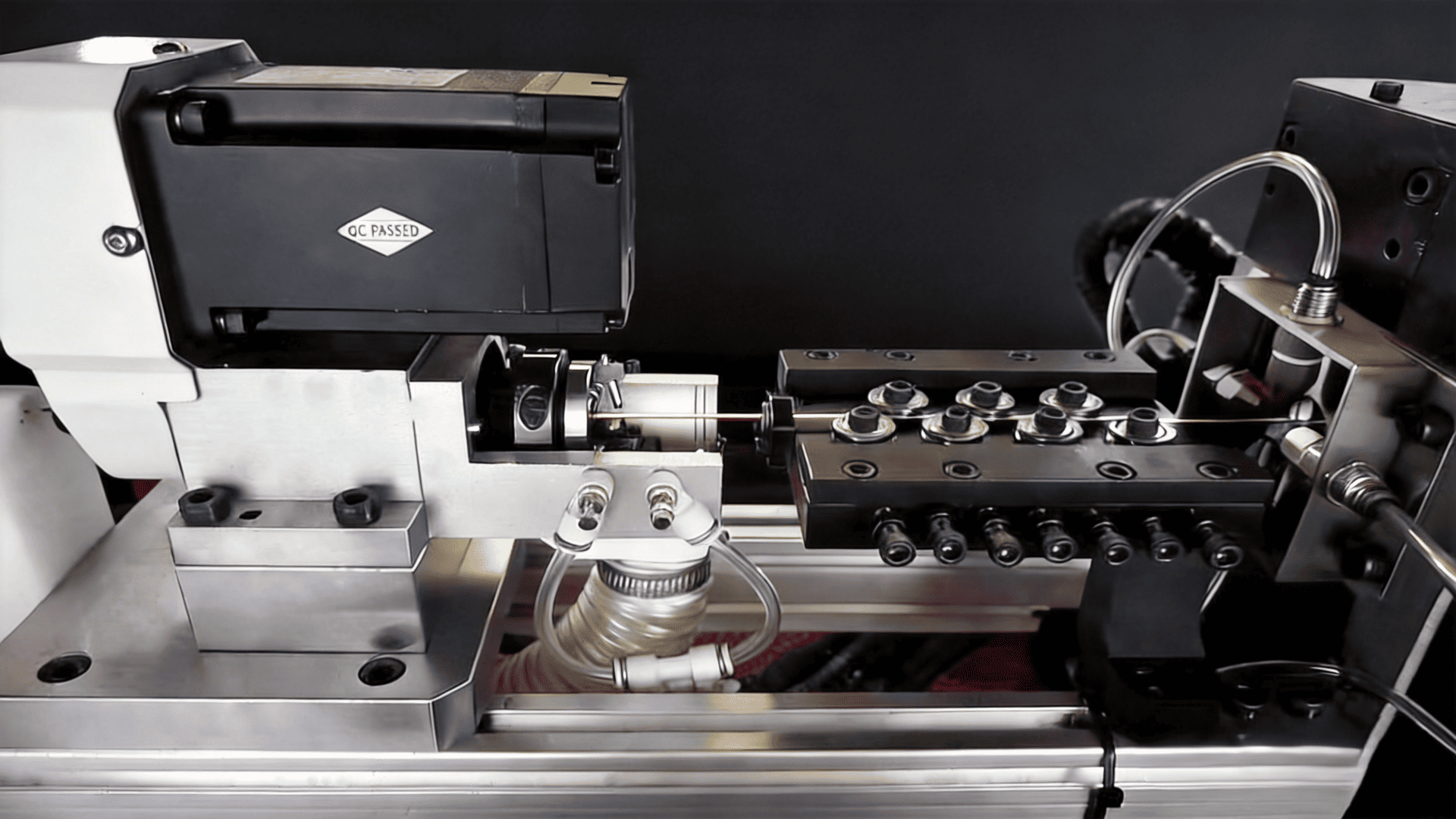

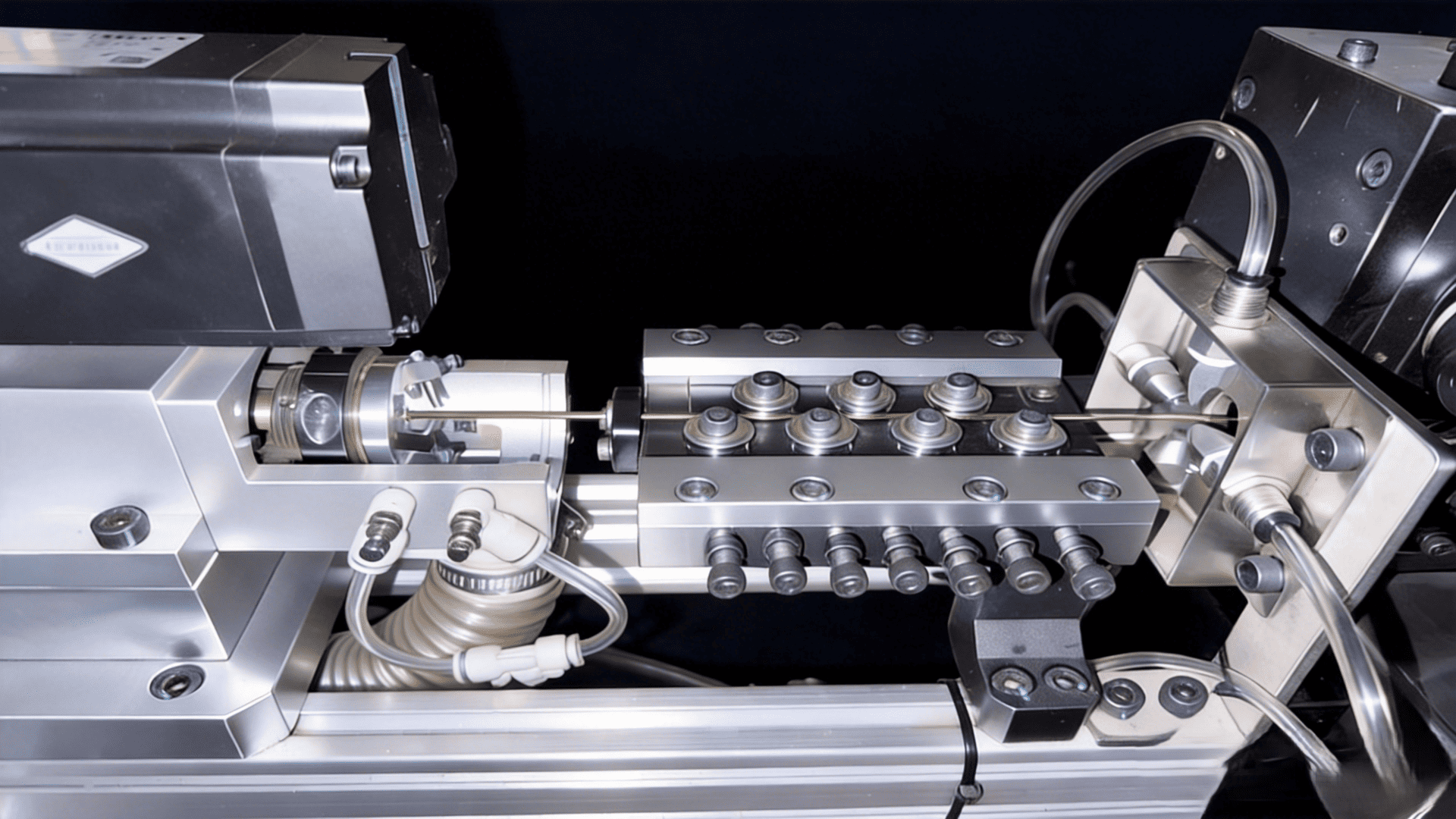

BL-3D-10300 10-Axis CNC Enameled Wire Bending Machine
BL-3D-10300 is a 10-axis CNC enameled wire bending machine developed for high-speed precision forming of enameled copper wire and fine metal wire components. Supporting wire diameters from Φ1.0–4.0mm (soft) and Φ1.0–2.5mm (hard), it features a 9.75KW servo drive system, wire feeding speeds up to 80m/min, and a rigid 2000KG machine frame for stable continuous production. The integrated multi-axis control system combines wire feeding, bending, rotation, and stripping operations into one automated process, making it an ideal solution for manufacturing motor coils, transformers, inductors, relays, electronic components, and other precision enameled wire products.
Product Advantages
10-Axis Precision Control
Adopts 10-axis CNC control system, delivering high-precision enameled wire forming for soft Φ1.0-4.0mm and hard Φ1.0-2.5mm wires, ensuring consistent quality.
Efficient Power Design
9.75KW optimized power consumption, 2000KG robust body, and compact size (3500×1800×1600mm), balancing performance and energy efficiency.
Versatile Application Range
Suitable for automotive, electronics, and precision component manufacturing, with maximum wire feeding speed of 80m/min and 300mm±0.1mm accuracy.

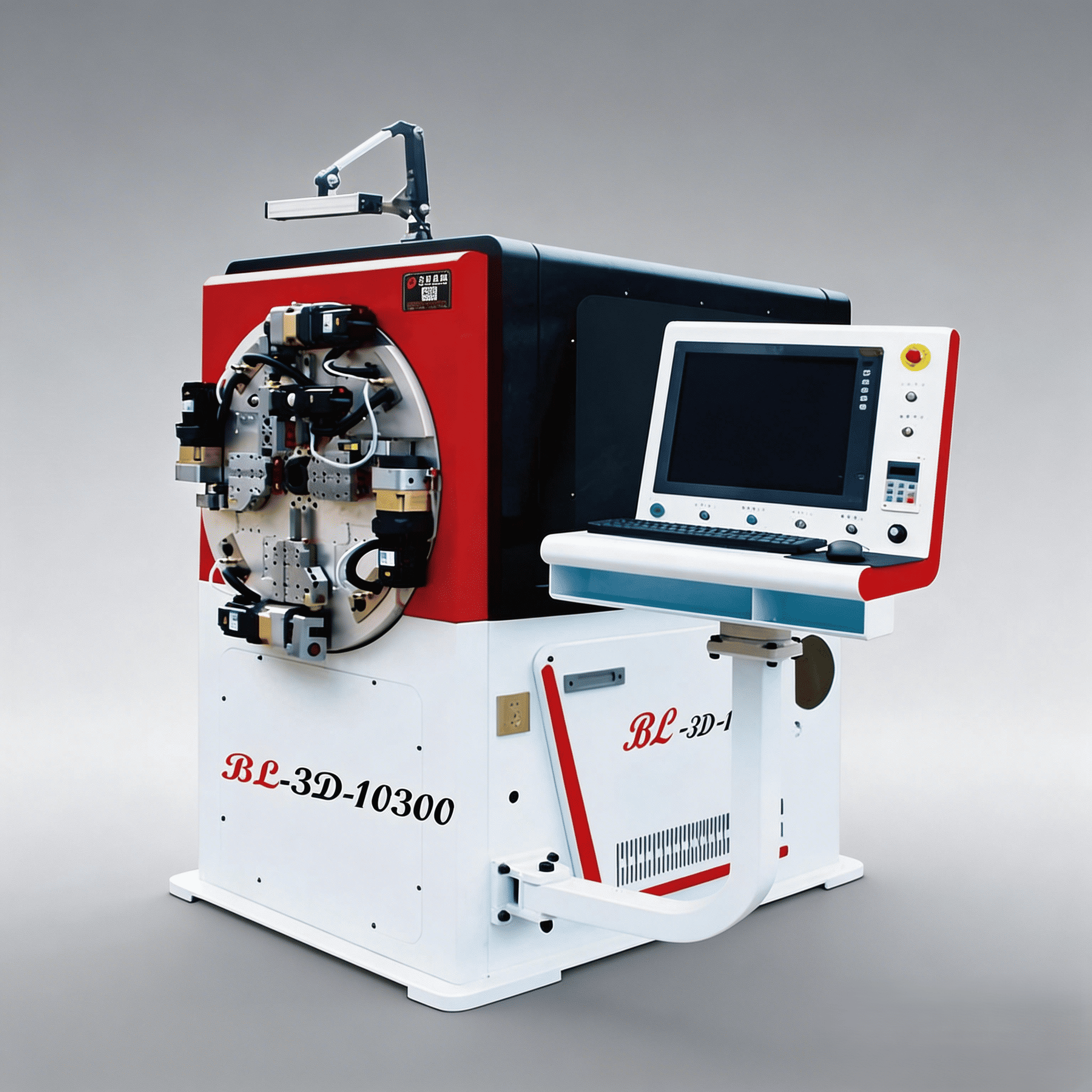

Engineered for Enameled Wire Excellence
The BL-3D-10300 is a dedicated 10-axis CNC enameled wire forming solution. It ensures consistent geometry, tight tolerances, and reliable performance, meeting the strict quality and safety standards of automotive, electronics, and precision component manufacturers.
-
High-precision enameled wire forming (feeding accuracy: 300mm±0.1mm)
-
10-axis CNC control for complex geometries
-
Reliable performance (9.75KW total power, 2000KG robust frame)
Technical Specifications
Technical Data
Automatic Feeder Info
Machine in Operation
BL-3D-10300
This is a high-precision 10-axis CNC enameled wire bending machine, specially designed for soft material Φ1.0-4.0mm and hard material Φ1.0-2.5mm wire specifications. With a total power of 9.75KW and a machine weight of 2000KG, it enables stable, high-precision enameled wire forming, ideal for small-to-medium batch and precision industrial production scenarios.
Application Samples
The Busbar Processing Machines are engineered for high-precision fabrication of copper/aluminum busbars, specializing in cutting, punching, bending, and shaping for electrical power distribution components.
