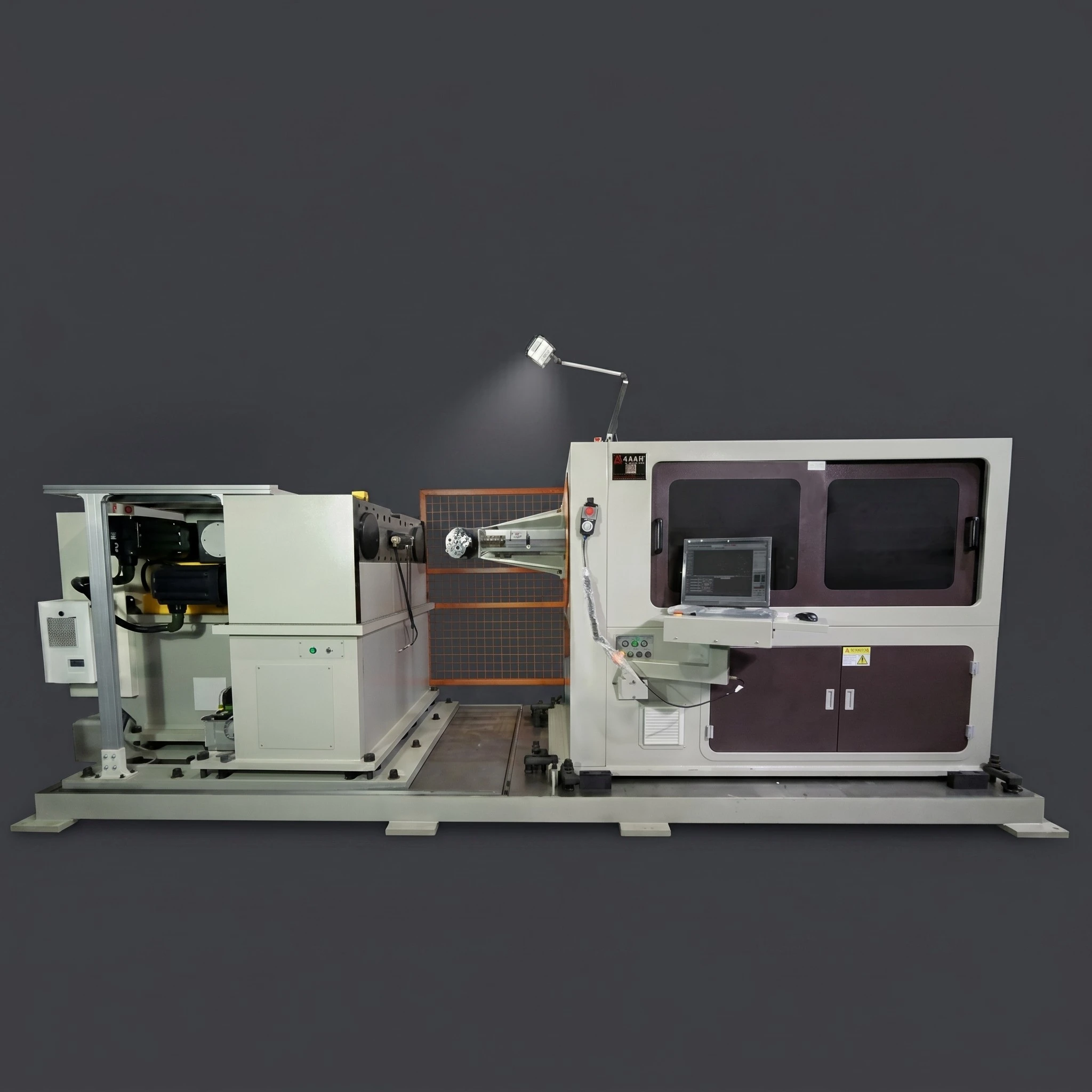

BL-3D-DT51400 8-Axis CNC Heading & Bending Integrated Machine

BL-3D-DT51400 is a high-capacity 8-axis CNC heading and bending integrated machine developed for manufacturing heavy-duty wire components that require cold heading and precision bending in a single production cycle. Designed for wire diameters from Φ6.0–14.0mm (tensile strength ≤500N), it combines upsetting, feeding, bending, cornering, and cutting into one automated operation to maximize efficiency and product consistency. Powered by a 72.1KW servo system and built on a rigid 15,500KG machine frame, it provides exceptional stability for continuous production of automotive exhaust hangers, suspension components, heavy-duty hooks, and other precision wire products.

APPLICABLE WIRE DIAMETER: Φ6.0–14.0mm (Tensile strength ≤500N)

NO. OF CONTROL AXES: 8 axes

TOTAL POWER: 72.1 KW

MACHINE WEIGHT: 15500 KG

In Stock & Ready to Ship

Description Parameters

Product Advantages

Integrated heading and bending for higher efficiency and precision

The machine combines cold heading (upsetting) and wire bending in one system. All processes including heading, cornering, bending, and cutting are completed in a single cycle without intermediate handling or re-clamping. This eliminates positioning errors common in separate processes, significantly shortens production cycles, and ensures consistent dimensional accuracy across batches.

High-power configuration with imported Japanese/German core components for stable high-strength wire processing

With a total power of 72.1KW, the machine features 15KW high-power servo motors for feeding, left/right clamping, and upsetting, plus 4.5KW cornering and swing arm motors. Core drive components include Sanyo servo motors (Japan) and Newcat reducers (Germany), paired with the Topcon control system. This delivers strong power and precise response, capable of stably processing Φ6.0–14.0mm wire with tensile strength ≤500N, meeting stringent automotive component standards.

High-hardness alloy steel modular design for excellent forming quality and long service life

The heading dies and key bending parts are made of high-hardness alloy steel, offering wear and impact resistance with minimal deformation over long-term use. The modular design enables fast cold heading speeds, high surface finish, and uniform stress distribution in the forming area, ensuring precise head shape and bending angle for every part. With a total machine weight of 15.5 tons, the structure provides excellent rigidity, low vibration, extended service life, and reduced maintenance costs.

BL-3D-DT51400

The BL-3D-DT51400 is a high-performance 8-axis CNC heading and bending integrated machine, designed for wire diameters Φ6.0–14.0mm (tensile strength ≤500N). With a total power of 72.1KW and a machine weight of 15500KG, it integrates cold heading and bending in one system, featuring Sanyo servo motors (Japan) and Newcat reducers (Germany) for high-speed, precise, and consistent production of automotive exhaust hooks, hood support rods, and other wire components.

Integrated heading and bending in one machine eliminates secondary positioning and reduces process steps for higher efficiency and part consistency.
High-power 72.1KW configuration with imported Sanyo servo motors (Japan) and Newcat reducers (Germany) ensures stable processing of high-strength wire (≤500N).
High-hardness alloy steel modular design delivers fast cold heading speeds, excellent surface finish, and uniform forming quality for long-term durability.
