BL-3D-51600 5-Axis CNC Wire Bending Machine
BL-3D-51600 is an 5-axis CNC wire bending machine engineered for processing extra-large diameter wire in demanding industrial applications. Designed for soft wire Φ8.0–16.0mm and hard wire Φ8.0–12.0mm, it features a powerful 26KW servo drive system, an 800mm bending stroke, and a rigid 5800KG machine frame for exceptional stability during continuous production. Equipped with an 11KW wire feeding motor and high-precision CNC control, it delivers outstanding forming accuracy, reliable repeatability, and long-term durability. The BL-3D-51600 is ideal for manufacturing construction hardware, heavy machinery components, power transmission parts, agricultural equipment, and other large-scale wire products requiring high-strength bending performance.
Product Advantages
Wide Wire Diameter Compatibility for Extra Thick Wire Processing
It supports the forming of soft wires (Φ8.0-16.0mm, tensile strength ≤ 500N) and hard wires (Φ8.0-12.0mm, tensile strength ≤ 1700N), adapts to large-diameter, high-spec metal wires, and meets the forming production demands of heavy-duty wires.
5-Axis Precision Control for Stable & Reliable Forming Accuracy
Equipped with a 5-axis CNC control system, it adopts core branded configurations including Japanese Yaskawa servo motors, Taiwan Hiwin linear guide rails and NSK/IKO bearings. It achieves a feeding accuracy of 300mm±0.1mm and a bending accuracy of 90°±0.2°, ensuring dimensional accuracy and consistency for large-diameter wire forming.
High-Power Heavy Frame for Stable Heavy-Duty Mass Production
With a total power of 26KW, it delivers strong feeding power. The machine body is made of A3 steel with a host weight of 5800kg, featuring excellent structural rigidity and vibration resistance. It supports long-time continuous forming of large-diameter wires, suitable for large-scale industrial mass production.

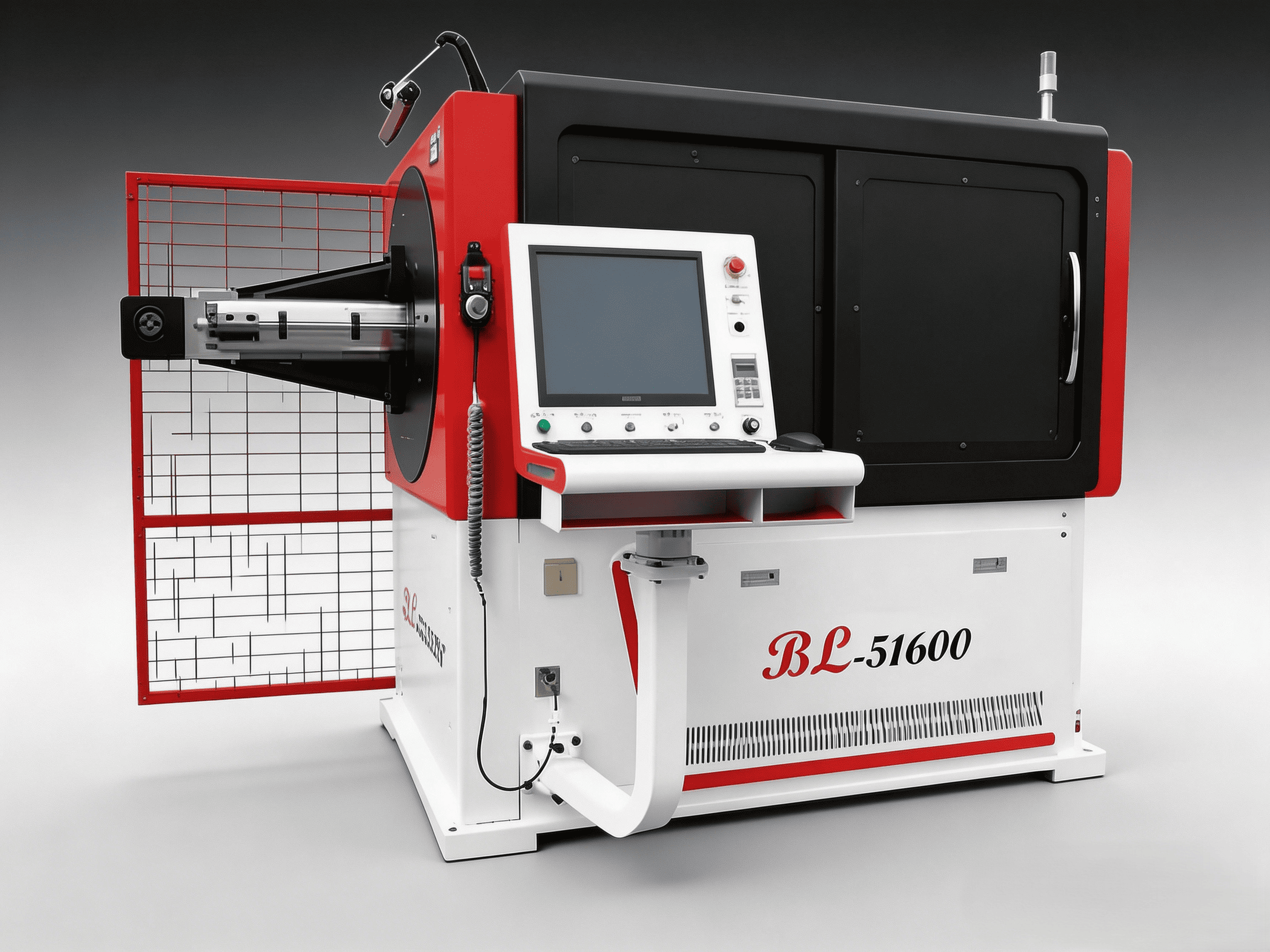

The BL-3D-51600
The BL-3D-51600 is a high-performance heavy-duty 5-axis CNC wire forming machine for extra large-diameter wire processing. Supporting soft wires of Φ8.0–16.0mm and hard wires of Φ8.0–12.0mm, it is equipped with premium branded core components. With a total power of 26KW and a 5800kg rigid heavy frame, it delivers strong power and reliable forming accuracy, suitable for heavy thick wire industrial production.
-
Extra large-diameter wire forming capability
-
5-axis high-precision heavy wire processing
-
High-power heavy frame for continuous mass production
Technical Specifications
Technical Data
Automatic Feeder Info
Machine in Operation
BL-3D-51600
BL-3D-51600/61600 Rotary Head Wire Bending Machine Function Introduction
Application Samples
The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
