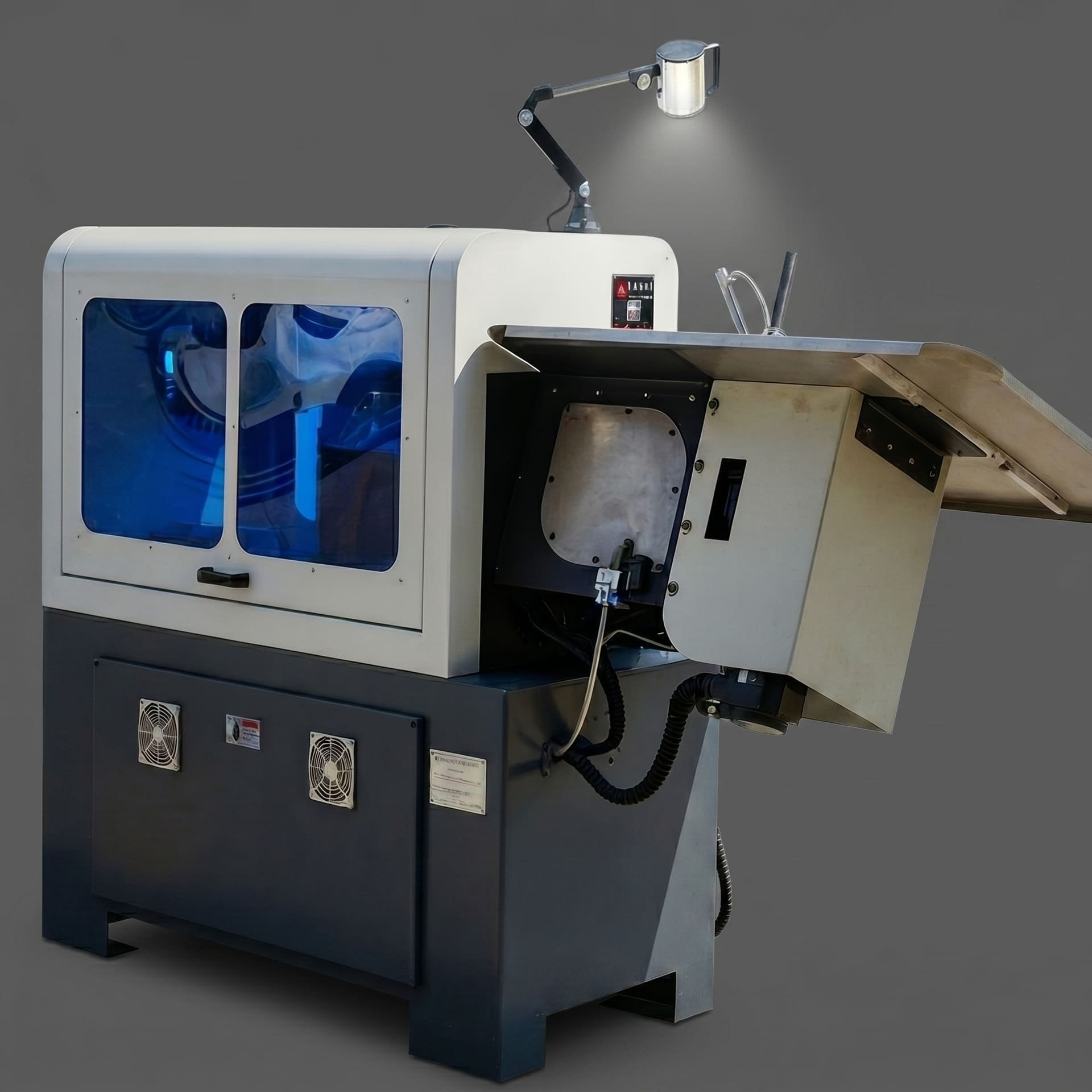

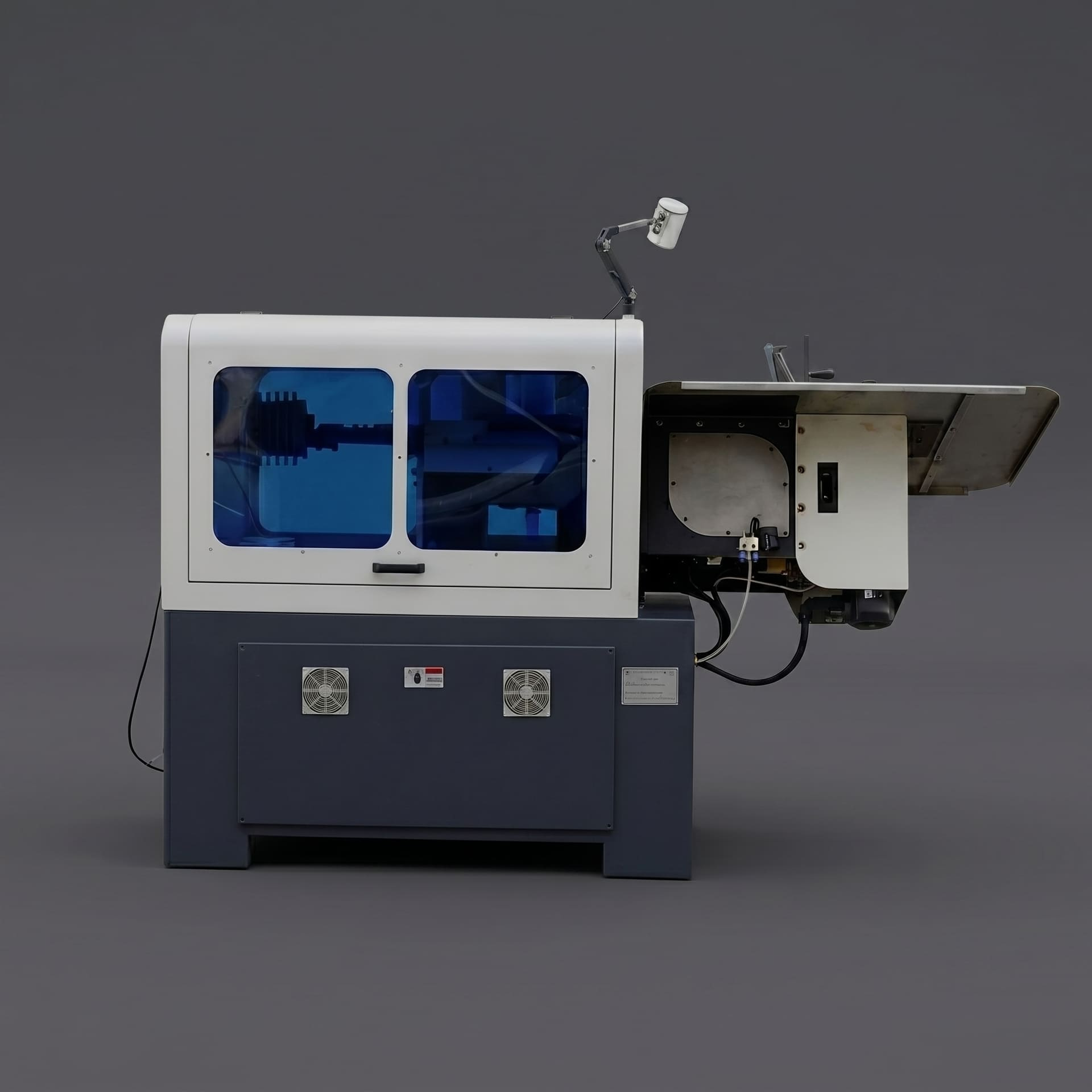

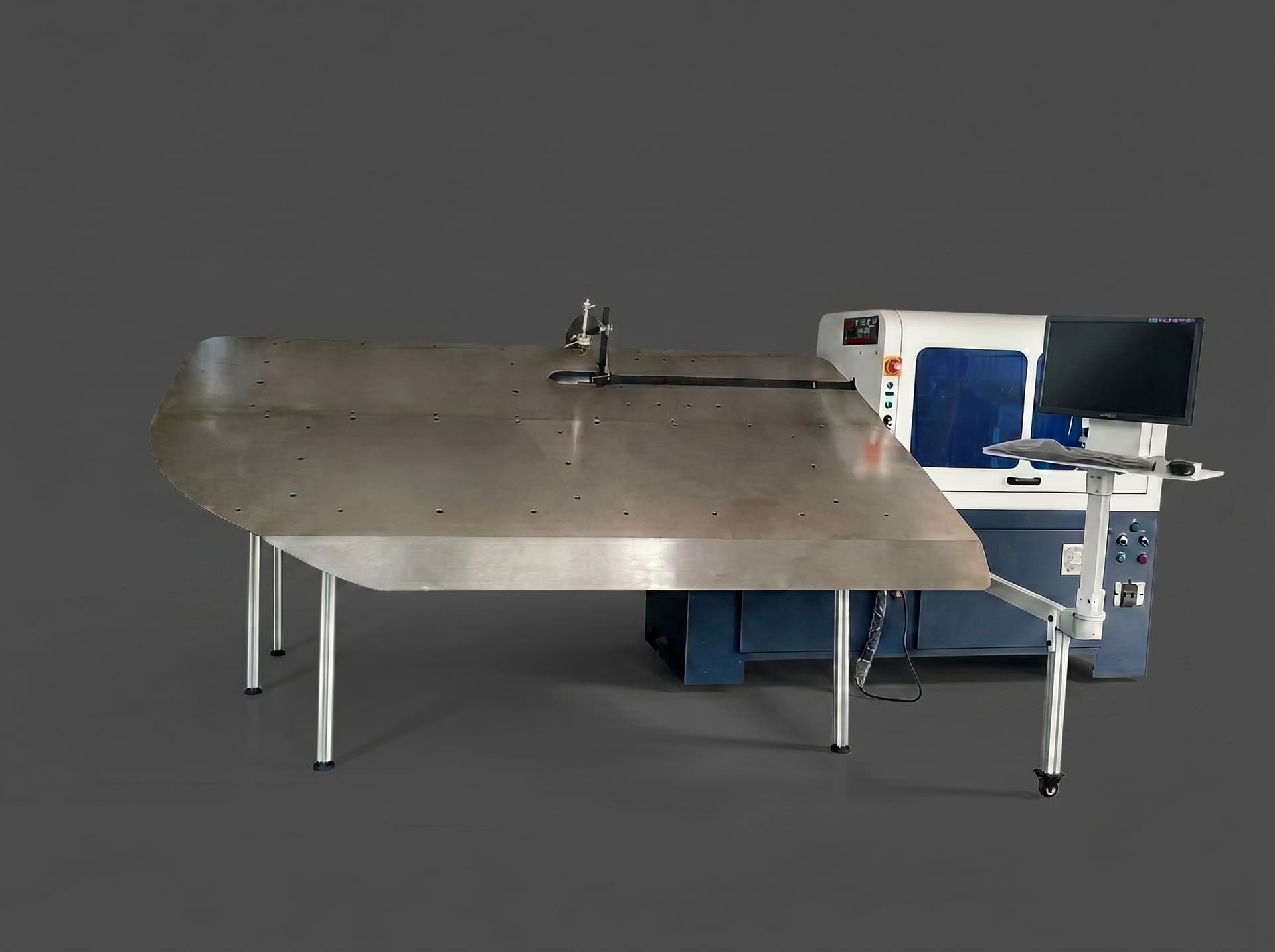

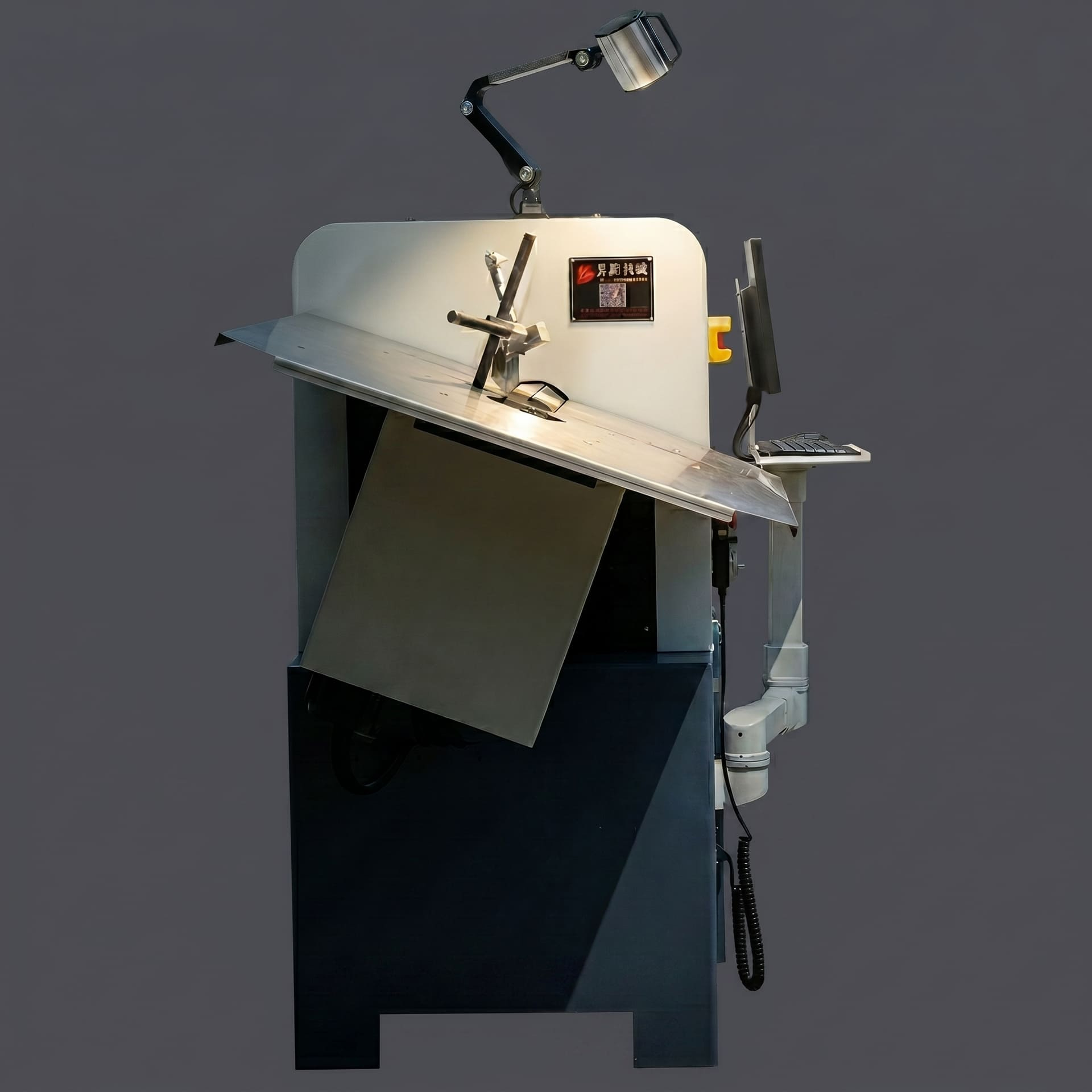

BL-2D-3800 2D CNC Wire Bending Machine

BL-2D-3800 is a compact 3-axis 2D CNC wire bending machine designed for precision bending of soft wire Φ3.0–8.0mm and hard wire Φ3.0–6.0mm. Equipped with a 6.5KW servo drive system, a 600mm processing stroke, and wire feeding speeds up to 90m/min, it delivers stable, high-speed production with ±0.1mm feeding accuracy and ±0.2° bending accuracy. The integrated feeding, bending, and cutting process improves productivity while maintaining excellent consistency. It is ideal for manufacturing automotive clips, furniture hardware, kitchen accessories, wire brackets, display fixtures, and a wide range of precision 2D wire components.

Applicable Wire Specification Soft material Φ:3.0-8.0mm; Hard material Φ:3.0-6.0mm

Number of Axes 3 Axis

Total Power 6.5KW

Processing Stroke 600mm

In Stock & Ready to Ship

Description Parameters Video

Product Advantages

3-Axis High Precision Forming

Adopts 3-axis full-servo control for precision wire feeding, angle folding, and cutting of 2D wire components, ensuring high stability and forming accuracy.

Compact & Efficient Power System

Total power 6.5KW, equipped with 2.7KW feeding motor, 1.5KW folding motor, and 2.3KW cutting/lifting motor, providing reliable power for medium-duty wire forming.

Premium Brand Components

Equipped with Sanyo/Inovance servo motors, NSK/IKO bearings, and other international top brands; 1000KG robust frame ensures long-term stable operation.

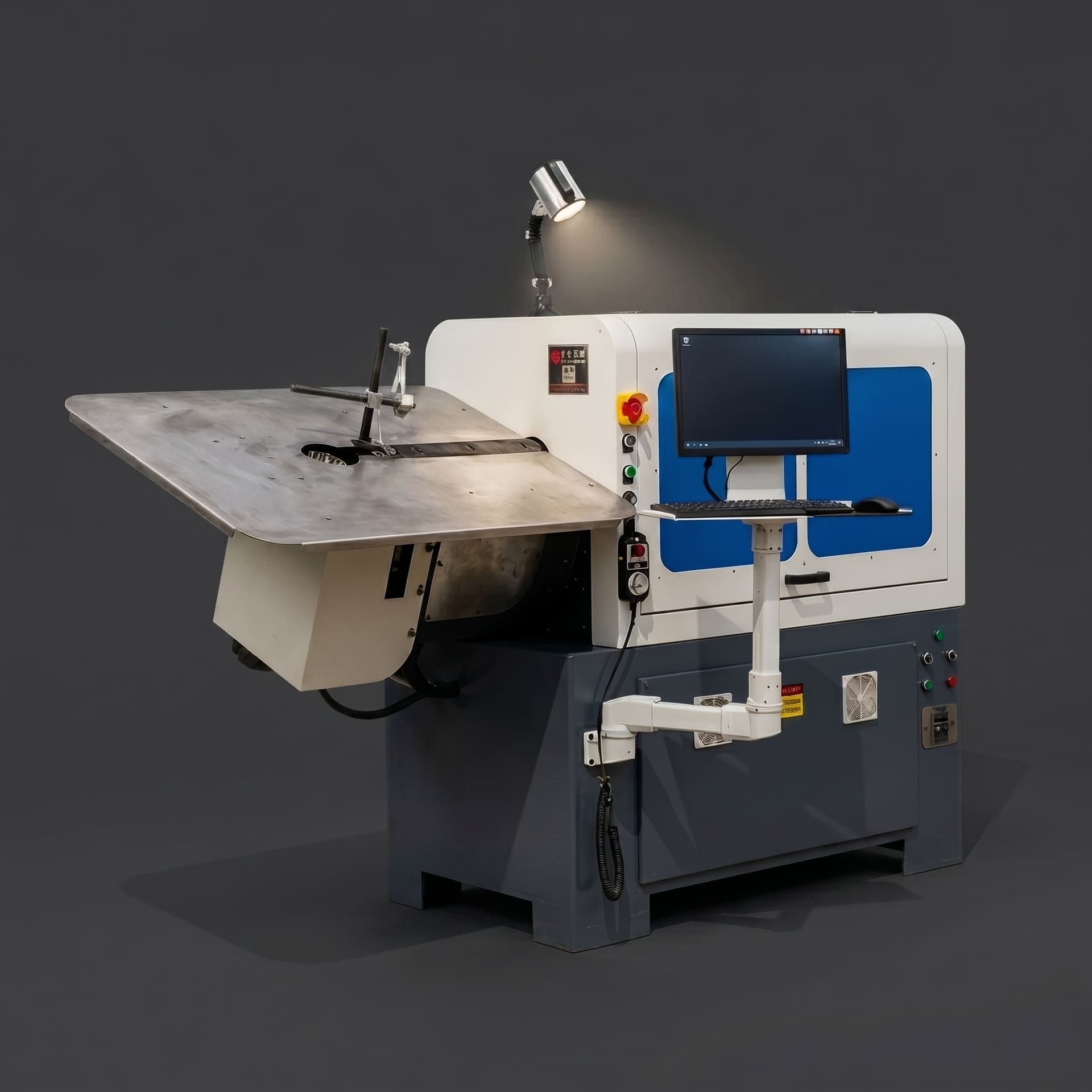

BL-2D-3800 2D Wire Forming Machine by Belan

The BL-2D-3800 2D wire forming machine by Belan features 3-axis CNC control for precision wire feeding, angle folding, and cutting of 2D wire components. It handles soft wire specifications from Φ3.0mm to Φ8.0mm and hard wire from Φ3.0mm to Φ6.0mm, with a 600mm processing stroke. The machine adopts 3-axis full-servo control for stable, high-accuracy forming, backed by a compact 6.5KW power system with dedicated motors for feeding, folding, and cutting. It is built with premium components including Sanyo/Inovance servo motors (Japan/China), NSK/IKO bearings (Japan), and a 1000KG robust frame for long-term reliability.

Suitable for multi-specification wires: Soft wire Φ3.0-8.0mm / hard wire Φ3.0-6.0mm for automotive and hardware components
Integrated forming process: Automatic feeding → angle folding → cutting → finished product output with high efficiency
Flexible parameter adjustment: 3-axis full servo control, folding angle, feeding length and cutting position are freely adjustable for customized production

Technical Specifications

Action

Machine in Operation

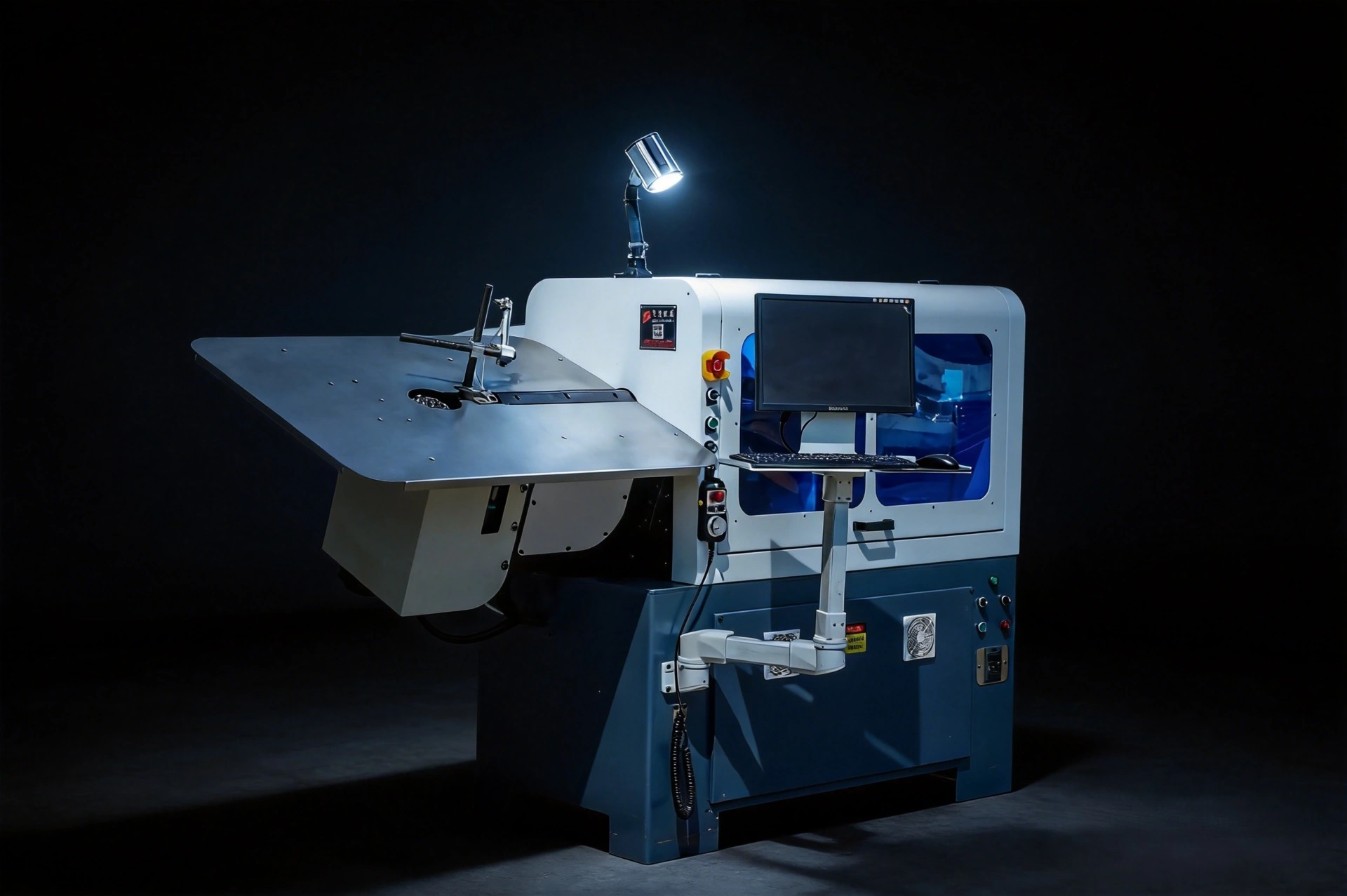

BL-2D-3800

Belan Wire Bending Machine 2D-3800 Small Batch 5.0mm Wire Bending 2D Wire Bending Machine 3.0-8.0mm

Capabilities

Application Samples

The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
