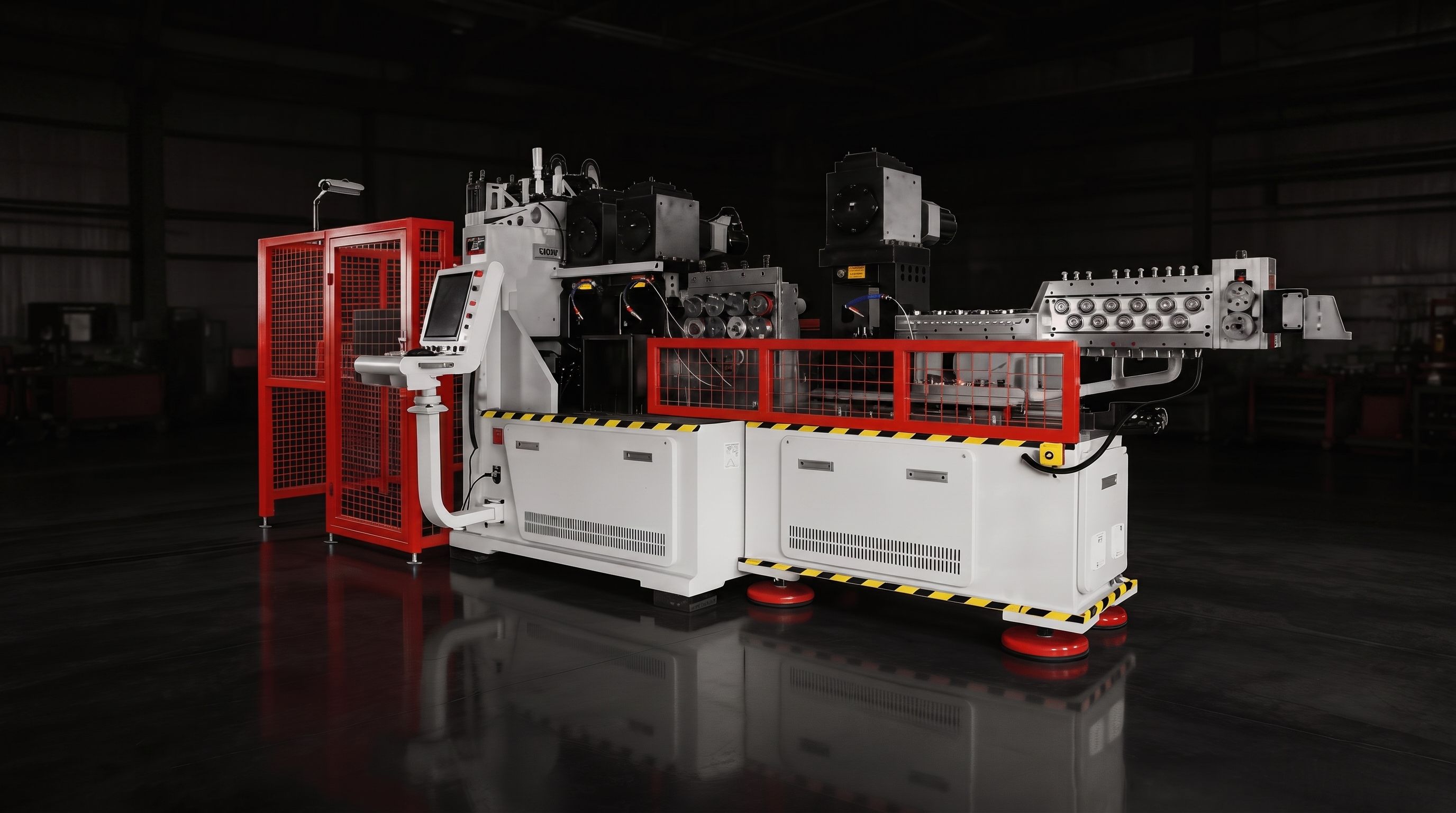

BL-YG-12A 12-Axis CNC Wiper Linkage Arm Forming Machine
The BL-YG-12A is a fully automatic 12-axis CNC wiper linkage arm forming machine specifically designed for manufacturing automotive wiper linkage arms from flat steel wire. Supporting 4×9mm and 4×12mm flat wire materials, it integrates automatic feeding, bending, punching, twisting, cutting, and forming into a single production cycle to maximize efficiency and product consistency. Powered by a 55.9KW servo system and built with a 16,000KG heavy-duty frame, the machine delivers exceptional precision, stability, and long-term reliability. It is the ideal solution for high-volume production of automotive wiper linkage arms and other complex flat wire components requiring multiple forming operations.
Product Advantages
12-Axis High Precision Forming
Adopts 12-axis full-servo control for complex bending, torsion, punching, and cutting of long arm components, ensuring high stability and forming accuracy.
Super Heavy-Duty & Powerful
Total power 55.9KW, equipped with 7.5KW×3 punching motors, 7.5KW feeding motor, 4.4KW×2 turning motors, providing strong power for heavy-duty arm processing.
World-Famous Brand Components
Equipped with Yaskawa, NEUGART, HIWIN, Schneider and other international top brands; 16000KG heavy frame ensures long-term stable heavy-load operation.
.png?imageMogr2/format/webp)

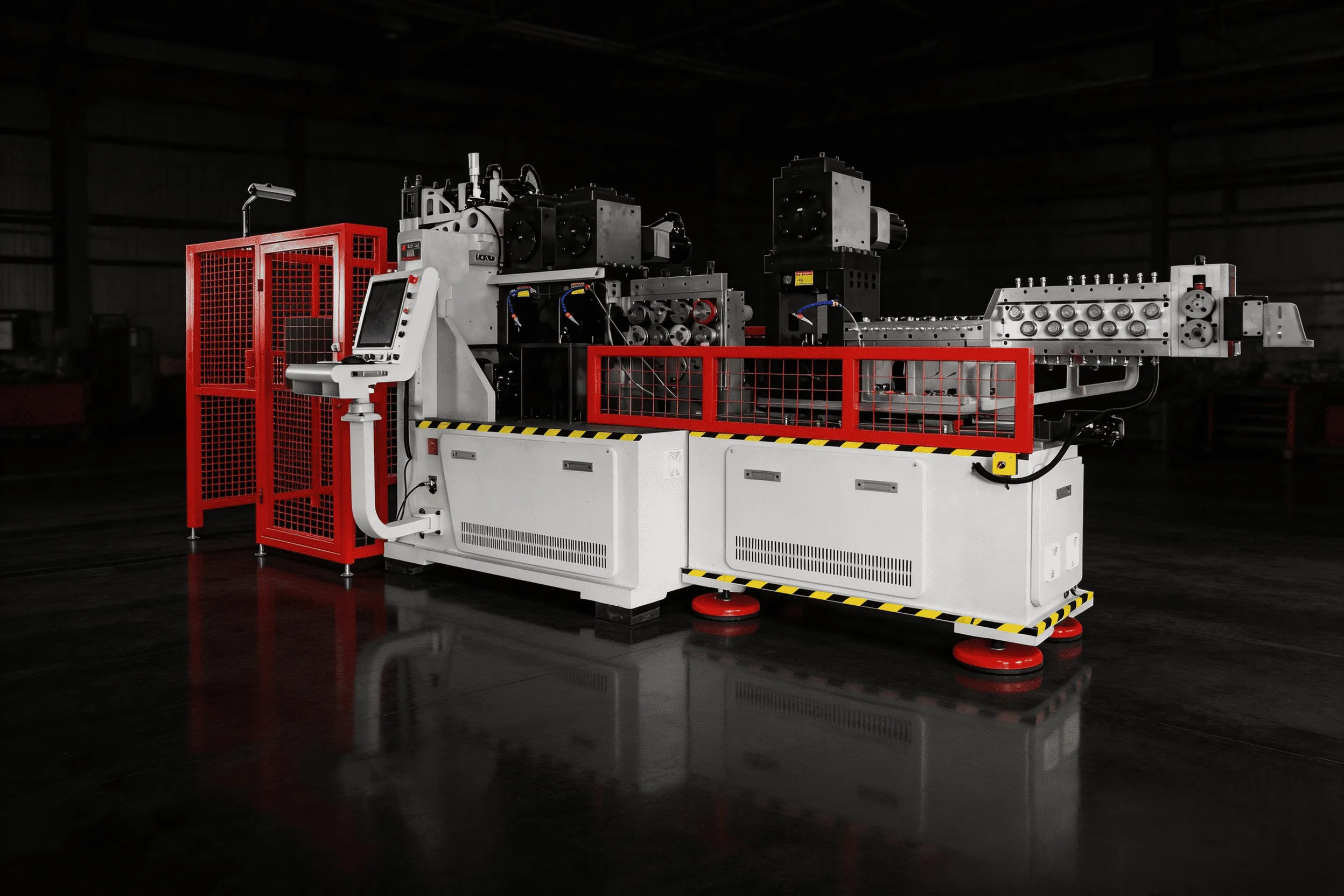

BL-YG-12A
BL-YG-12A: Wiper linkage arm forming machine, 12-axis CNC, thick wire 4mmx9mm/4mmx12mm, 55.9KW total power, 16000KG weight.
-
Suitable for special arm flat materials: 4mm×9mm / 4mm×12mm flat steel for automotive arm components
-
Integrated forming process: Automatic feeding → bending → punching → cutting → inner torsion → finished product output with minimal labor
-
Flexible parameter adjustment: 12-axis full servo control, bending angle, stroke and punching position are freely adjustable for customized arm production
Technical Specifications
Technical Data
Parts Brand & Origin
Machine in Operation
BL-YG-12A
Wiper arm all-in-one bender Wiper Arm Manufacturing Equipment Integrated Wiper Arm Production Line
Application Samples
The Automotive Bending Machines are designed for high-precision metal wire and component forming, specializing in custom bent parts such as automotive wiper linkages and other structural auto components.
.png?imageMogr2/format/webp)
.jpg?imageMogr2/format/webp)
.jpg?imageMogr2/format/webp)
.jpg?imageMogr2/format/webp)
