Precision
Machinery
Discover our comprehensive range of advanced wire bending and busbar processing solutions, engineered for unparalleled accuracy and efficiency.
Enameled
Copper Wire Bending Equipment
Designed for high-efficiency production, this advanced equipment features a rotary turret structure and integrates bending, coiling, and enamel stripping functions. It ensures exceptional precision with a feeding accuracy of ±0.1mm, supports simultaneous 4-in-1 processes, and enables seamless 100% production traceability via MES and cloud integration.
Rotary Turret Structure
The equipment adopts a rotary turret structure: 3D products are formed by turret rotation while the wire remains stationary, greatly improving production stability.
Integrated Bending & Coiling
It integrates Bending and coiling functions, and is equipped with dedicated tooling for enameled wire, enabling fast and convenient bending while reducing surface crush damage to products.
Enamel Stripping Mechanism
The independently controlled enamel stripping mechanism allows free adjustment of stripping depth and length.
Waste Extraction
The machine is fitted with an automatic waste extraction system and a scrap collection box.
4-in-1 Synchronous Processes
Straightening, enamel removal, dust extraction and 3D bending (completed by the rotary turret) can be carried out simultaneously.
MES & Cloud Sharing
It supports docking with customer MES systems and cloud-based process data sharing, with 100% production data traceability.
Precision Accuracy
The machine achieves a feeding accuracy of ±0.1mm over 300mm and a bending angle accuracy of 90°±0.2°.
Belan Wire Bending Machine
High precision ±0.1mm, stable performance with full after-sales service.
Enameled Copper Wire Bending Equipment
Compare Machine Specifications
Select up to three machines to compare their technical specifications side by side.
Select up to 3 machines for comparison
Soft material Φ1.0mm-4.0mm；Hard material Φ1.0mm-2.5mm
-
10 Axis
9.75KW
300mm±0.1mm
-
380V/50Hz/3Ph
2000KG
3500mm×1800mm×1600mm
100KG
Soft wire: Φ1.0–5.0mm Hard wire: Φ1.0–3.0mm
Not specified in the document
10 Axes
11.2KW
±0.1mm / 300mm
Not specified in the document
380V / 50Hz / 3Ph
2500KG
3800×2000×1700mm
150KG
Global Applications
Our machinery powers production lines across diverse sectors worldwide, delivering consistent quality and reliability.

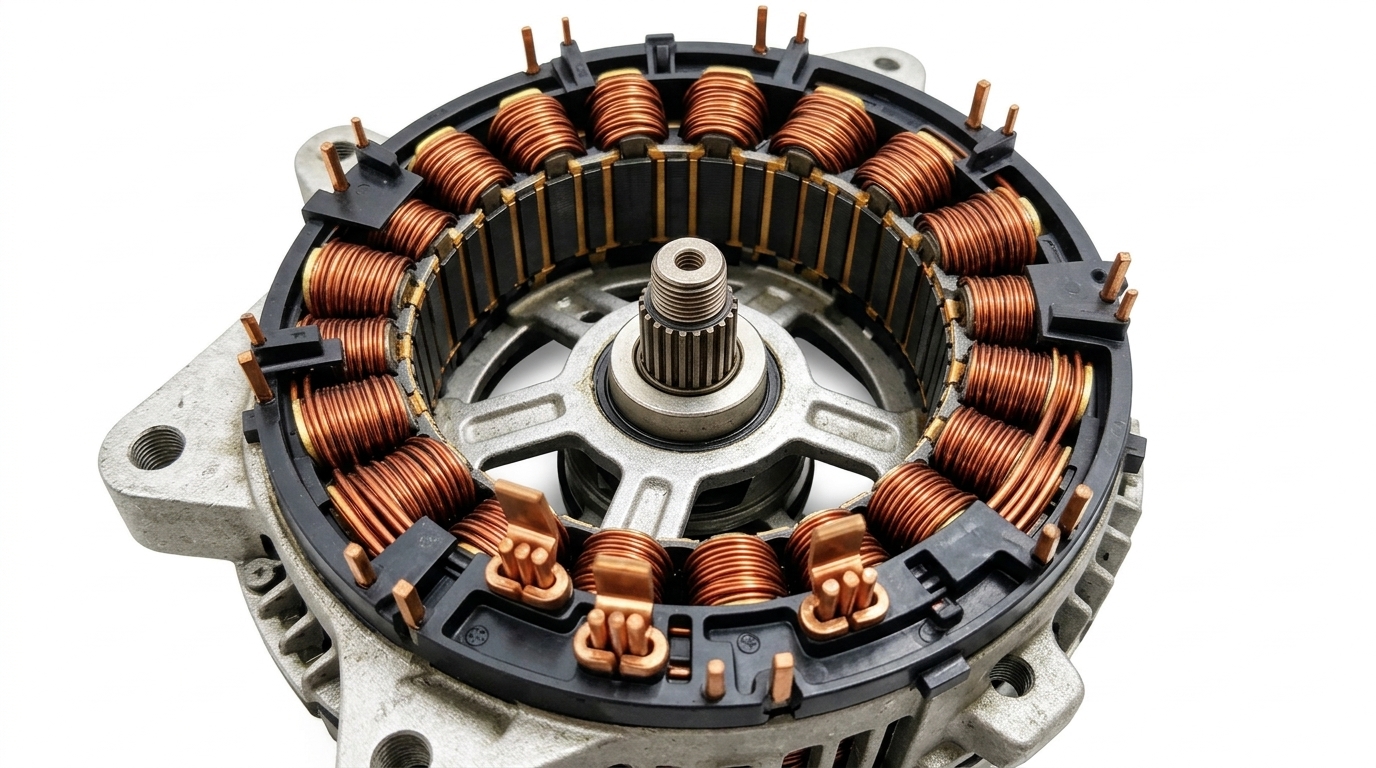

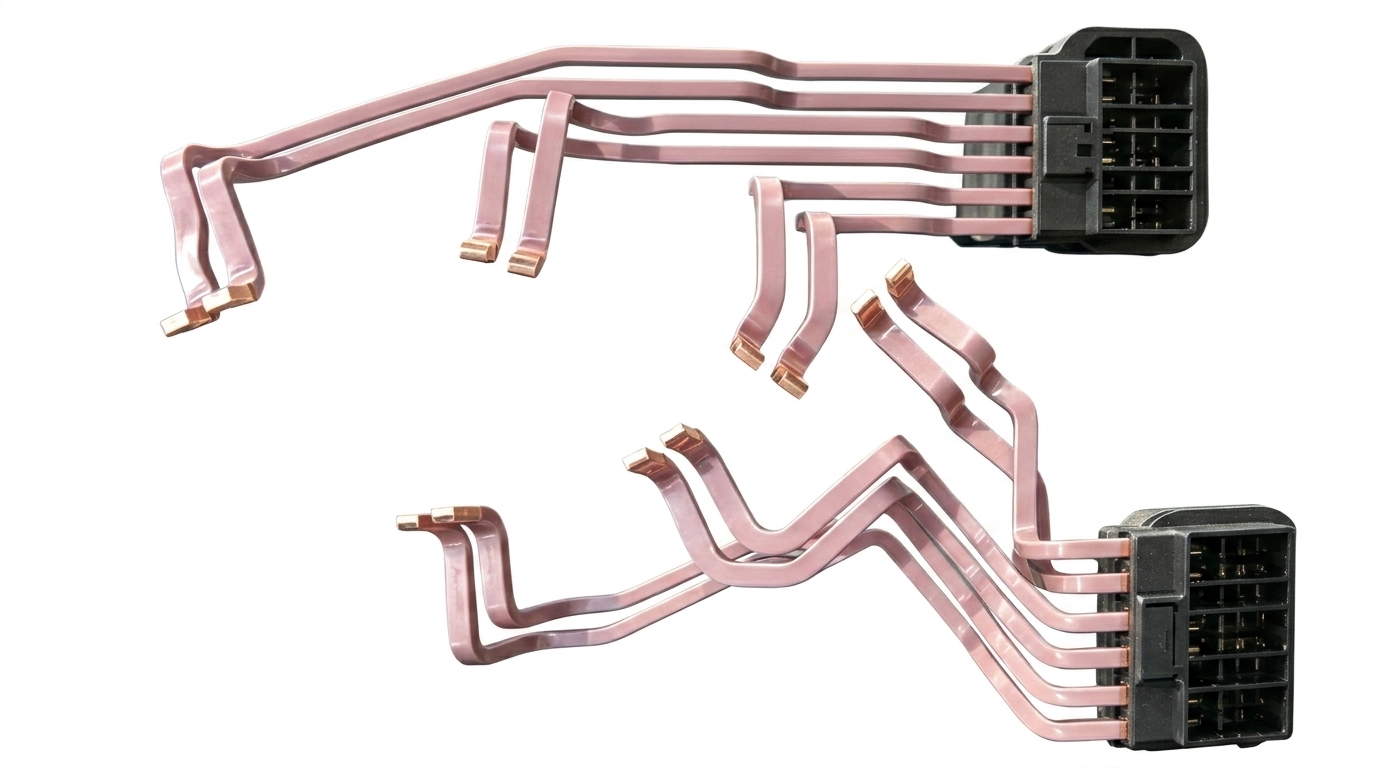

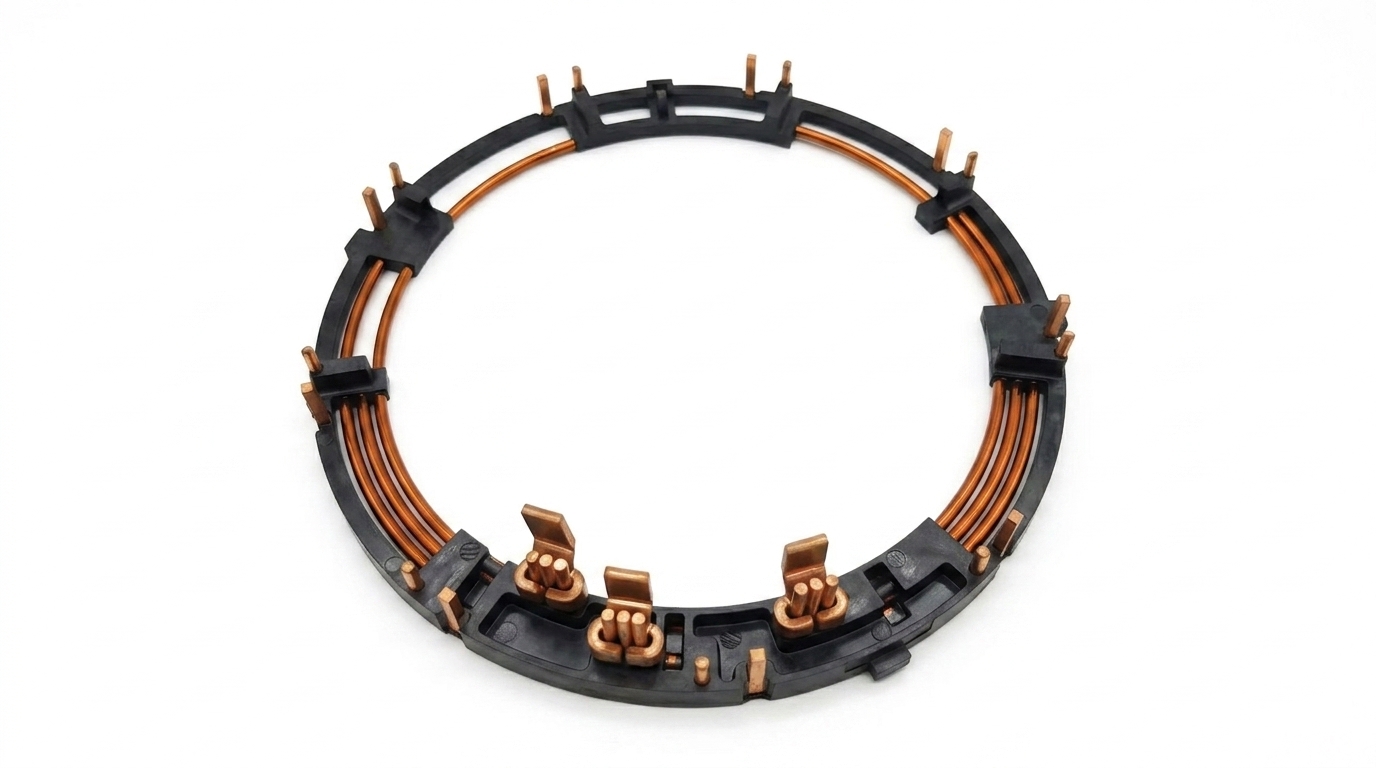

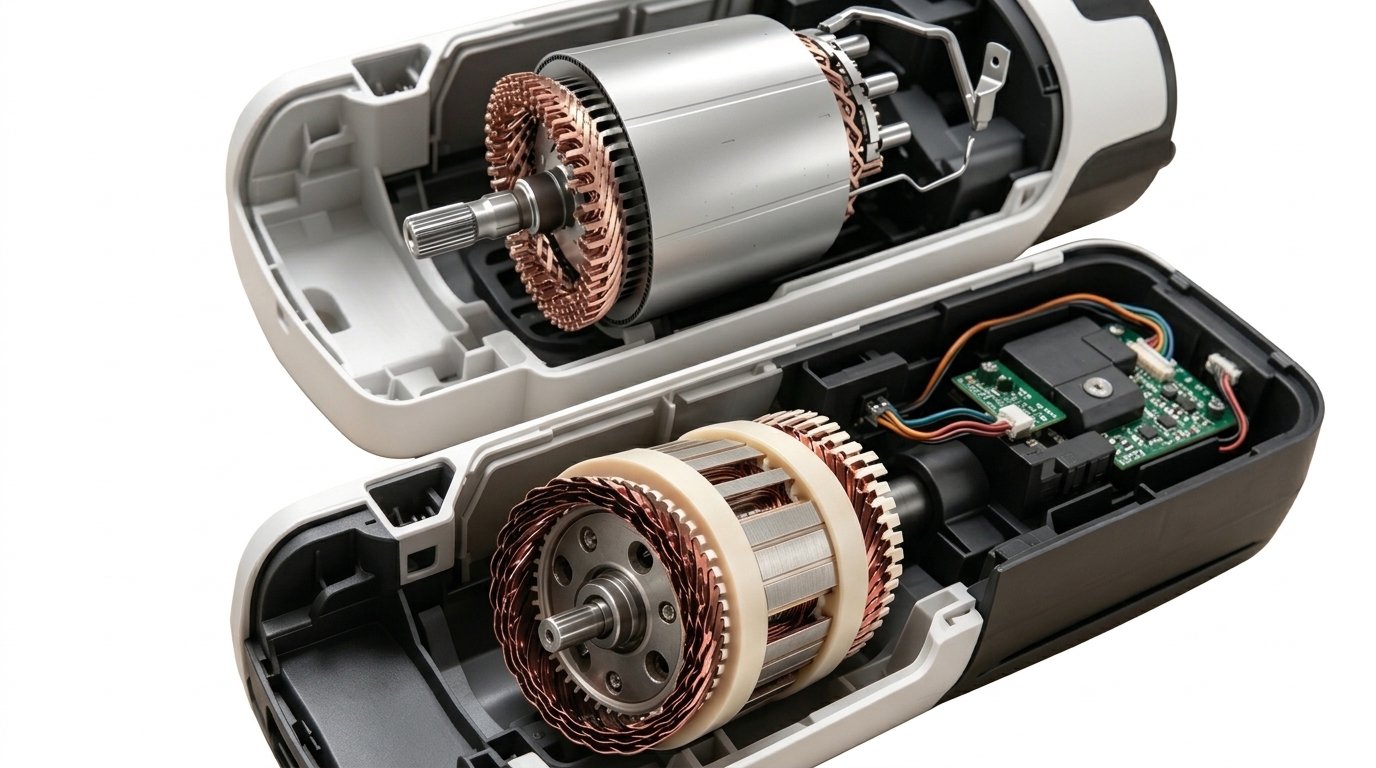

New Energy Vehicle Conductive Copper Busbar
Discover tailored solutions for new energy vehicle manufacturing.
Automobile
Discover tailored solutions for automobile manufacturing.

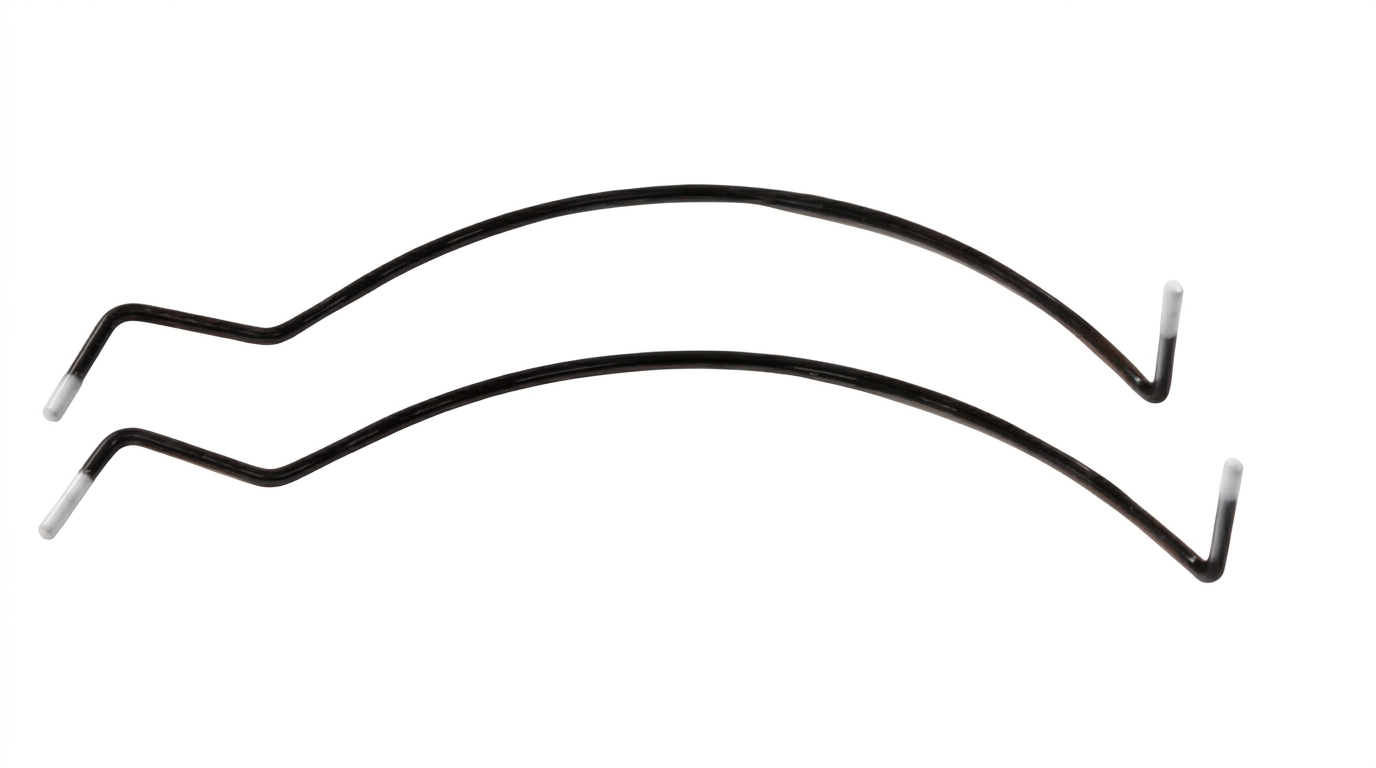

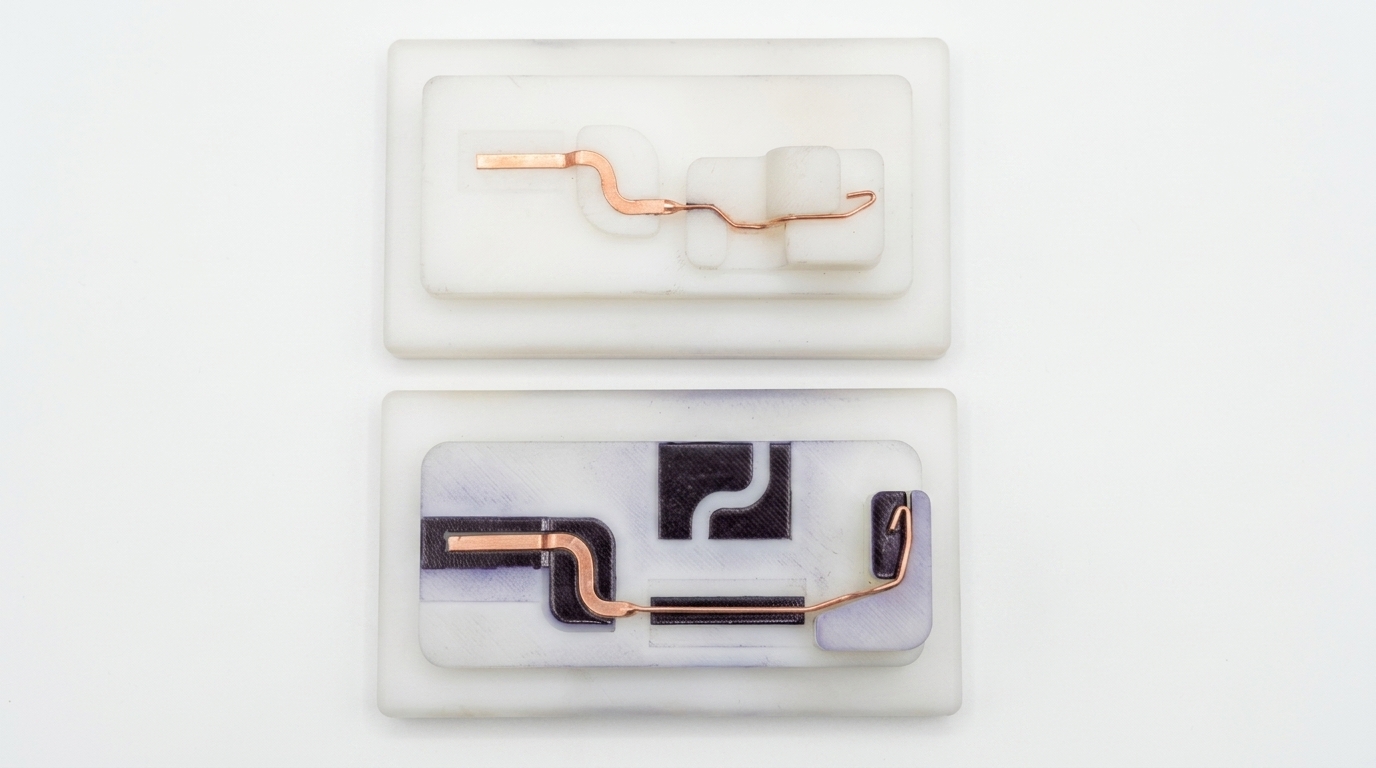

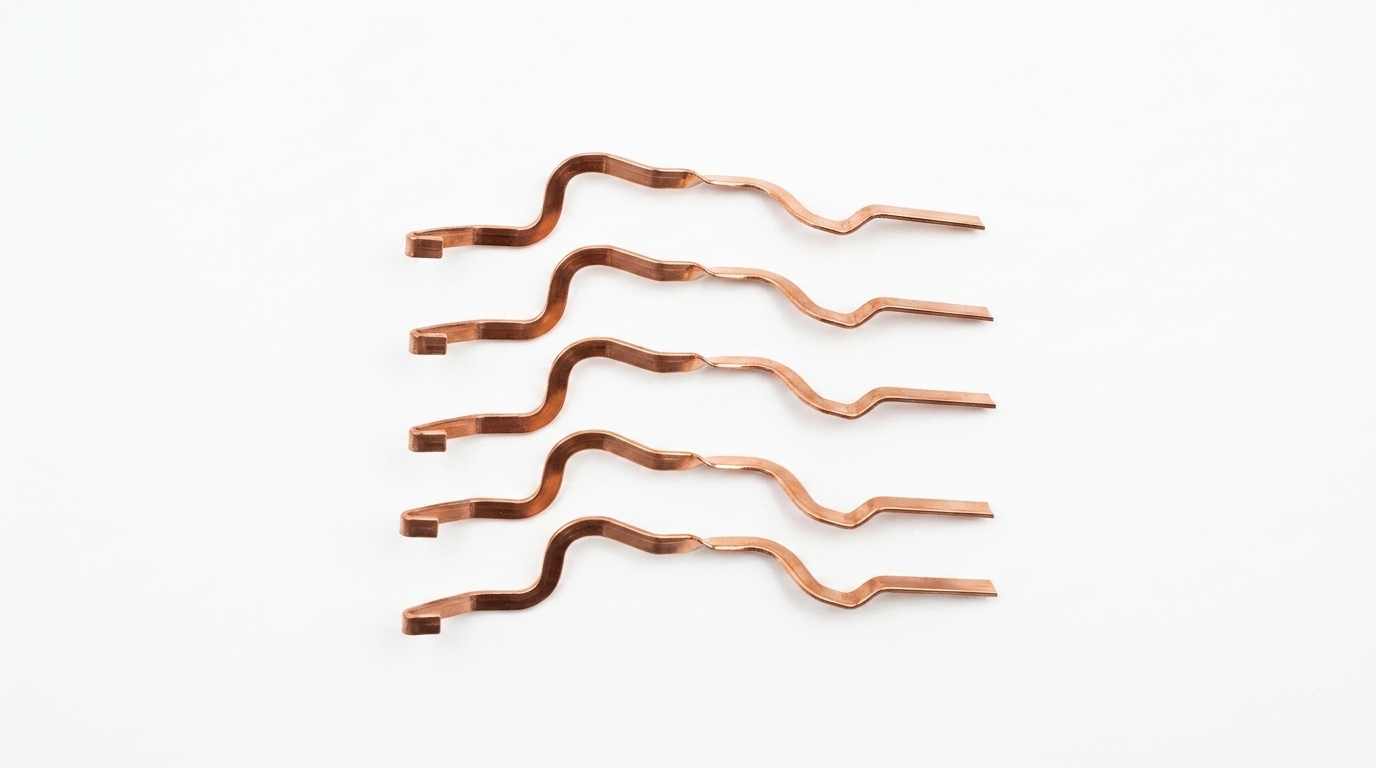

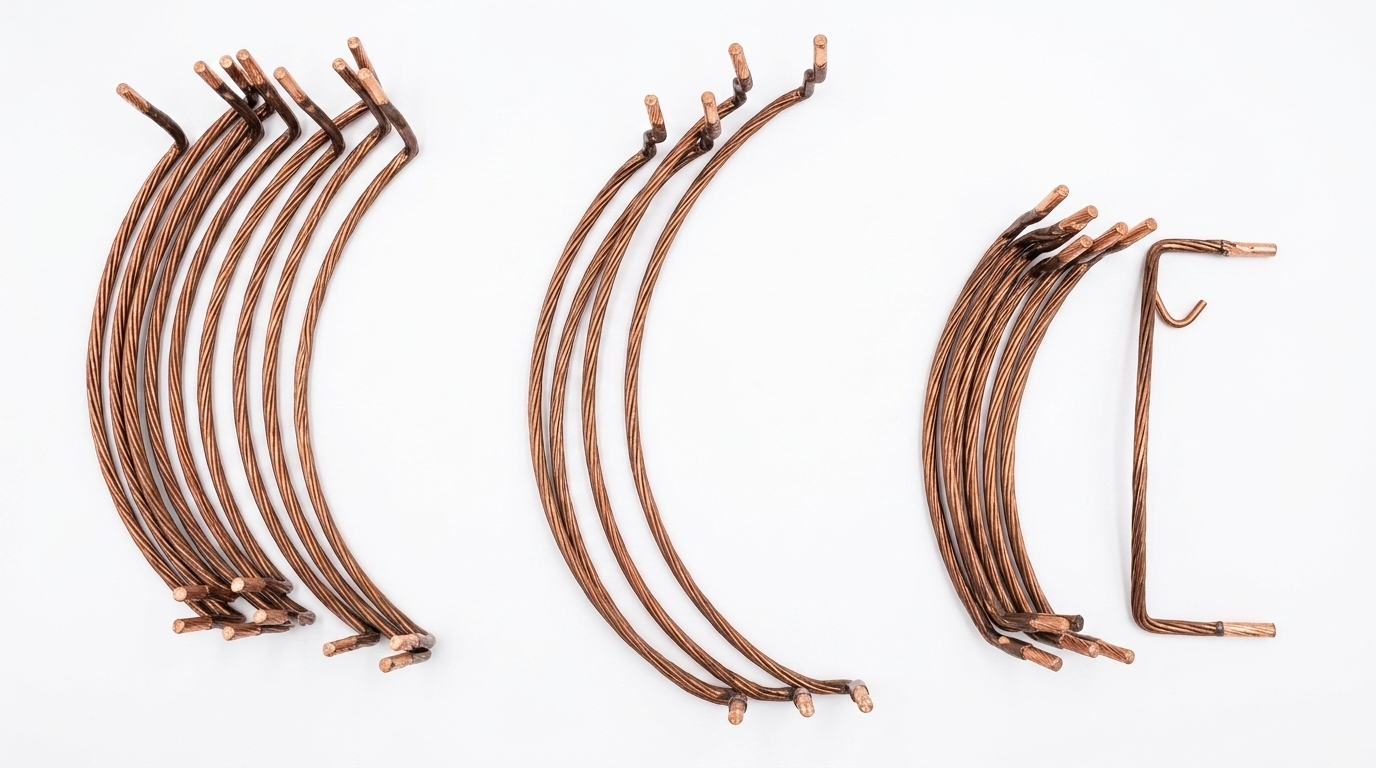

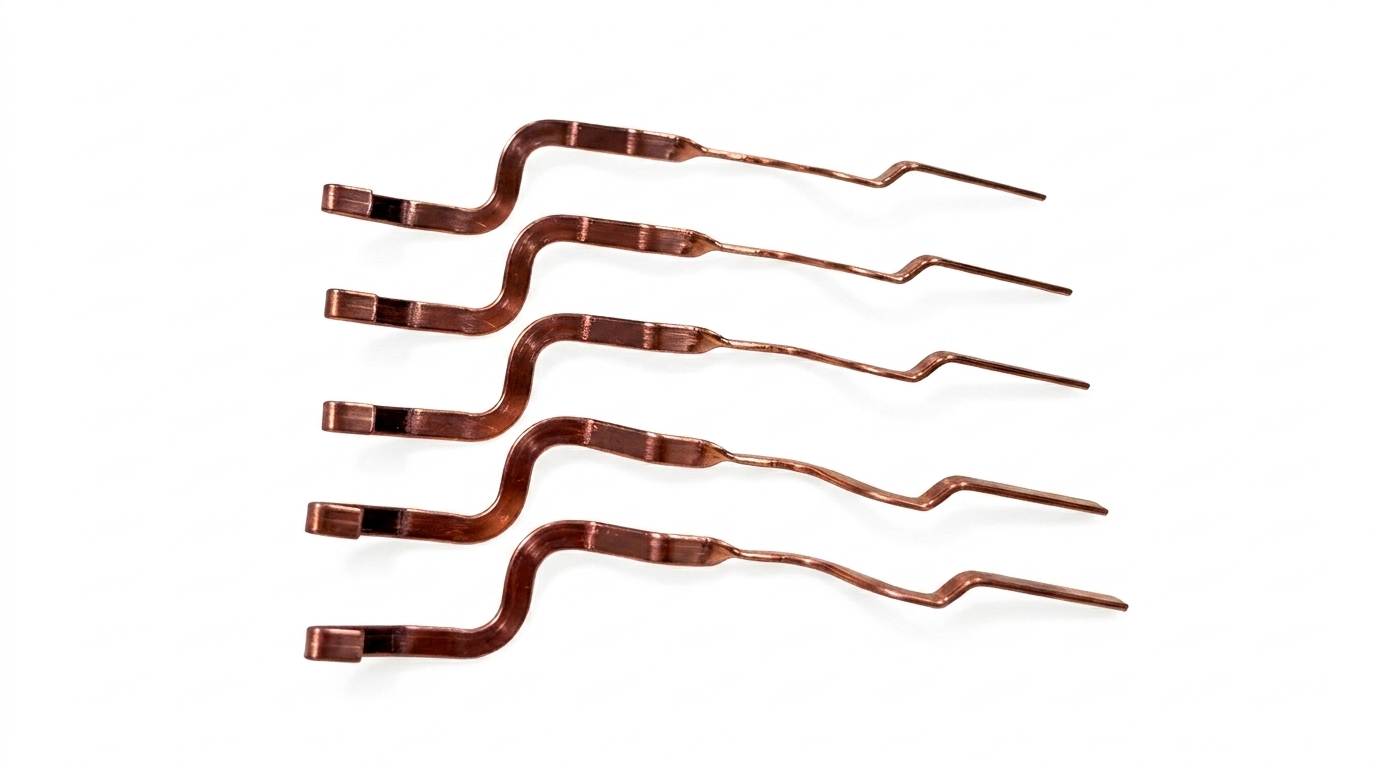

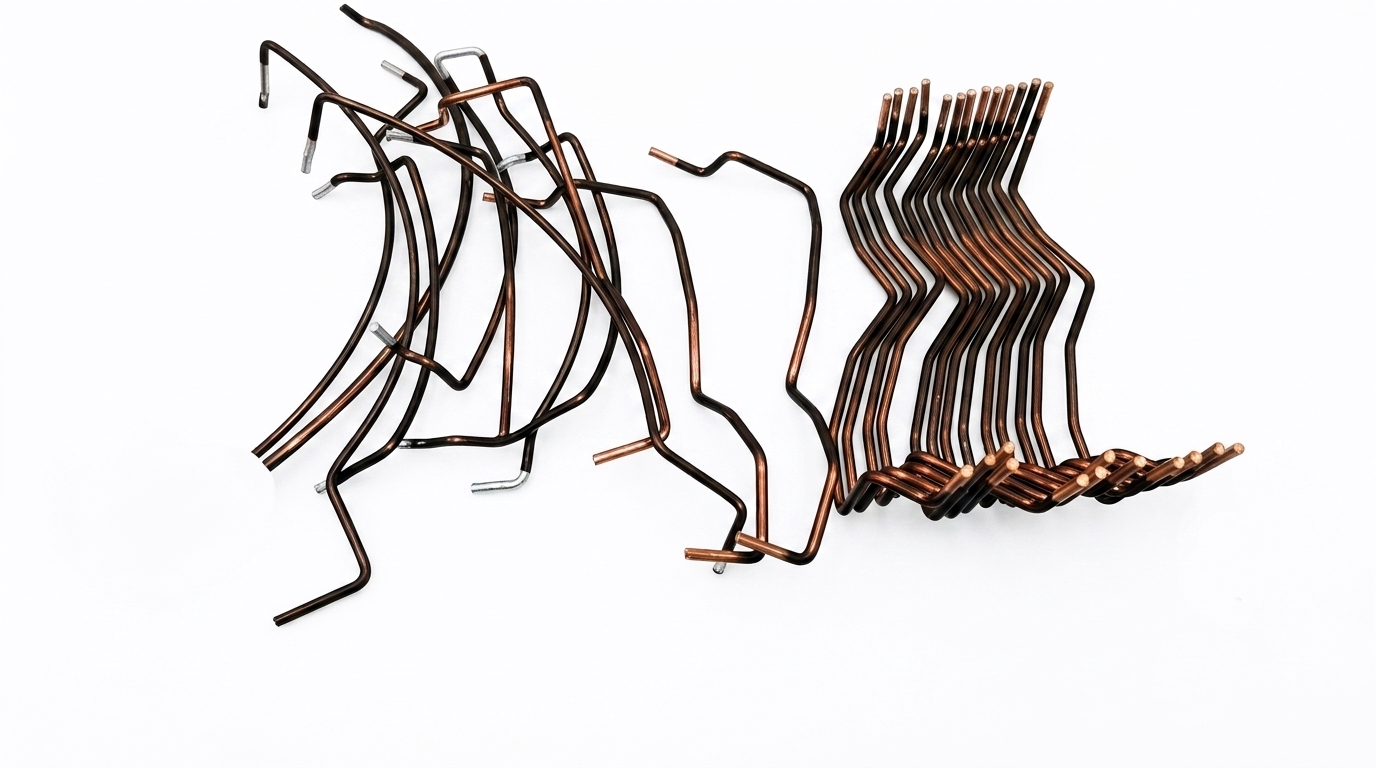

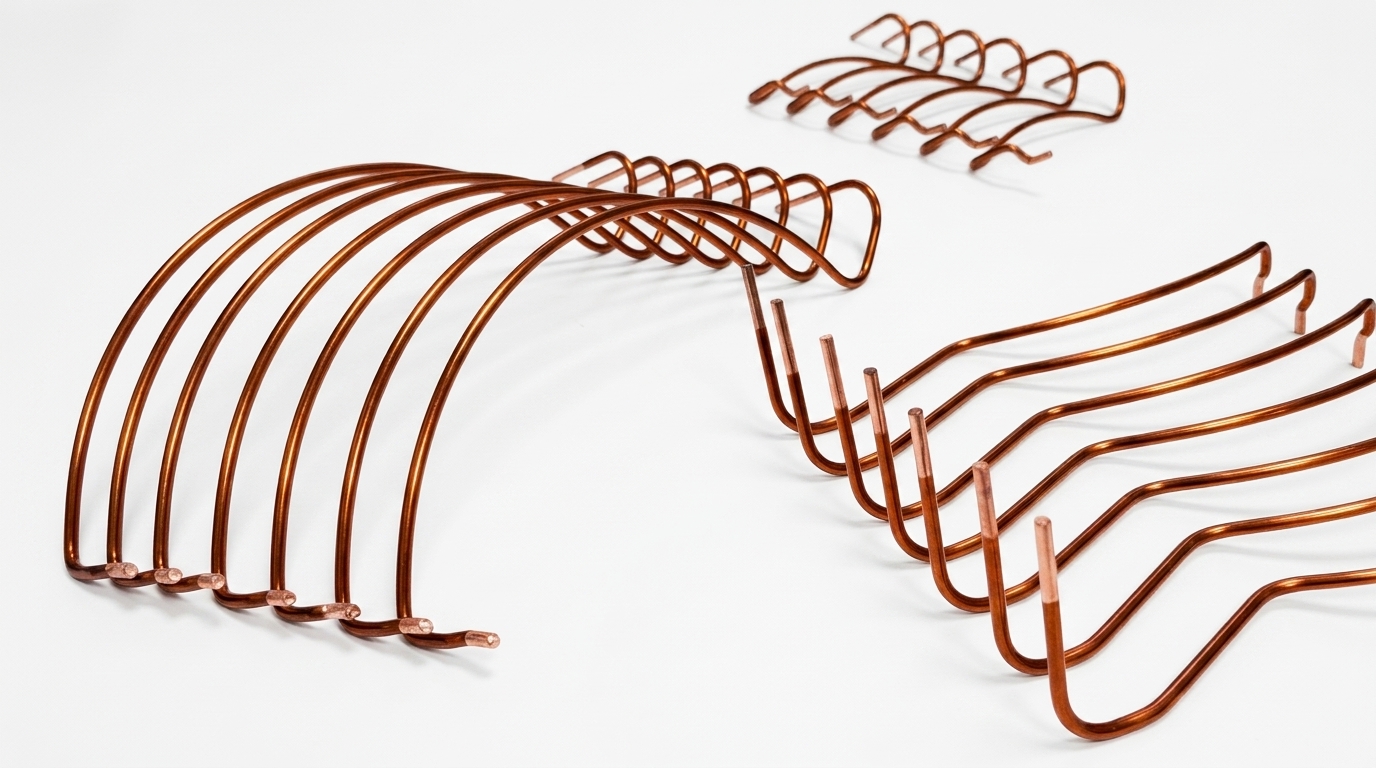

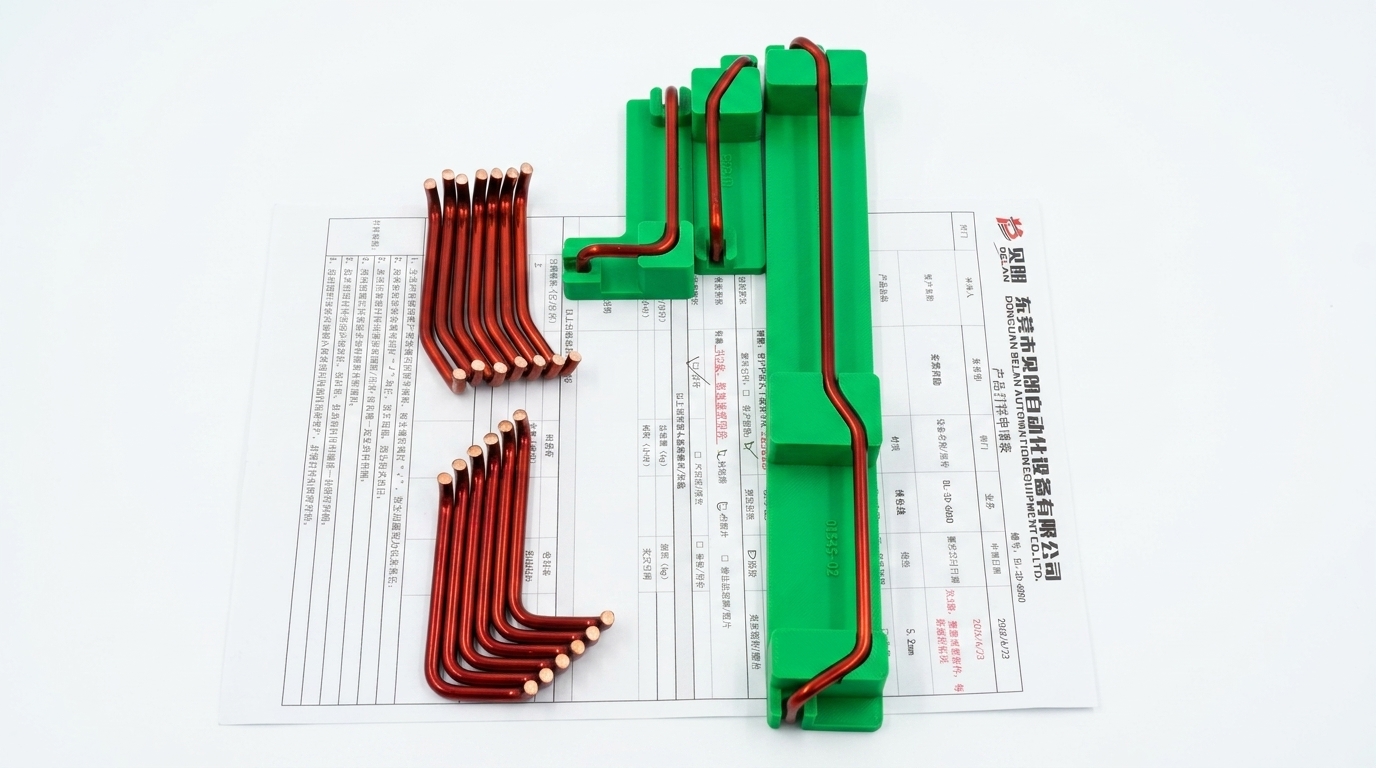

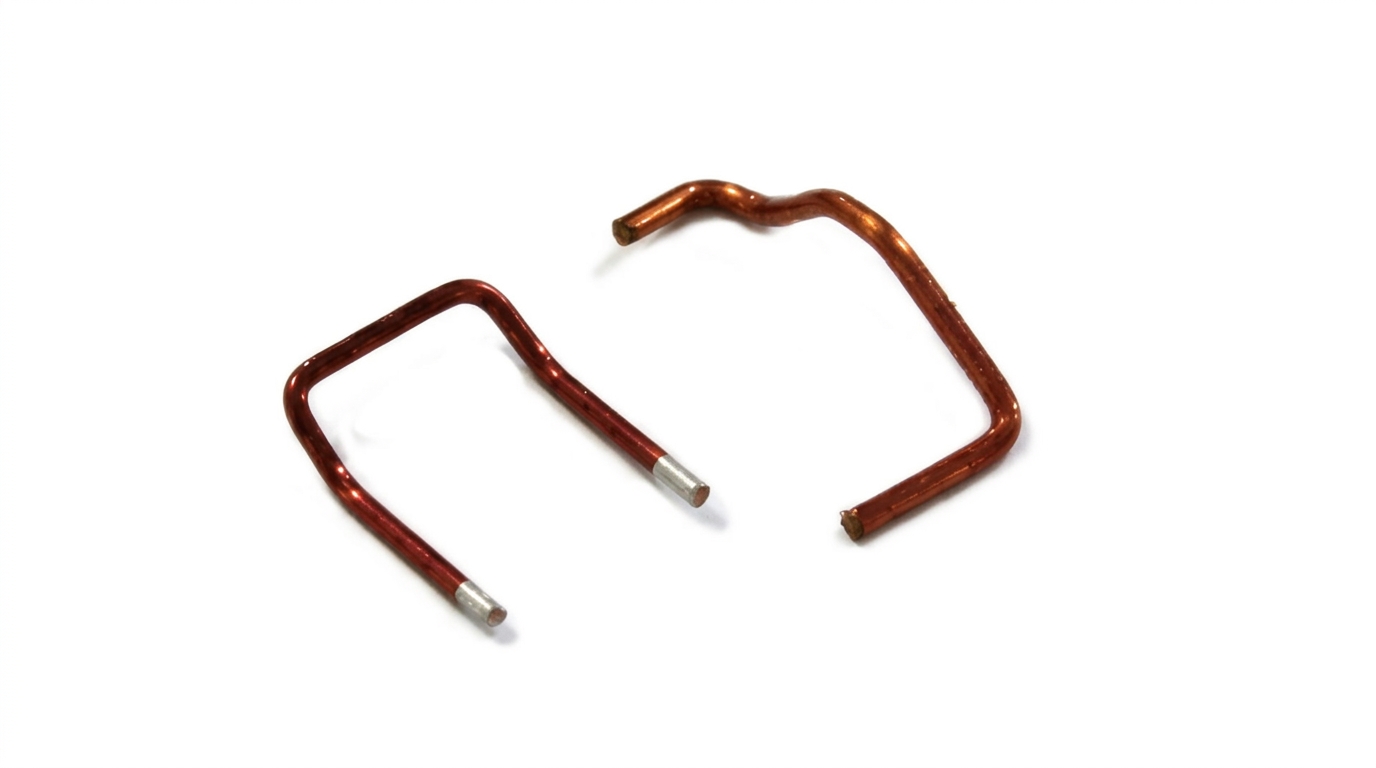

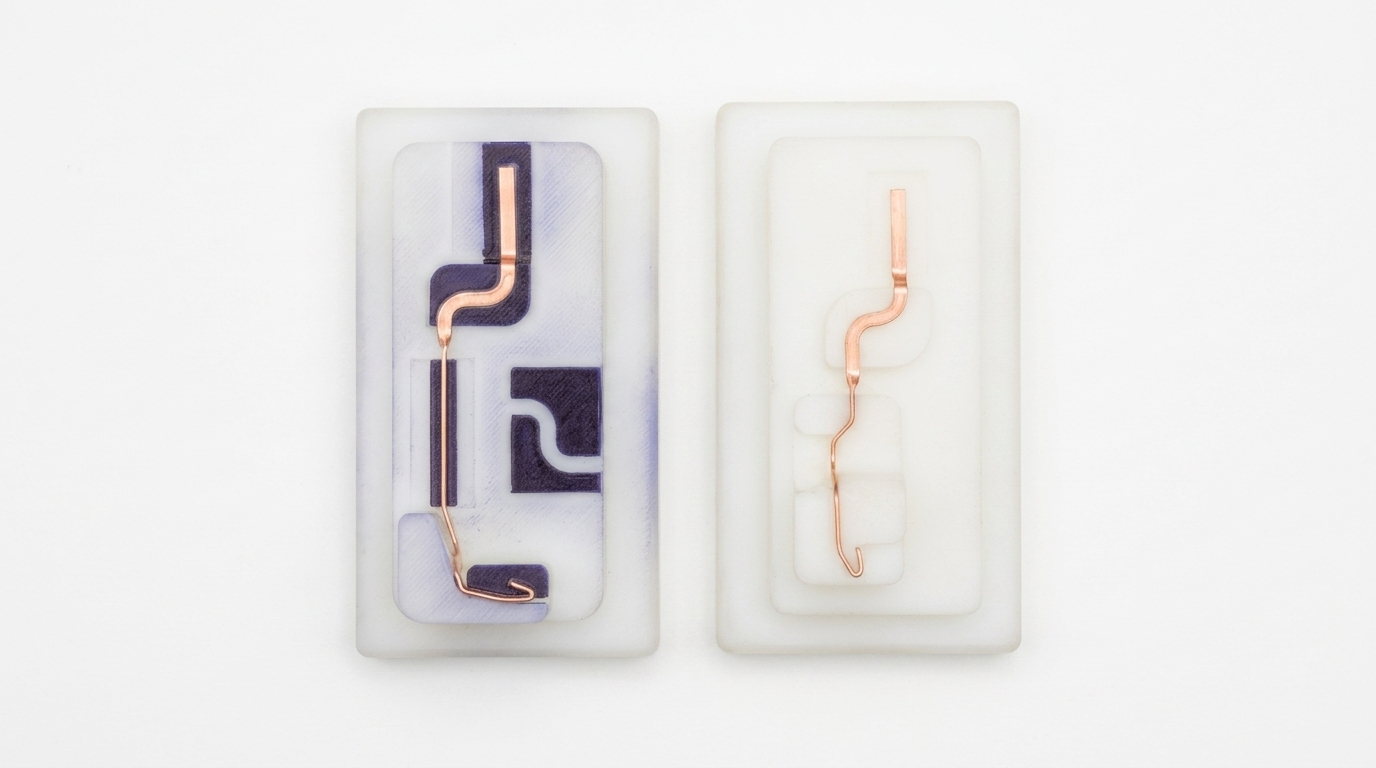

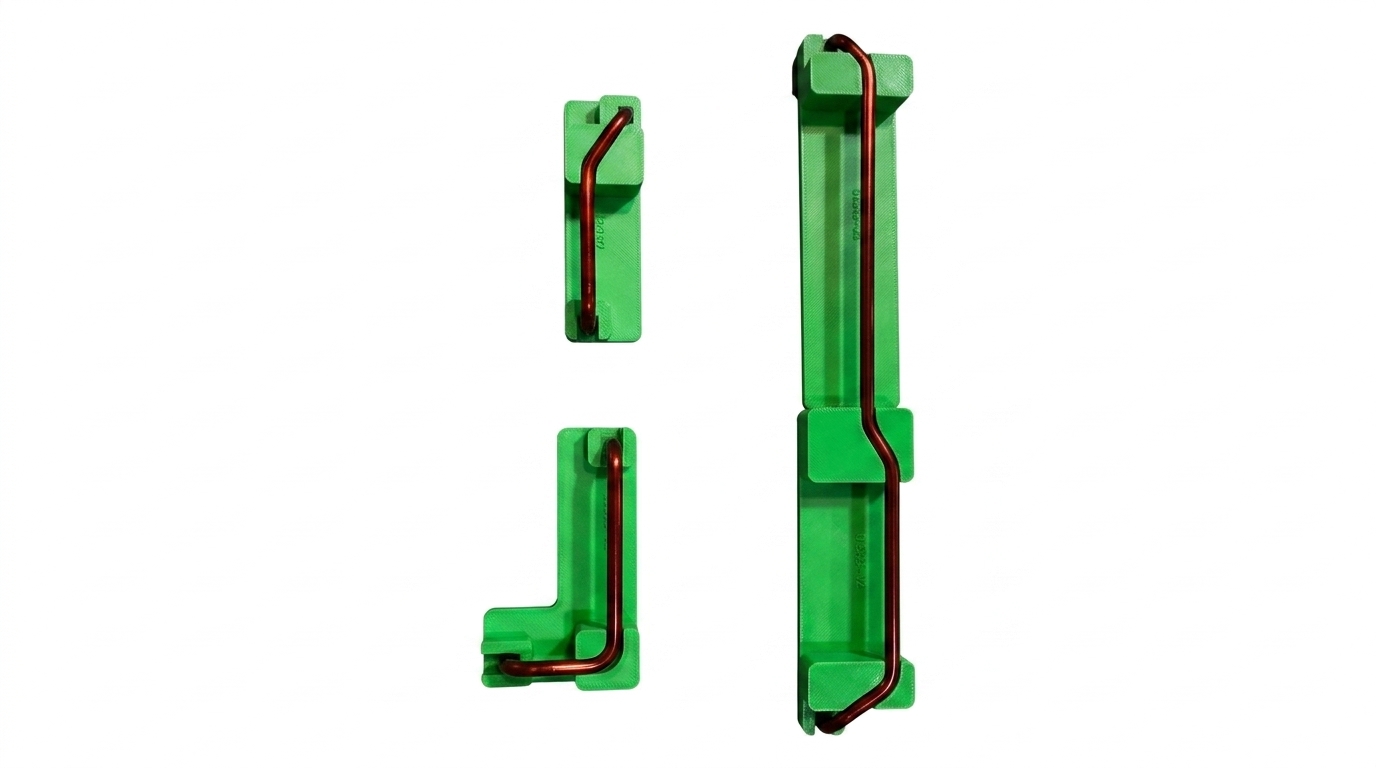

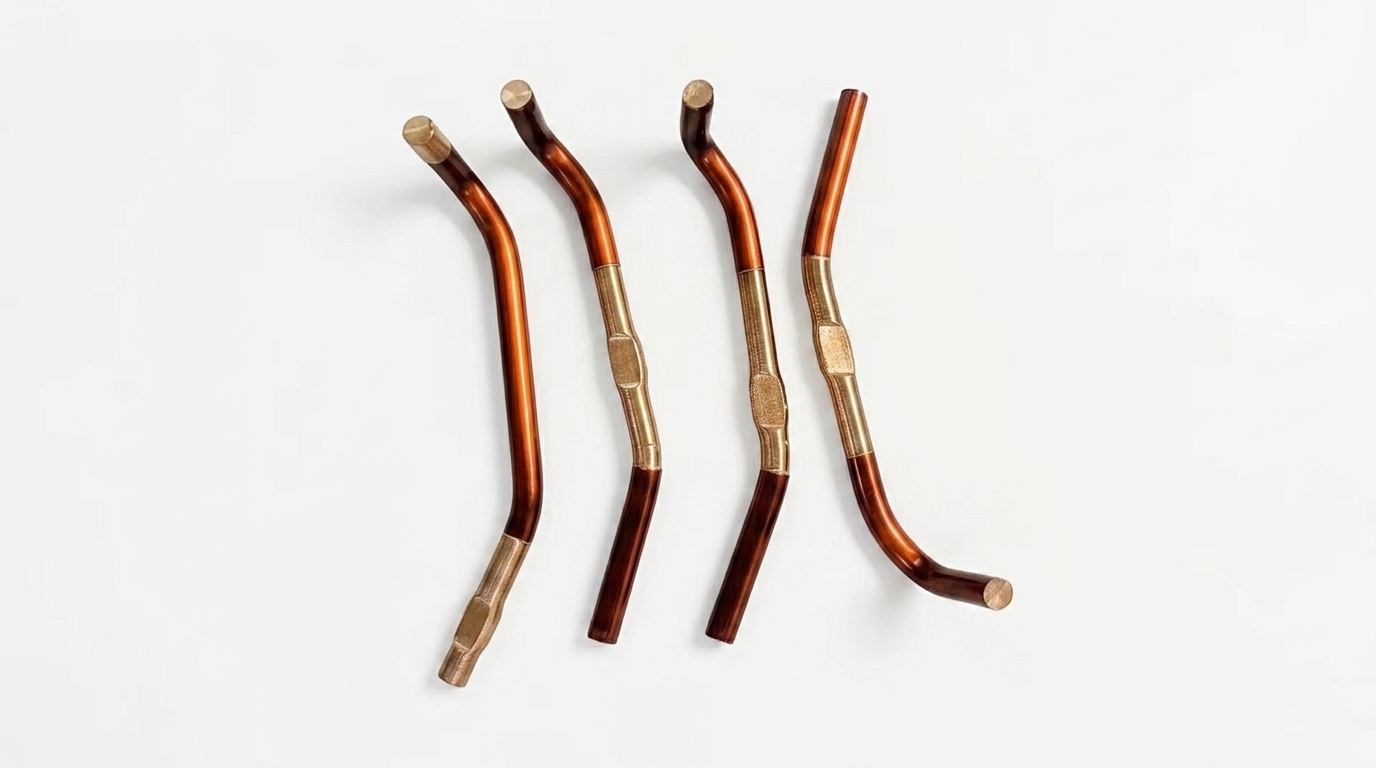

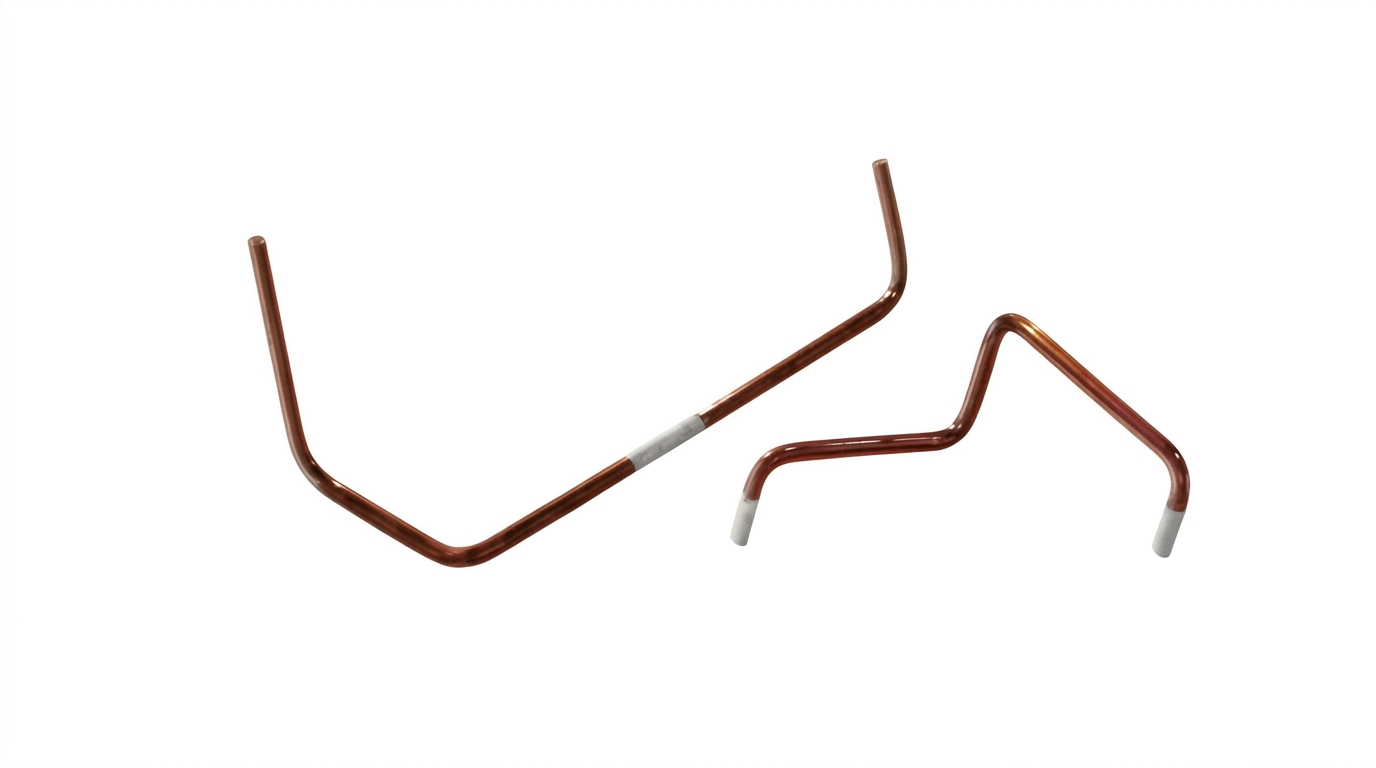

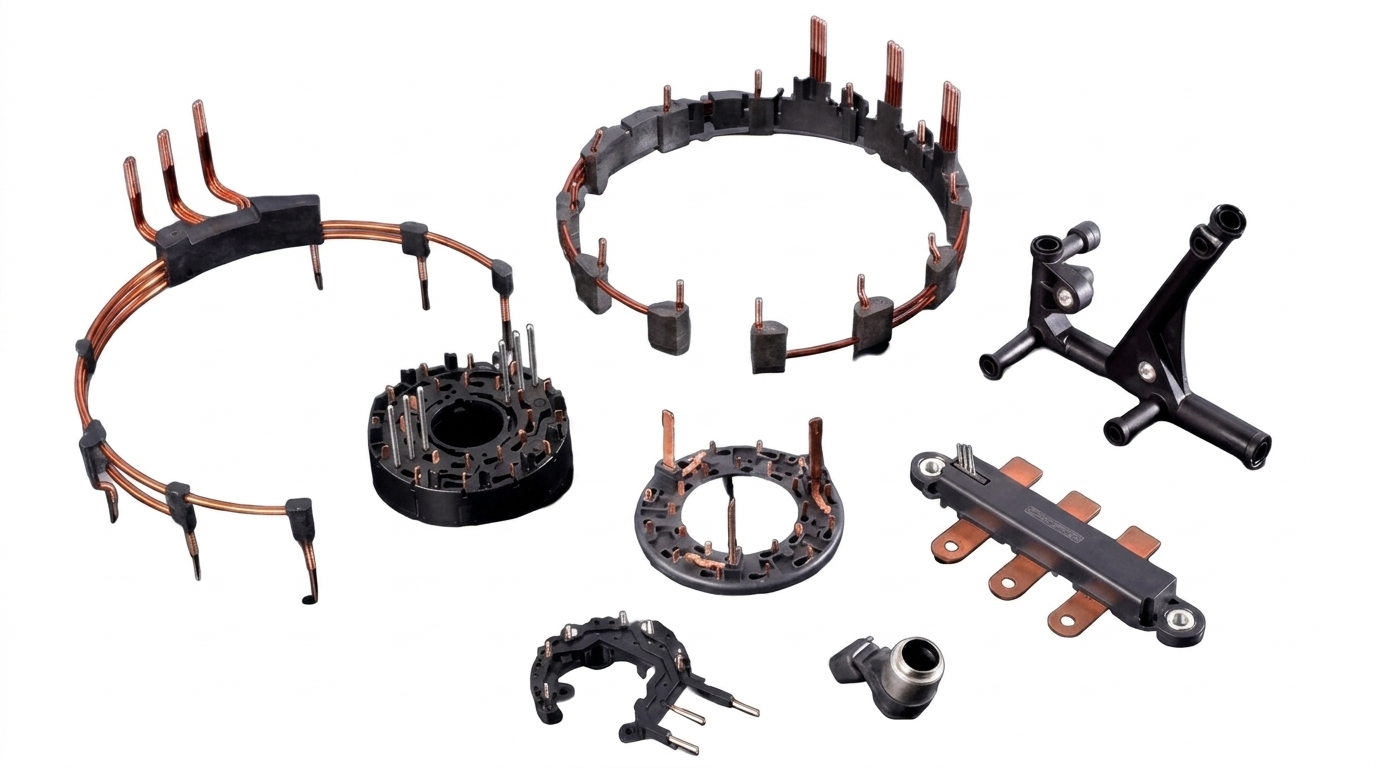

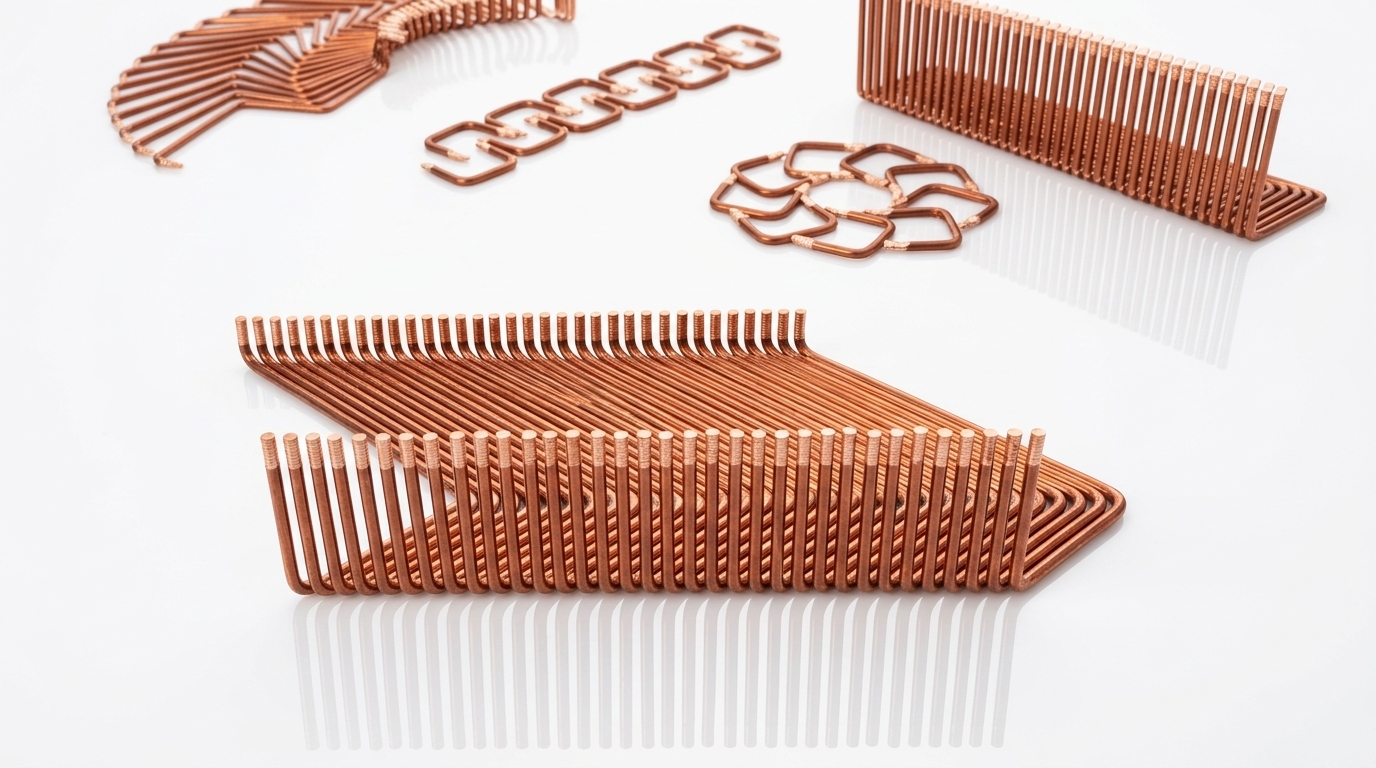

Sample Gallery
Explore our diverse range of precision-engineered sample processing solutions.
Ready to Upgrade Your Production?
Contact our sales team today for a personalized consultation and discover how Belan machinery can transform your manufacturing process.
