BL-2T-15600 Dual-Head CNC Wire Bending Machine

BL-2T-15600 is a high-performance 15-axis dual-head CNC wire bending machine designed for simultaneous double-end forming of long and symmetrical wire components. It processes soft wire Φ3.0–6.0mm and hard wire Φ3.0–4.5mm with a maximum processing length of 2000mm. Featuring independent dual-head servo control, 26.9KW total power, and a heavy-duty 5000KG machine frame, it significantly improves production efficiency while maintaining exceptional bending accuracy. The BL-2T-15600 is ideal for manufacturing rear seat wire frames, automotive seat frames, seat suspension wires (foam seat support wires), double serpentine springs, automotive linkage rods, and seat support structures, as well as other complex wire components requiring synchronized multi-point bending.

Applicable Wire Diameter: Hard Φ3.0–4.5mm / Soft Φ3.0–6.0mm

Number of Control Axes: 15 Axis

Total Power: 26.9 KW

Machine Weight: 5000 KG

Maximum Processing Length: 2000 mm

In Stock & Ready to Ship

Description Parameters Video

Product Advantages

Dual-Head High-Efficiency Forming

Adopts 15-axis full-servo dual-head independent control, supporting single or double-head bending with a minimum center distance of 80/120mm. Processes hard wire Φ3.0-4.5mm and soft wire Φ3.0-6.0mm, with a maximum length of 2000mm, greatly improving the production efficiency of complex symmetrical parts.

Strong Power & Heavy-Duty Performance

Total power 26.9KW, equipped with 2.7KW wire feeding motor, 2.7KW×2 large arm rotating motors (with brake), 3.0KW×2 left/right rotation motors, and 1.0KW cutting tool motor, delivering robust power for double-end forming of medium-to-heavy wire.

World-Famous Brand Components

Equipped with Yitu servo & control system, Tai Cheng reducers, NSK/IKO/FAG bearings, Schneider circuit breakers & contactors, Hiwin guide rails and lead screws, and Mean Well power supply; 5000KG heavy-duty frame and 1000KG automatic feeder ensure long-term stable operation.

BL-2T-15600

BL-2T-15600 dual-head wire forming machine features 15-axis full servo control. It processes hard wire Φ3.0-4.5mm and soft wire Φ3.0-6.0mm, with a maximum processing length of 2000mm. Total power is 26.9KW, machine weight 5000KG. Equipped with dual-head synchronous operation and a minimum center distance of 80/120mm, it enables efficient, high-precision complex forming.

Wide material applicability: hard wire Φ3.0-4.5mm / soft wire Φ3.0-6.0mm, meeting diverse metal wire processing needs
Dual-head independent coordination: 15-axis linkage including bending, rotation, cutting, etc., with minimum center distance 80/120mm, greatly improving production efficiency for complex parts
International brand components: Yitu servo motors & control system, Tai Cheng reducers, NSK/IKO/FAG bearings, Schneider electrics, Hiwin guide rails and lead screws, ensuring long-term stable operation

Technical Specifications

Action

Machine in Operation

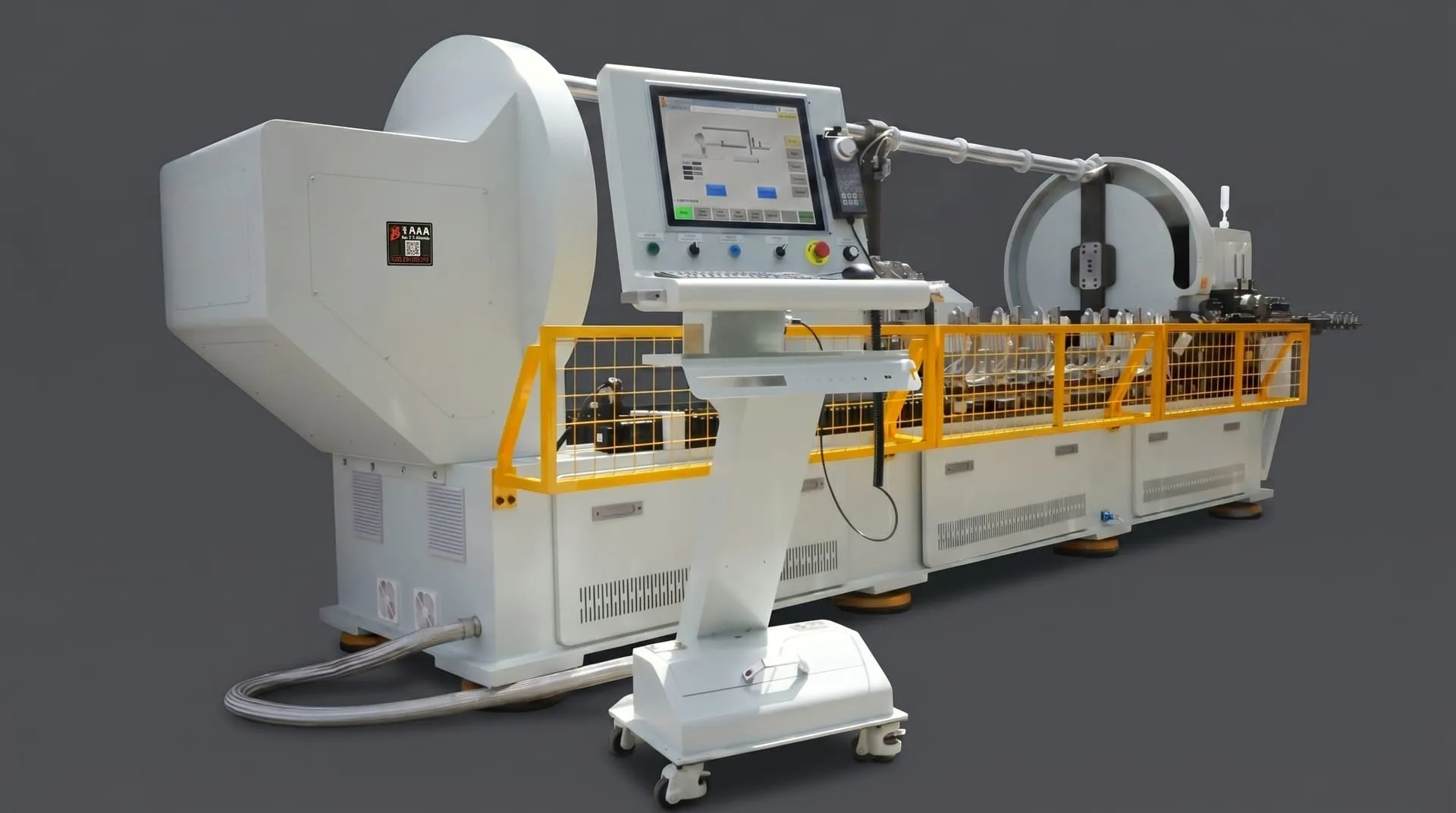

BL-2T-15600 Double-Head Machine

Double end wire forming machine Rear seat frame bending machine 3D wire bending machine

Capabilities

Application Samples

The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
