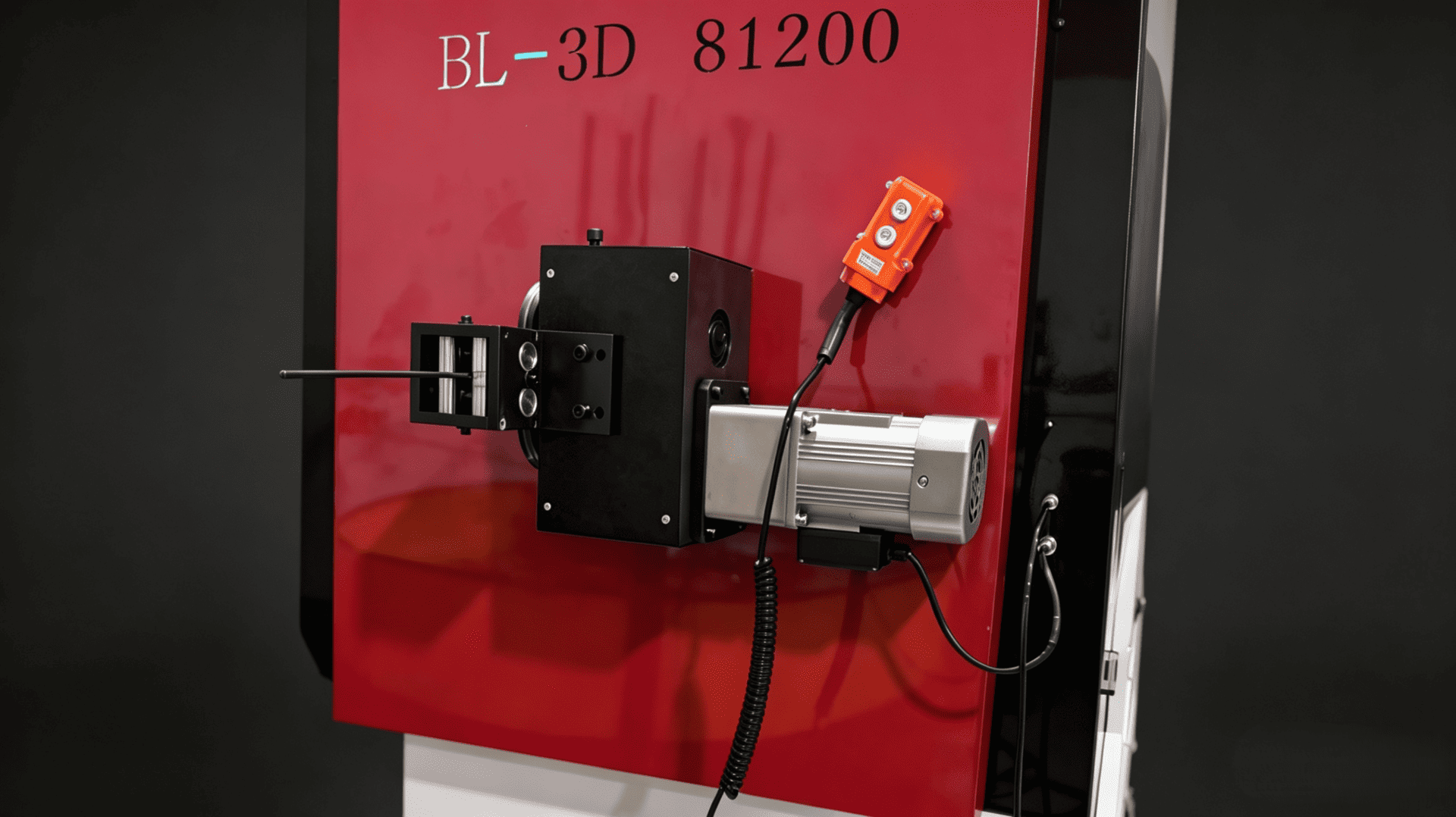

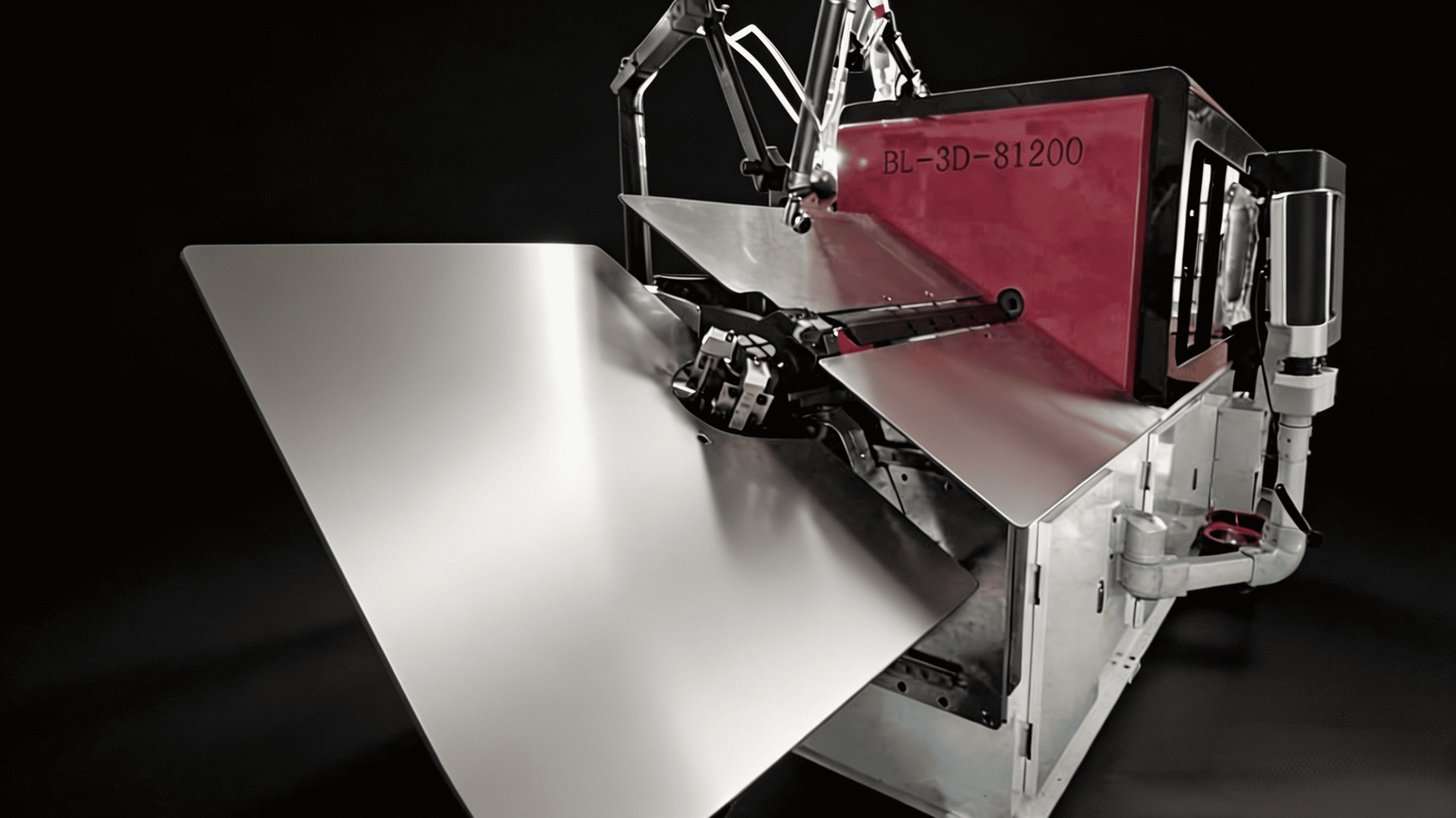

BL-3D-81200 8-Axis Flat Wire Rotary Bending Machine
BL-3D-81200 is the largest model in the flat wire rotary bending machine series, designed for extra-large and heavy-duty flat wire forming applications. Supporting soft wire 3.0–12.0mm and hard wire 3.0–10.0mm, it integrates a powerful 29KW servo system, an 850mm bending stroke, and a heavy-duty 4100KG machine structure to ensure stable production under high loads. With high-precision 8-axis CNC control and reliable multi-axis synchronization, it delivers exceptional forming accuracy for large industrial components. The BL-3D-81200 is ideal for manufacturing heavy-duty automotive parts, engineering hardware, construction systems, electrical support structures, and other demanding flat wire applications.
Product Advantages
8-Axis Precision Control
8-axis CNC system ensures 300mm+/-0.1mm feeding accuracy and 90 degrees+/-0.1 degree angle accuracy for precision flat-plate wire forming.
850mm Extended Bending Stroke
850mm bending stroke accommodates extra-large flat-plate wire components, with 40m/min feeding speed for efficient heavy industrial production.
Heavy-Duty Construction
29KW total power, 4100KG robust body with 1500KG automatic feeder, designed for continuous extra-large industrial production.
Engineered for Extra-Large Flat-Plate Wire Excellence
The BL-3D-81200 is a dedicated 8-axis flat-plate rotary wire forming solution with 850mm bending stroke. It delivers consistent geometry, tight tolerances, and reliable performance for extra-large flat-plate and industrial component manufacturing.
-
High-precision flat-plate wire forming (feeding accuracy: 300mm+/-0.1mm)
-
850mm extended bending stroke for extra-large flat-plate components
-
Reliable performance (29KW total power, 4100KG heavy-duty frame)
Technical Specifications
Technical Data
Automatic Feeder Info

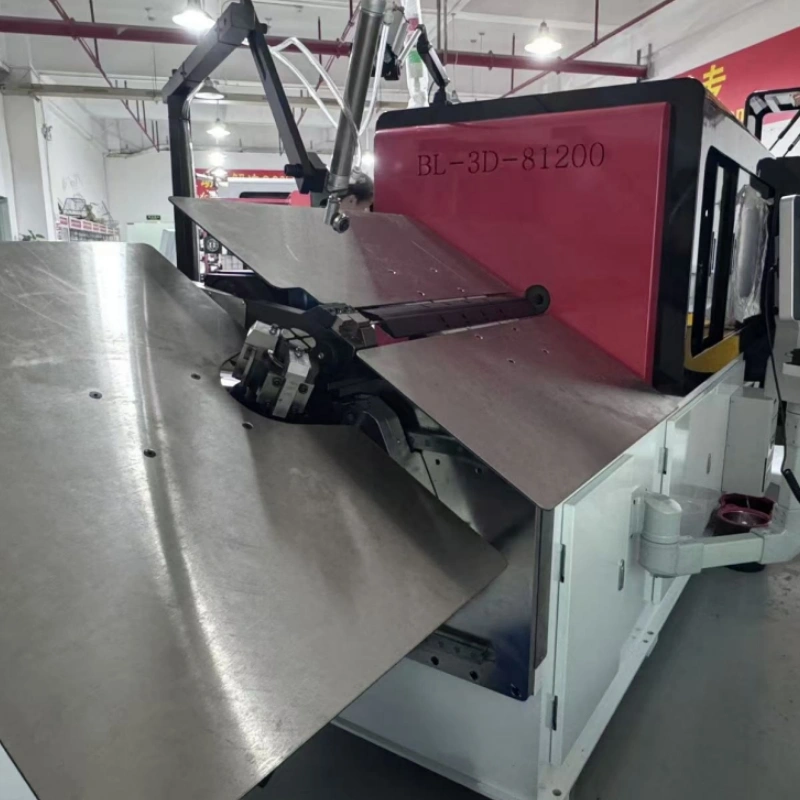

Machine in Operation
BL-3D-81200
Precision matters in complex 3D wire forming.wire bender delivers stable accuracy for industrial
Application Samples
The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
Need a custom solution?
Upload your drawings or specifications. Our engineers will analyze feasibility and provide a production plan within 2 hours.
