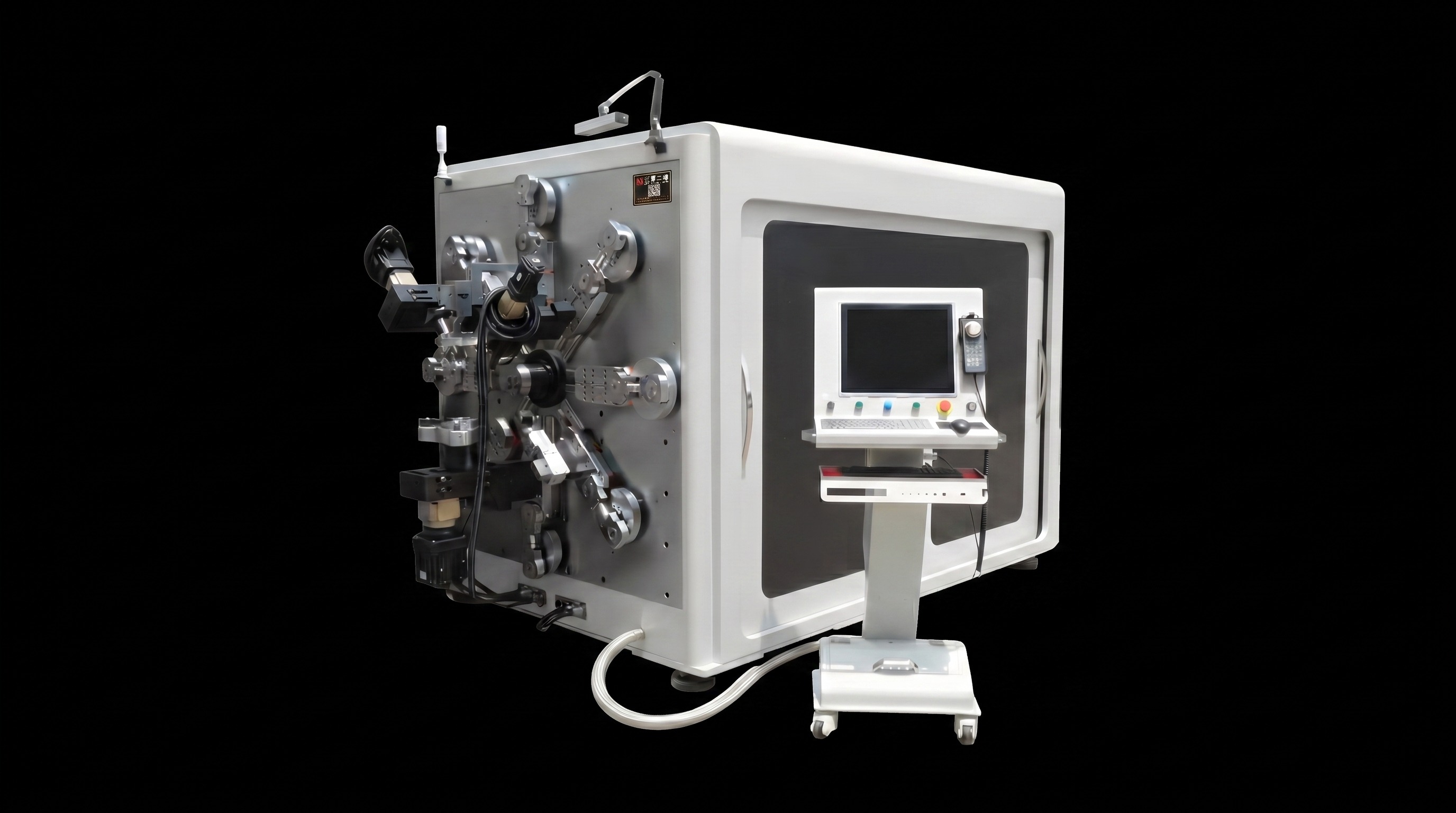

BL-TP-45-6E 13-Axis TP Series Special Wire Bending Machine

The BL-TP-45-6E is a high-performance 13-axis TP Series special wire bending machine designed for precision forming of special-profile wire, flat wire, and other non-standard metal wire materials used in automotive, hardware, and industrial manufacturing. Supporting wire widths from 2.0–8.0mm and thicknesses from 8.0–45.0mm, it combines crawler feeding, multi-axis CNC control, bending, rotating, shearing, and curling into one automated process. Equipped with a 35.2KW servo drive system and a rigid 3800KG machine frame, it delivers outstanding forming flexibility, dimensional accuracy, and production efficiency for complex special wire components.

APPLICABLE WIRE SPEC Width Φ2.0-8.0mm / Thickness Φ8.0-45mm

NO. OF CONTROL AXES 13 Axis

TOTAL POWER 35.2KW

MACHINE WEIGHT 3800KG

In Stock & Ready to Ship

Description Parameters Video Wire Samples

Product Advantages

13-Axis High-Precision Control

13-axis CNC system enables ultra-flexible multi-dimensional forming, accurately controlling wire feeding, turning, shearing, and curling, meeting the precision requirements of special wire processing.

Specialized Multi-Motor Configuration

Equipped with 4.5KW wire feeding motor + 2.7KW wire turning motor + 1.0KW servo shear motor + 8 sets of arm/curl motors (2.0KW6 + 5.5KW2 + 2.0KW*2), total power 35.2KW, adapting to heavy-duty special wire forming.

Crawler Feeding & Large Load Capacity

Crawler feeding design ensures stable feeding of special wires; 1000KG large-load automatic feeder supports continuous production, with compact machine size (2800×2200×2100mm) and reasonable site occupation (6800×3500mm).

Engineered for High-Precision Special Wire Forming

The BL-TP-45-6E is a professional special wire processing solution. It delivers stable forming quality, strict dimensional tolerances, and reliable continuous operation, meeting the high standards of automotive special parts, precision hardware, and industrial special wire component manufacturing.

Specialized for special wires (width Φ2.0-8.0mm / thickness Φ8.0-45mm)
13-axis control + multi-group motors for complex forming
Crawler feeding + 1000KG feeder for stable continuous production

Technical Specifications

Action

Machine in Operation

BL-TP-45-6E

BL-TP-45-6E: 13-axis high-precision special wire bending machine (TP Series) for wires with width Φ2.0-8.0mm & thickness Φ8.0-45mm, featuring crawler feeding and multi-group motors, enabling complex multi-dimensional forming.

Capabilities

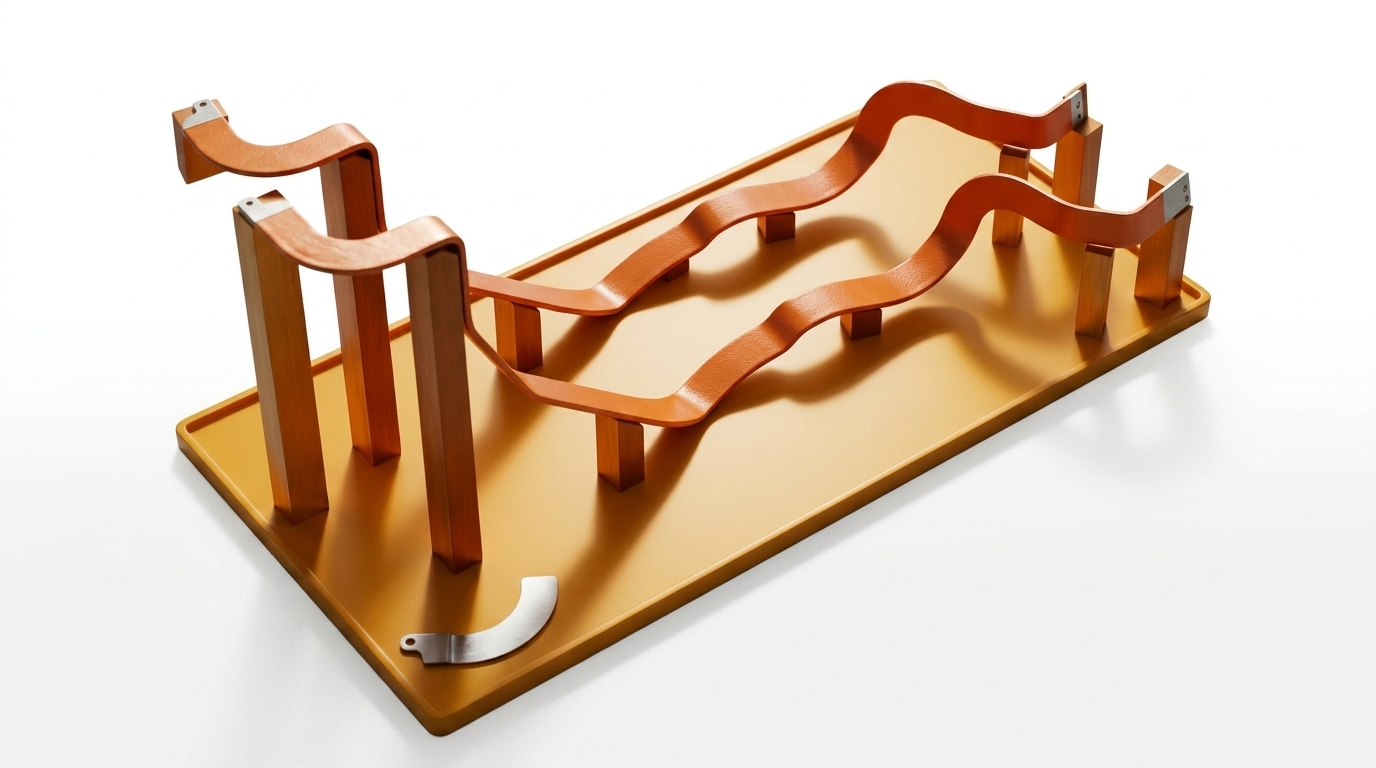

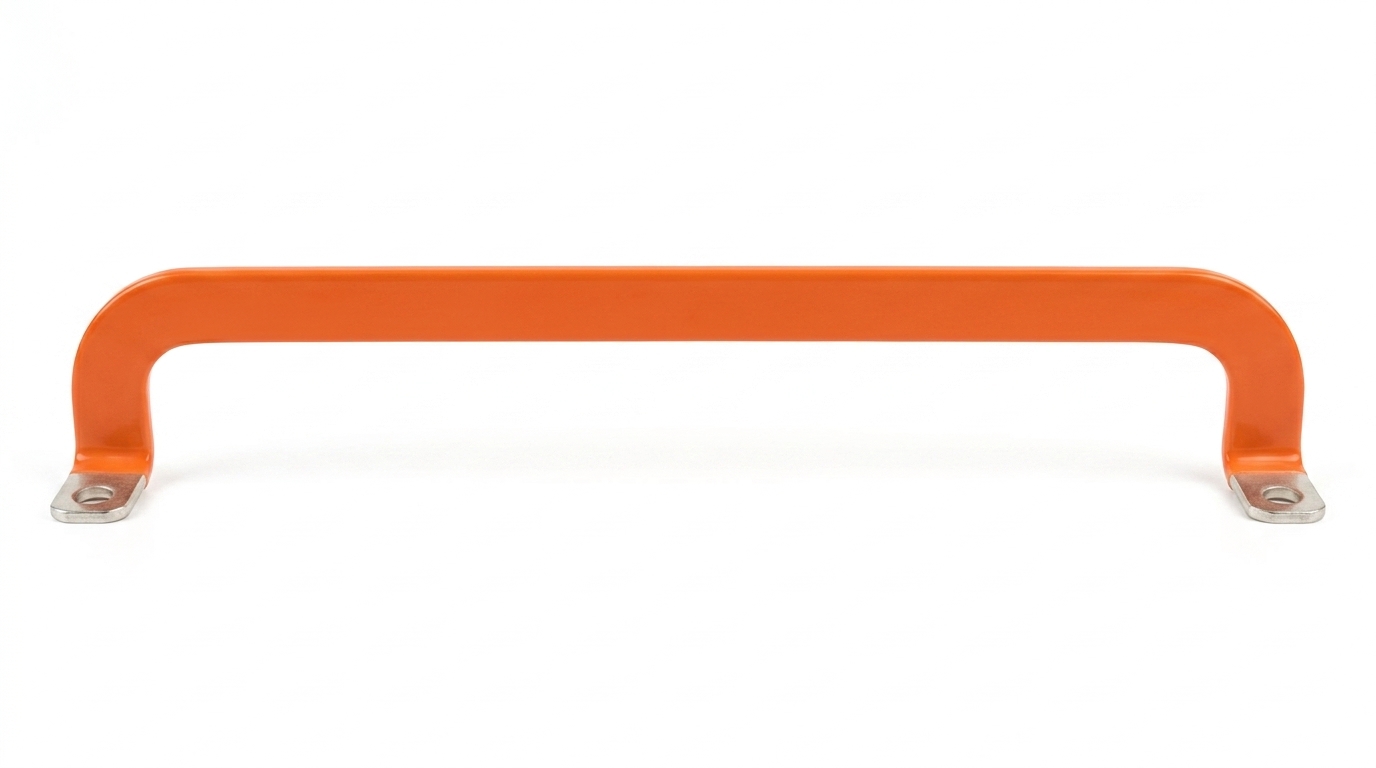

Application Samples
