BL-3D-8600 8-Axis Flat Wire Rotary Bending Machine

BL-3D-8600 is an 8-axis flat wire rotary bending machine engineered for precision forming of flat and shaped wire components. It processes soft wire from 2.0–6.0mm and hard wire from 2.0–4.0mm, featuring a 520mm bending stroke, 11.7KW total power, and a maximum wire feeding speed of 40m/min. The advanced 8-axis CNC control system delivers ±0.1mm feeding accuracy and ±0.1° bending accuracy, ensuring outstanding dimensional consistency for complex flat wire products. It is an ideal solution for manufacturing automotive components, furniture hardware, appliance parts, display accessories, and other precision flat wire products requiring stable, high-quality production.

APPLICABLE WIRE DIA Soft 2.0-6.0mm / Hard 2.0-4.0mm

NO. OF AXIS 8 Axis

TOTAL POWER 11.7KW

BENDING STROKE 520mm

WEIGHT OF MACHINE 2000KG

In Stock & Ready to Ship

Description Parameters Video Wire Samples

Product Advantages

8-Axis Precision Control

Adopts 8-axis CNC control system, delivering 300mm+/-0.1mm feeding accuracy and 90 degrees+/-0.1 degree angle accuracy for flat-plate wire forming.

520mm Extended Bending Stroke

520mm bending stroke accommodates larger flat-plate wire components, with 40m/min feeding speed for efficient production.

Heavy-Duty Construction

11.7KW total power, 2000KG robust body with 500KG automatic feeder, designed for continuous industrial production.

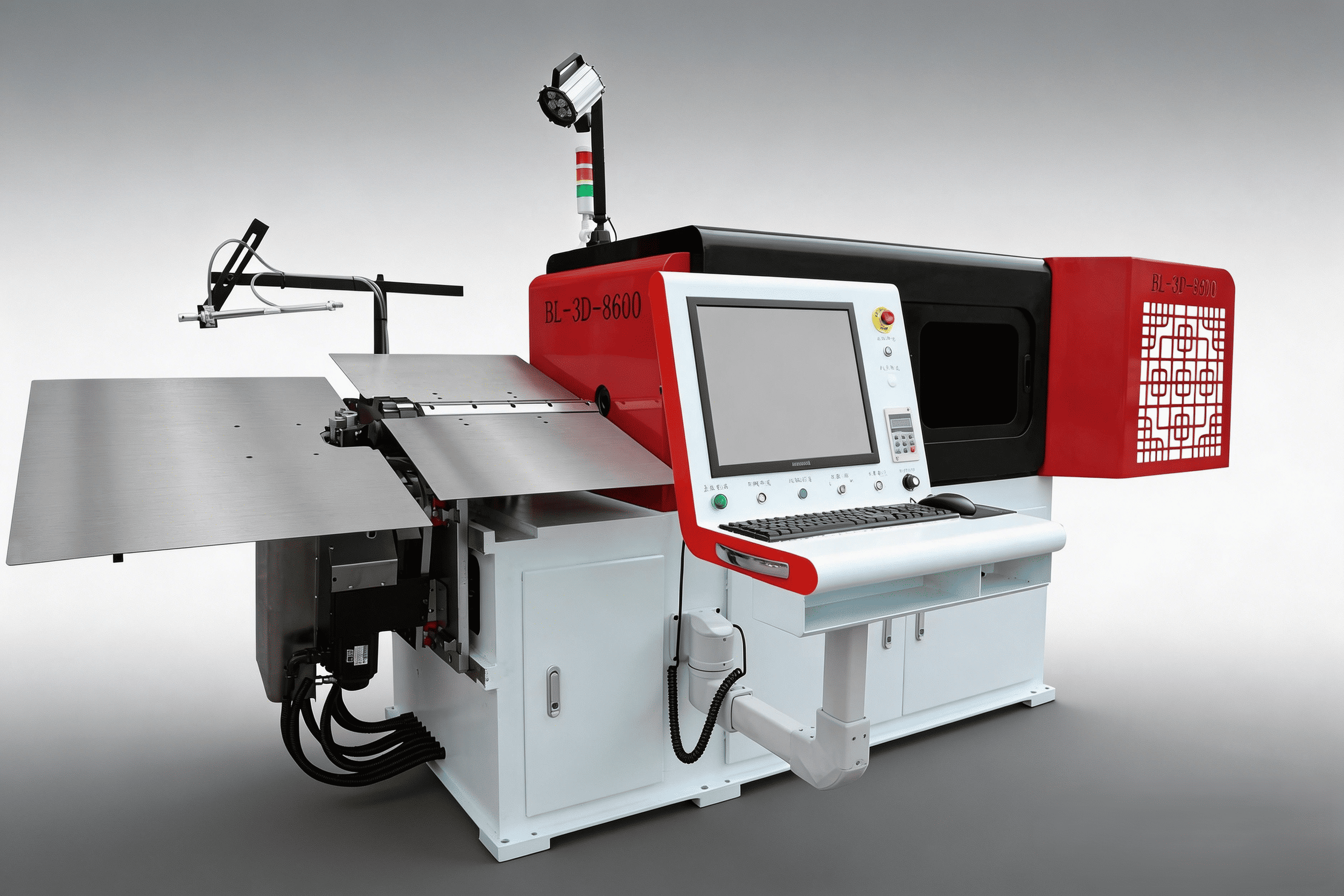

Engineered for Flat-Plate Wire Excellence

The BL-3D-8600 is a dedicated 8-axis flat-plate rotary wire forming solution with 520mm bending stroke. It ensures consistent geometry, tight tolerances, and reliable performance for flat-plate and automotive component manufacturing.

High-precision flat-plate wire forming (feeding accuracy: 300mm+/-0.1mm)
520mm extended bending stroke for larger components
Reliable performance (11.7KW total power, 2000KG heavy-duty frame)

Technical Specifications

Action

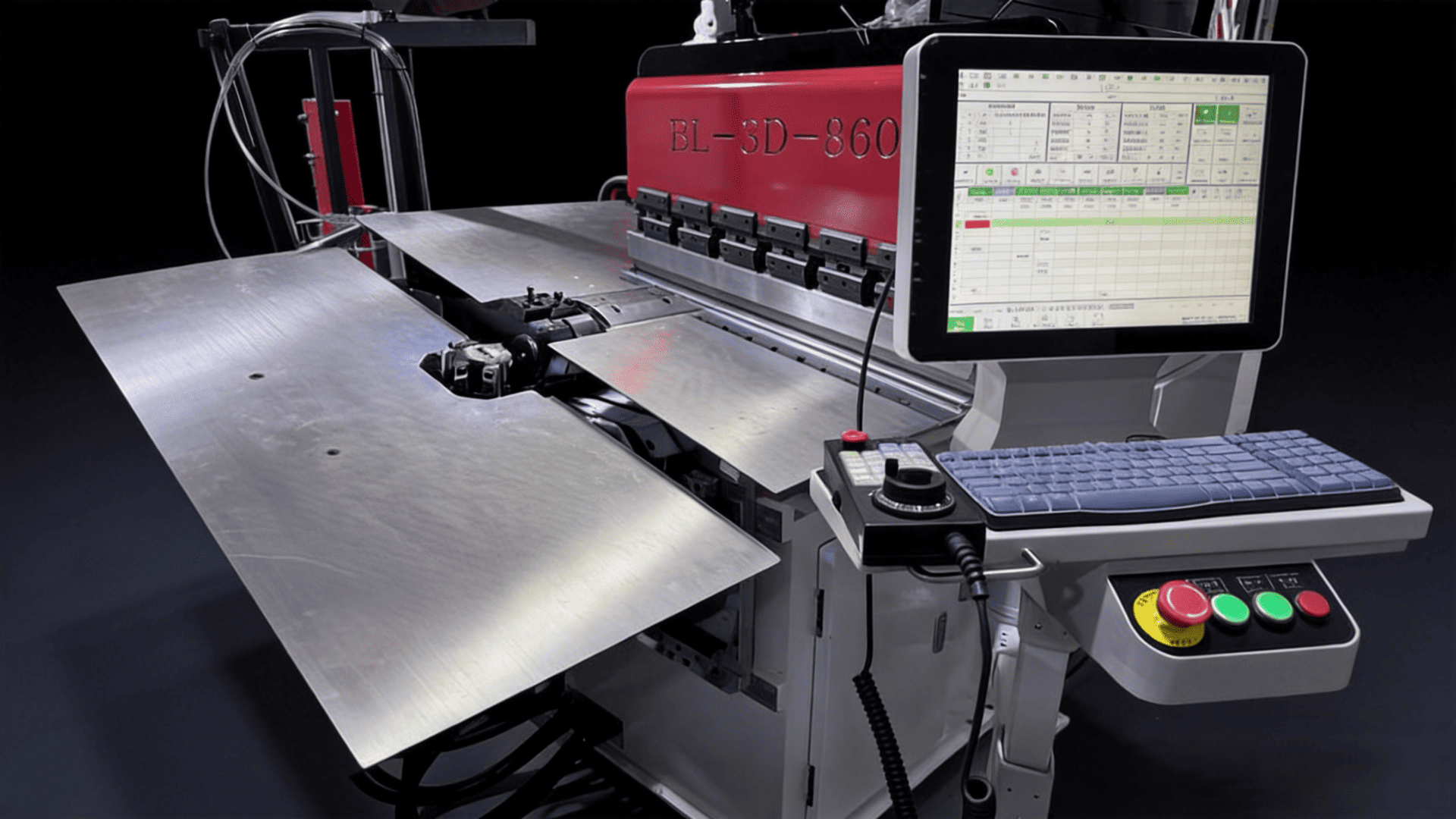

Machine in Operation

BL-3D-8600

This is a high-performance 8-axis flat-plate rotary wire bending machine, specially designed for soft material 2.0-6.0mm and hard material 2.0-4.0mm wire specifications. With a total power of 11.7KW and a machine weight of 2000KG, it features a 520mm bending stroke and 40m/min wire feeding speed, ideal for precision flat-plate and rotary wire forming applications.

Capabilities

Application Samples

The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
