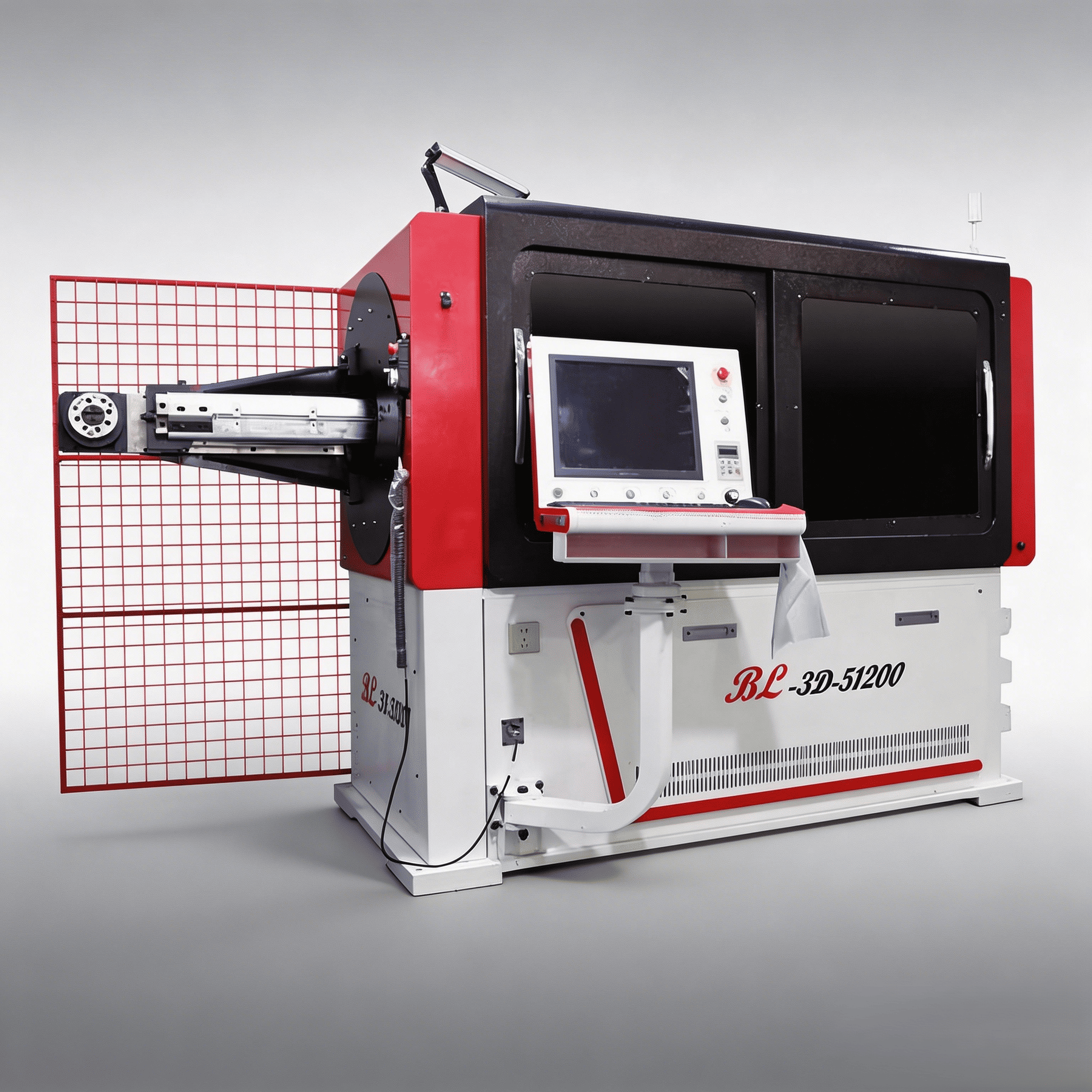

BL-3D-51200 5-Axis CNC Wire Bending Machine
BL-3D-51200 is a 5-axis CNC wire bending machine engineered for large-diameter wire processing. It supports soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, making it suitable for demanding industrial applications. Powered by a 16.0KW servo system and supported by a rigid 4500KG machine frame, it provides outstanding stability during continuous production. With a 650mm bending stroke, 90m/min maximum wire feeding speed, and ±0.1mm feeding accuracy, the machine delivers reliable forming quality for construction hardware, heavy-duty brackets, agricultural equipment, transportation components, and other large wire products requiring consistent precision.
Product Advantages
Heavy-Duty Large-Diameter Wire Adaptability
Supports large-diameter wires (soft Φ5.0-12.0mm / hard Φ5.0-8.0mm), filling the gap of heavy wire processing, and meets the forming needs of thick-gauge industrial components.
High-Power & High-Efficiency Configuration
Equipped with 7.5KW high-power wire feeding motor and 4.5KW rotating arm motor, total power up to 16.0KW, ensuring strong power output for heavy wire forming at 90M/min speed.
Stable & Precise Performance
4500KG heavy-duty frame reduces vibration during processing; 300mm±0.1mm wire feeding accuracy and 90°±0.2° angle accuracy guarantee consistent forming quality of large-diameter wires.
Engineered for Heavy-Duty Large-Diameter Wire Forming
The BL-3D-51200 is a professional heavy-duty wire forming solution. It delivers stable geometry, strict tolerances, and reliable output, meeting the high standards of heavy machinery, construction hardware, and large-scale industrial component manufacturing.
-
Specialized for large-diameter wires (soft Φ5.0-12.0mm / hard Φ5.0-8.0mm)
-
High-power configuration (16.0KW total power) for heavy-duty processing
-
2000KG large-load automatic feeder for continuous production
Technical Specifications
Technical Data
Automatic Feeder Info
Machine in Operation
BL-3D-51200
wire bending machine,From simple to complex 3D wire shapes.
Application Samples
The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
Need a custom solution?
Upload your drawings or specifications. Our engineers will analyze feasibility and provide a production plan within 2 hours.
