BL-3D-61200 6-Axis CNC Wire Bending Machine
BL-3D-61200 is a 6-axis CNC wire bending machine designed for complex three-dimensional forming of medium- and large-diameter wire. Supporting soft wire Φ5.0–12.0mm and hard wire Φ5.0–8.0mm, it integrates an additional internal rotation axis to perform more sophisticated bending operations with greater flexibility. Powered by a 17.5KW servo system and built on a robust 4500KG machine frame, it provides stable high-load production, accurate wire positioning, and excellent dimensional consistency. The BL-3D-61200 is widely used for manufacturing automotive components, industrial hardware, construction accessories, storage systems, and precision wire products requiring complex geometries.
Product Advantages
6-Axis CNC System for Outstanding Complex Forming
Equipped with a 6-axis CNC control system, it can realize more complex spatial wire forming motions to meet diverse, high-precision wire processing demands. With a precision transmission structure, it achieves a feeding accuracy of 300mm±0.1mm and a bending accuracy of 90°±0.2°, ensuring excellent dimensional consistency of formed products.
Compatible with Soft & Hard Materials for Multi-Spec Wire Processing
It supports the forming of soft wires (Φ5.0-12.0mm, tensile strength ≤ 500N) and hard wires (Φ5.0-8.0mm, tensile strength ≤ 1700N), adapts to metal wires of different strengths, and meets the production demands of various industrial wire categories.
Heavy-Duty Branded Core Components & Heavy Frame for Stable Durability
Core components adopt branded configurations including Japanese SANYO servo motors, Shangyin linear slide rails, NSK/IKO bearings and German Newcat lift reducers. The machine body is made of A3 steel with a host weight of 4500kg, featuring high rigidity and vibration resistance for long-time continuous production.
BL-3D-61200
The BL-3D-61200 is a high-performance 6-axis CNC wire forming machine for medium-large diameter wire processing. Supporting soft wires of Φ5.0–12.0mm and hard wires of Φ5.0–8.0mm, it is equipped with premium branded core components. With a total power of 17.5KW and a 4500kg rigid heavy frame, it delivers reliable forming accuracy and stable operation, suitable for diversified industrial wire production.
-
6-axis high-complexity wire forming capability
-
Wide compatibility for soft and hard wire materials
-
Branded configuration for stable long-term operation
Technical Specifications
Technical Data
Automatic Feeder Info
Machine in Operation

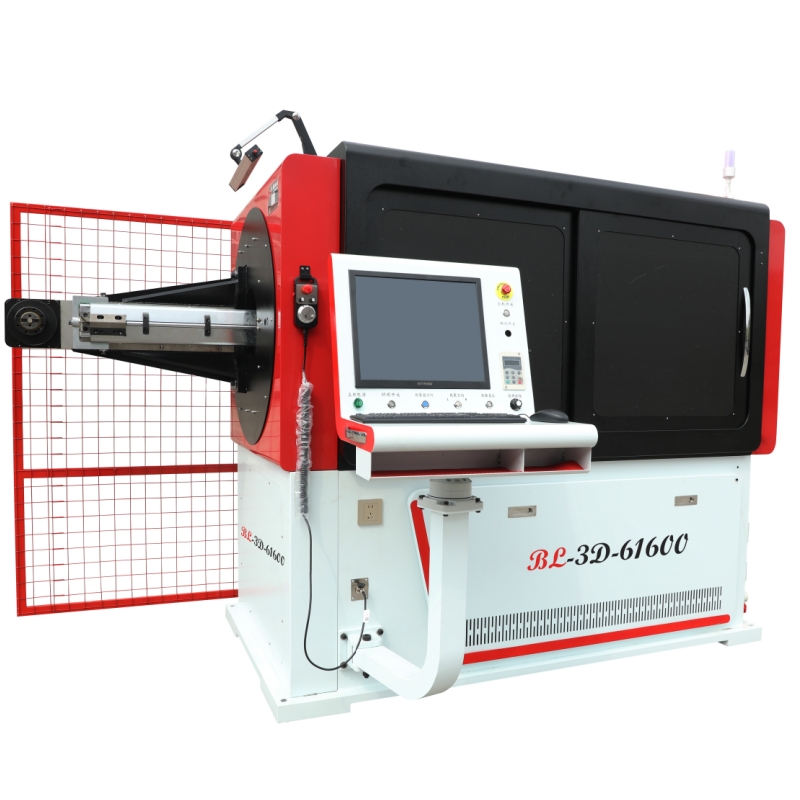

BL-3D-61600
BL-3D-61600: 3D Rotary Head CNC wire bending machine for extra-large diameter wires (Φ8.0-16.0mm soft / Φ8.0-12.0mm hard), enabling heavy-duty 3D complex forming with 800mm bending stroke.
Application Samples
The Wire Bending Machines are designed for high-precision automotive components, specializing in parts like wiper linkages and other complex metal wire assemblies.
