How to Select Automotive Wire Bending Machines? Complete Selection Guide for Special Models of Seat Frames & Foam Steel Wires
Industry Background & Selection Pain Points
With the rapid development of new energy vehicles, automotive seats, chassis systems, intelligent driving and other industries, automotive wire accessories are upgrading toward high precision, lightweight and multi-variety. From seat frames, foam steel wires, wiper arms to stabilizer bars and connectors, different spare parts have vastly different requirements for bending processes and automation levels. Faced with a wide range of automotive wire bending machines on the market, many manufacturers get confused during procurement: whether the equipment meets production capacity, which model fits their products best, and more. In fact, equipment selection should center on product processes rather than simply comparing prices or parameters.
Step 1: Screen Core Selection Standards & Internal Demands
Before purchasing automotive wire bending machines, clarify the following key factors first:
① Product Type
Does it require 2D bending or 3D spatial forming? Are complex continuous bends needed?
② Material Specifications
Wire diameter range? Carbon steel, stainless steel, spring steel or foam steel wire? Does material tensile strength exceed the machine’s processing limit?
③ Processing Technology
Besides bending, are composite processes including cutting, heading, pressing and weaving required?
④ Production Mode
Mixed small-batch production or long-term mass production? Is quick model changeover needed to boost equipment utilization?
After clarifying above demands, matching corresponding machine models can effectively lower procurement risks and lift return on investment.
Step 2: 6 Special Automotive Wire Bending Machines & Matching Scenarios
BELAN provides multiple dedicated automatic equipment for various auto spare parts to satisfy diverse processing demands.

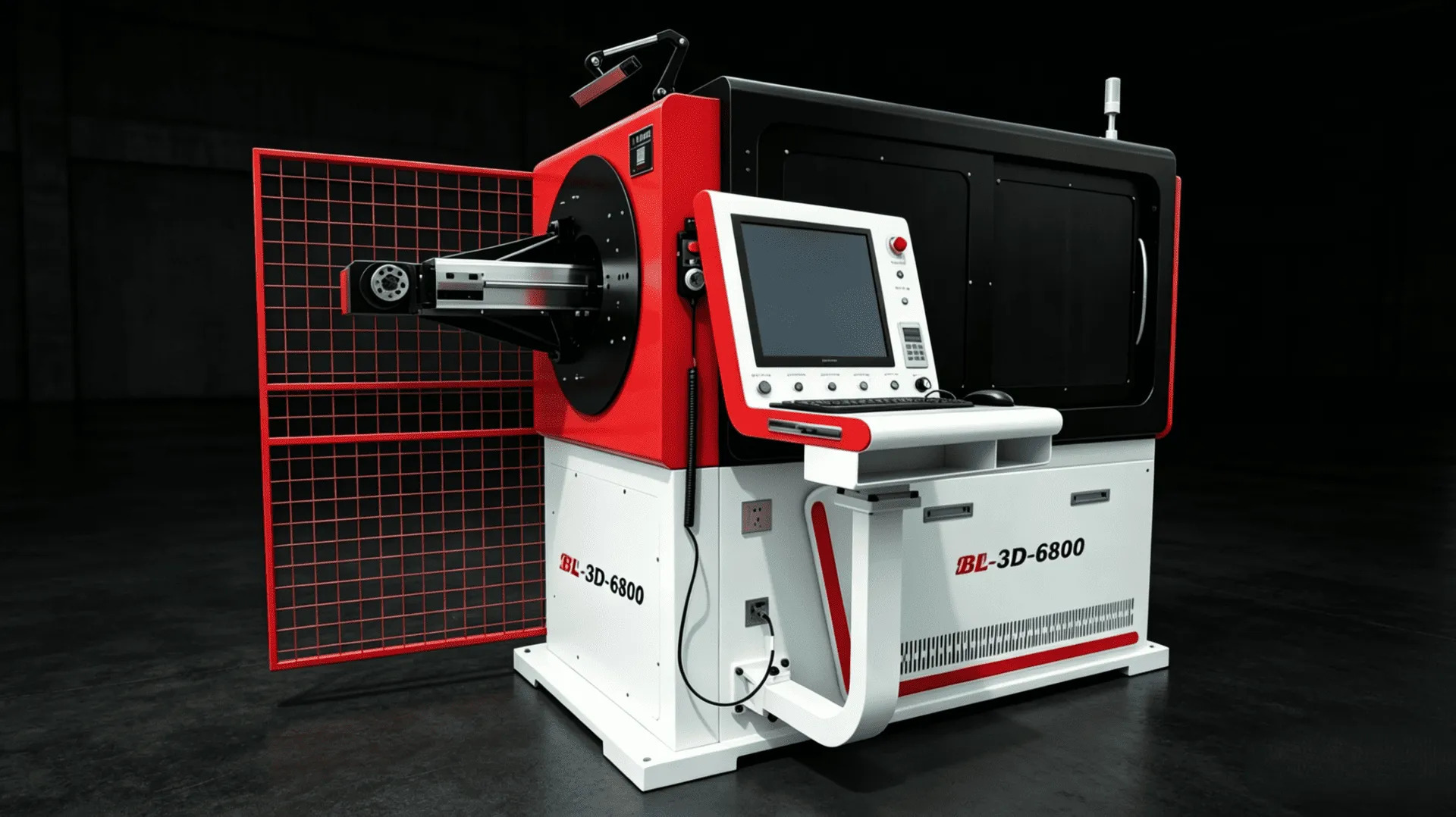

BL-3D-5800/6800 Rotating Head Wire Bending Machine
Suitable for automotive seat steel wires, chassis tie rods, sunroof wires, headrest wires and all types of 3D special-shaped wires. Equipped with rotating bending structure to realize complex spatial forming with fast model changeover, ideal for flexible production of auto parts.

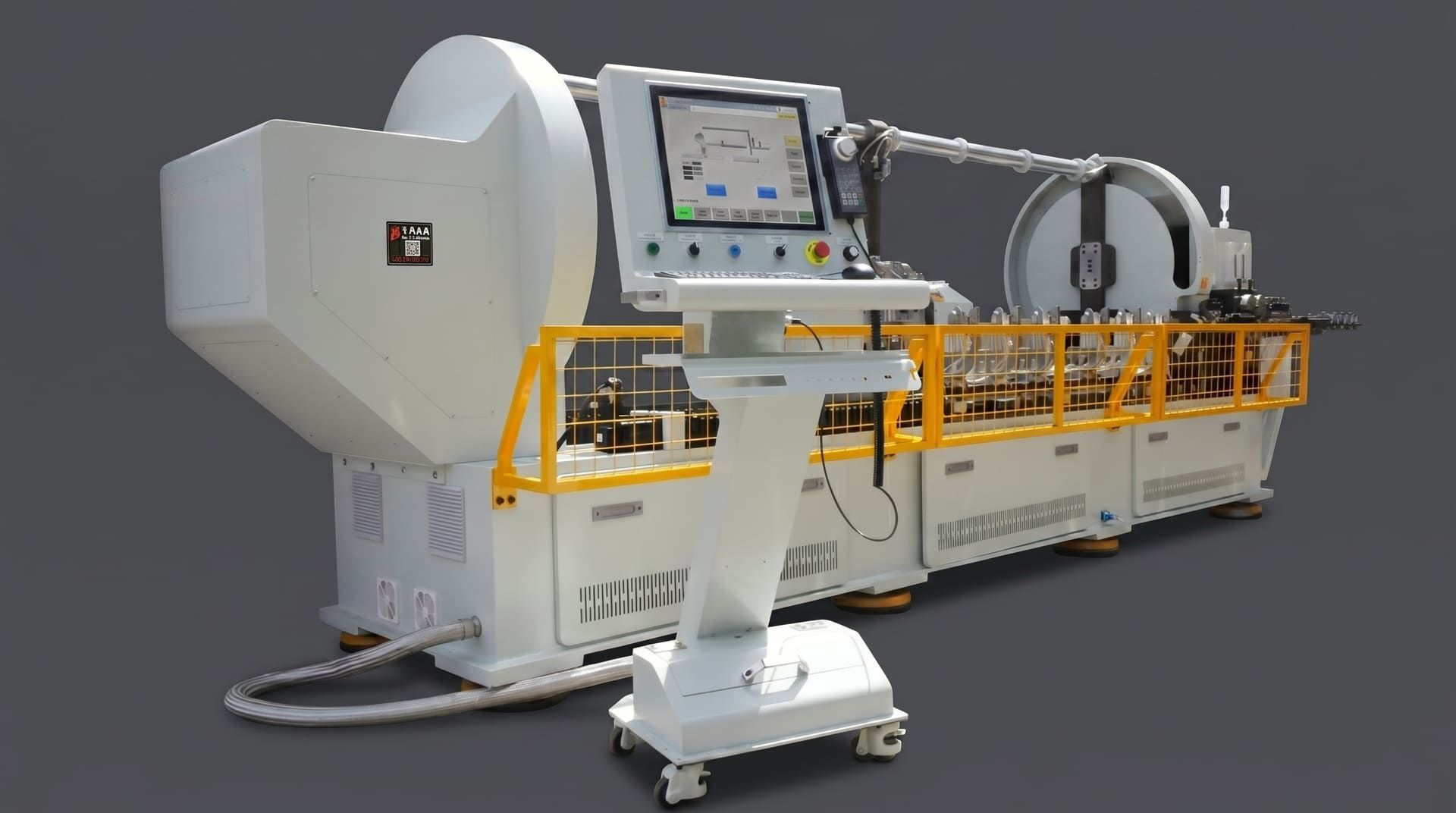

BL-2T-15600 Double Head Wire Bending Machine
Customized for automotive stabilizer bars, symmetric structural parts, seat cross beams and other products. It realizes synchronous double-end processing and finishes dual-side bending in one single run, greatly improving production efficiency and product consistency, perfect for mass manufacturing.

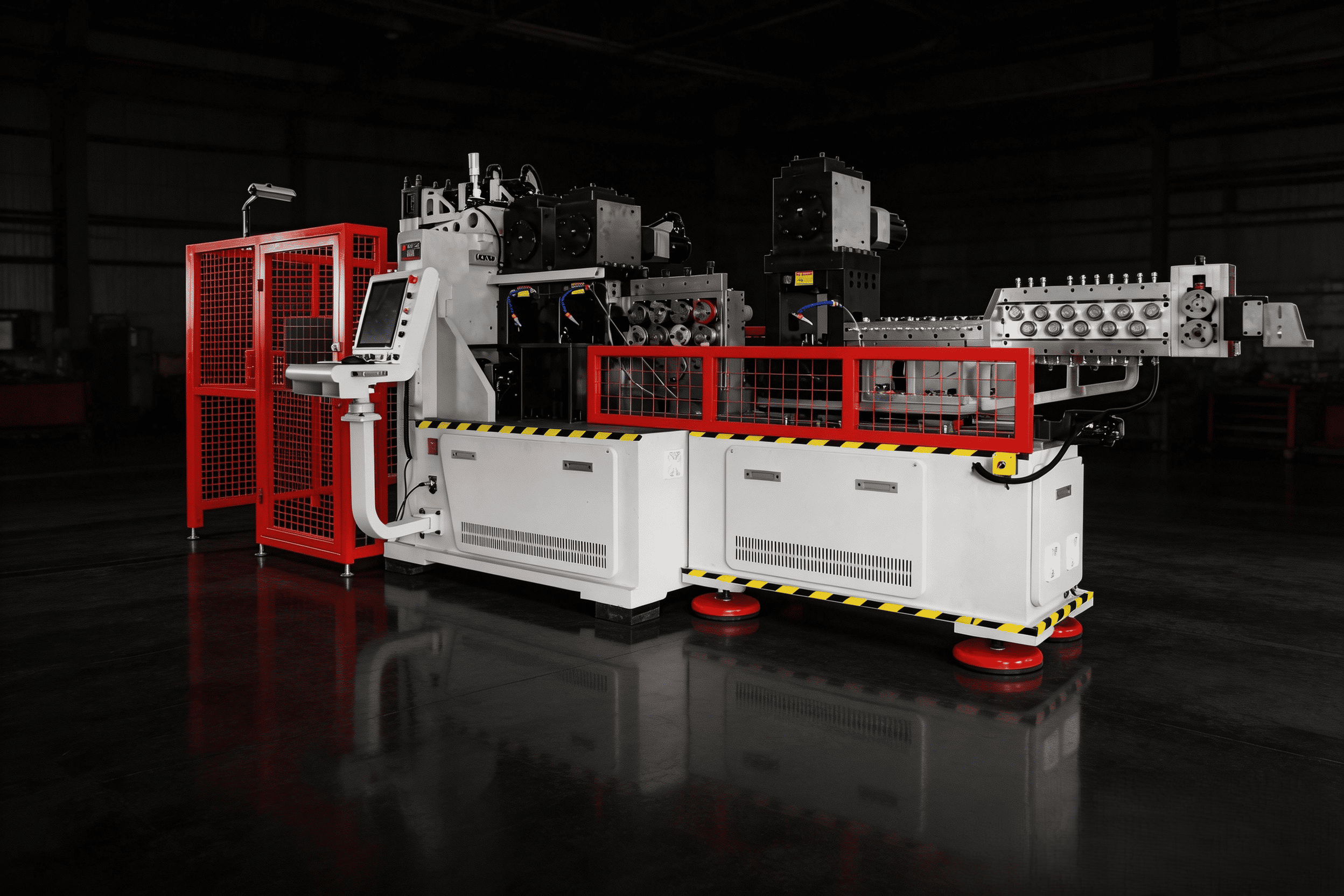

BL-YG-12Y Automotive Wiper Arm Forming Machine
Designed for wiper arm production processes, integrating feeding, bending, logo stamping, punching and tooth pressing into one single machine. It supports continuous automatic processing, reduces manual intervention and raises overall output.

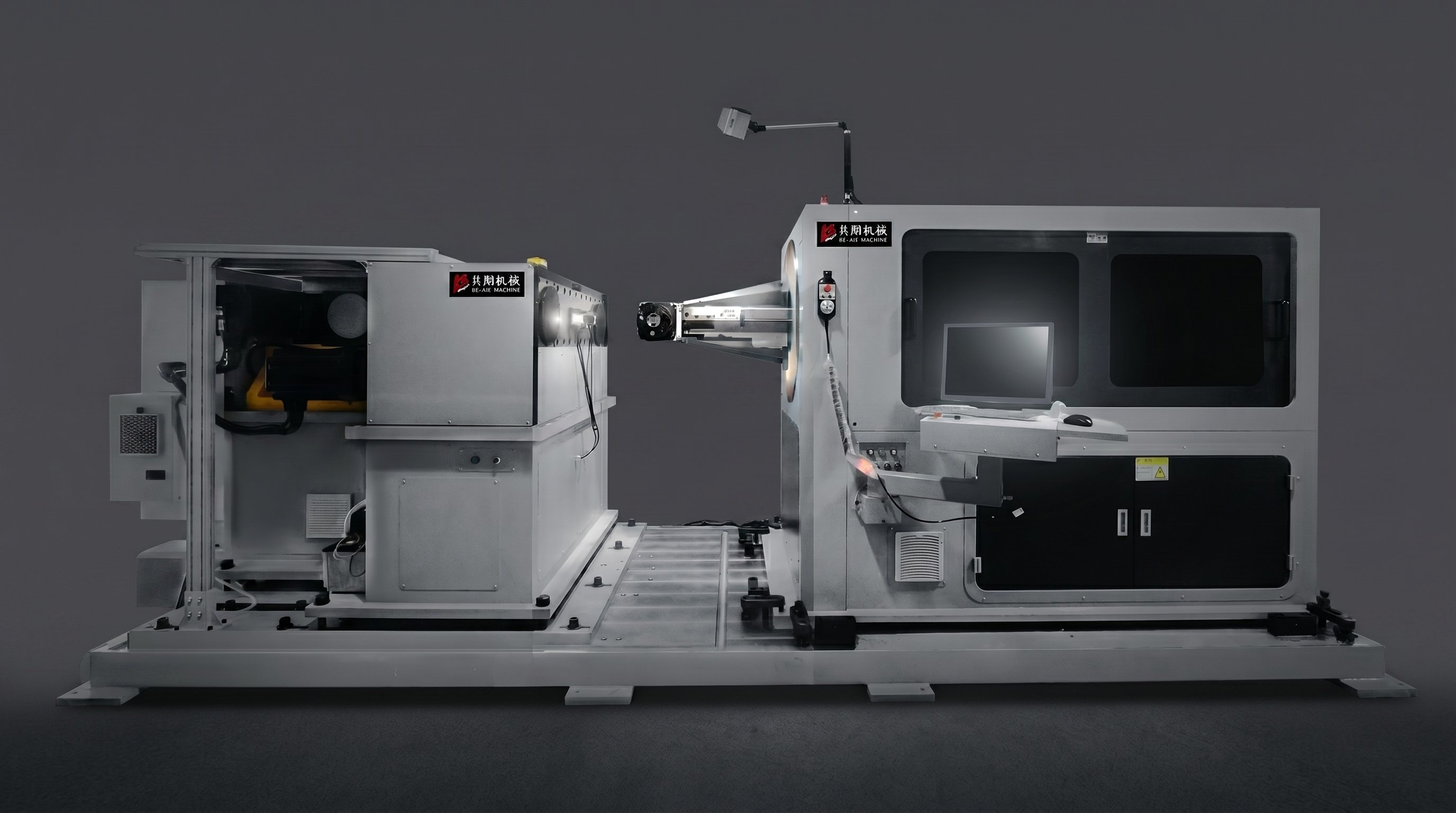

BL-3DDT-51200 Heading & Bending Integrated Machine
Applicable to integrated components requiring both heading and bending, including auto connectors, positioning pins, hooks and brackets. One machine completes two working procedures to cut intermediate turnover and boost production efficiency.

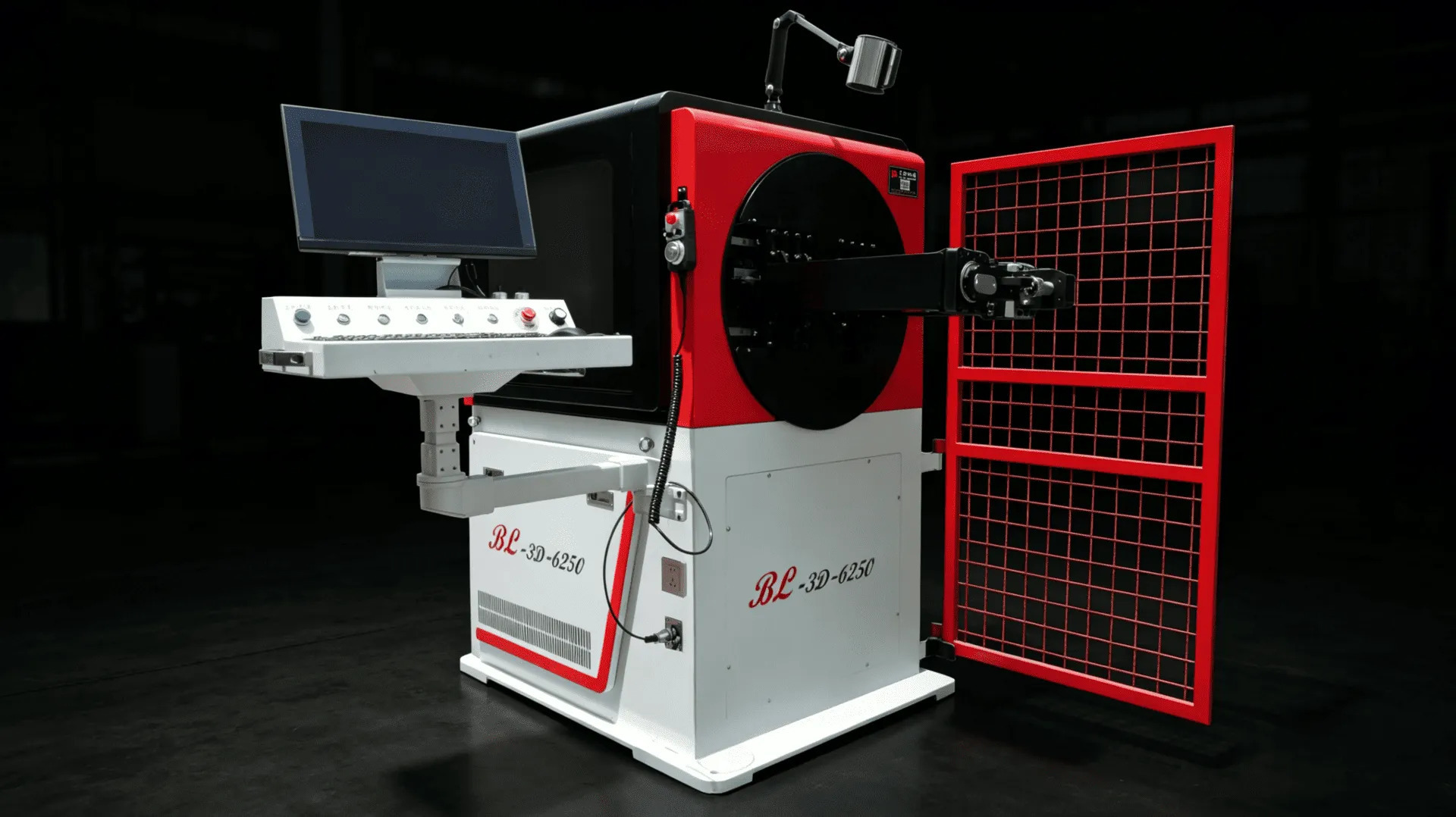

BL-3D-6250 Automotive Foam Steel Wire Bending Machine
Specially developed for automotive seat foam wires, headrest wires and fuel tank float rods. Adopting high-speed rotating forming structure, it features small footprint, fast running speed and high stability, the optimal solution for mass production of auto foam steel wires.

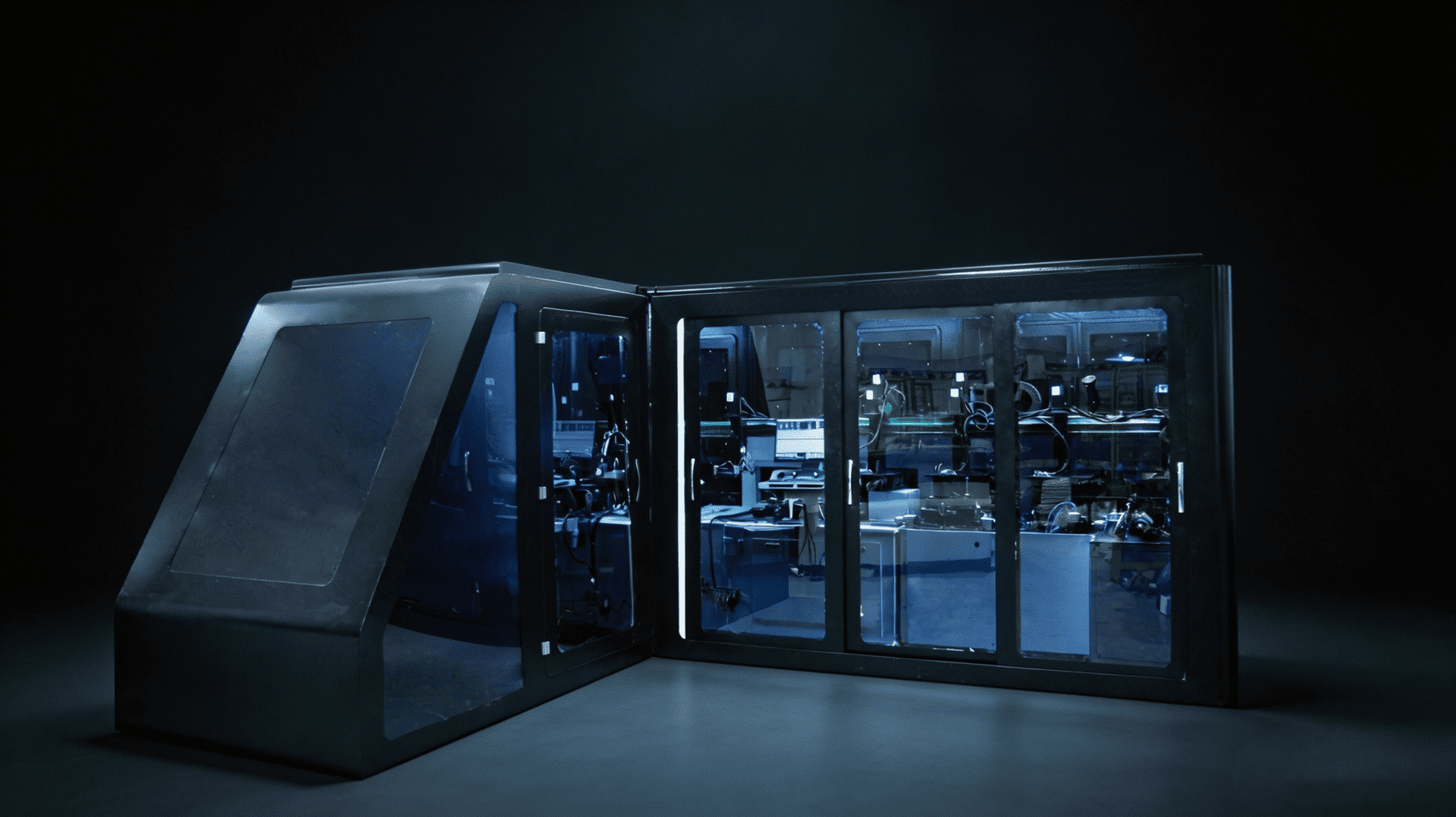

BL-WG-2030S Automotive Seat Back Frame Weaving Machine
Used for automatic weaving forming of automotive seat back frame steel wires. It replaces traditional manual weaving with automatic feeding and weaving functions, enhancing product consistency and cutting labor costs, widely adopted by automotive seat manufacturers.
Step 3: 3 Core Hardware to Inspect During Machine Selection
Besides model matching, core equipment configurations directly determine long-term stable operation.
1. Servo System: Prioritize globally renowned brand servo motors with high positioning accuracy and stable operation, meeting long-term continuous production requirements of automotive industry.
2. Mechanical Transmission Structure: High-rigidity frame, precision rack & pinion and high-precision feeding mechanism guarantee long-term processing accuracy and lower equipment wear.
3. Intelligent Control System: Premium control systems support fast programming, parameter recall and quick model switching, as well as remote diagnosis, software upgrade and online technical support to cut maintenance costs.
Step 4: Avoid Common Machine Selection Misunderstandings
Many manufacturers fall into the following traps when purchasing wire bending equipment:
• Only focus on machine price while ignoring actual matching between equipment and products;
• Simply compare maximum bendable wire diameter without comprehensive evaluation of material strength, bending radius and technical requirements;
• Neglect manufacturers’ R&D capacity, after-sales service and remote technical support, leading to higher debugging and maintenance costs later.
We recommend submitting product drawings, material parameters, annual output and process requirements before procurement. Professional manufacturers will conduct sample analysis and feasibility assessment to recommend matching models for stable long-term production.
Conclusion & Custom Solution Support
There are various types of automotive wire accessories, and no universal all-in-one machine exists — only equipment tailored to your product processes fits best. Selecting professional automotive wire bending machines can not only boost production efficiency and product consistency, but also cut long-term manufacturing costs. If you are planning an automatic automotive wire production project,
As a professional supplier of automotive wire forming solutions, BELAN welcomes you to send product drawings or samples. Our engineer team provides free process evaluation, equipment selection and customized automation solutions.
For more information or to schedule a technical consultation, please contact our sales team.
