On-site Workshop Footage of BELAN Fully Automatic Copper Busbar Bending Machine: Analysis of Integrated Forming Production Process
Production Line Overview
Step into BELAN Automation’s Dongguan assembly workshop, where an integrated fully automatic copper busbar bending production line runs at full speed. Different from traditional discrete processing equipment, this busbar bending machine integrates multiple working procedures to achieve unmanned automatic production. It thoroughly solves common drawbacks of traditional busbar processing including complicated workflows, poor dimensional accuracy and easy workpiece damage, making it the top choice high-precision busbar processing machine for new energy industry.
Five Core Production Processes of Fully Automatic Copper & Aluminum Busbar Bending Machine
Equipped with an integrated processing system, the machine realizes full automation from coil feeding to finished product discharge. The five procedures connect seamlessly to deliver an efficient production mode of "coil raw material in, finished busbar out".
1. Heavy-Duty Automatic Uncoiling & Feeding
Comes with a dedicated electric uncoiling rack with load capacity ranging from 500kg to 2000kg, stably supporting heavy copper and aluminum coils for stable heavy-load machining.
Servo motor intelligent follow-up speed regulation matches subsequent processing rhythm, effectively preventing strip loosening and surface stretching damage to keep raw materials intact.
2. Omni-Directional Precision Straightening & Shaping
Fitted with dense straightening roller groups on X and Y axes, supporting precise correction for horizontal and vertical bends to fit all kinds of coiled raw materials.
Graduated memory handwheels enable precise parameter adjustment with saved debug data. No repeated calibration needed during product changeover, drastically boosting debugging efficiency.

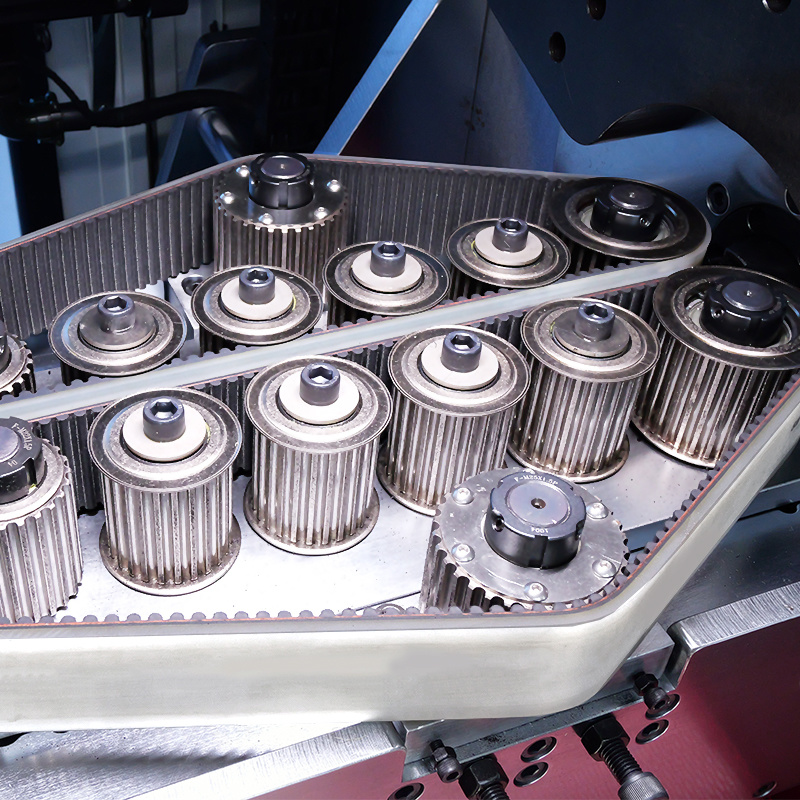

3. Track-Type Non-Damaging Feeding (Core Exclusive Technology)
Eliminates traditional point-contact rollers and adopts full-coverage track feeding structure with evenly distributed contact pressure, anti-slip and zero surface indentation.
Perfectly protects 2mm thick insulating sleeves, compatible with dip-coated and plastic-sprayed insulated copper & aluminum busbars, fundamentally lowering reject rate.
4. Multi-Axis Linked Bending & Cutting
Bending head supports ±180° rotation, flexibly forming complex special-shaped busbars such as flat bend, vertical bend, U-shape and S-shape.
Servo precision cutting creates smooth burr-free cuts with length tolerance stably controlled within ±0.2mm, leading the industry in finished product precision.
5. Automated Intelligent Unloading
Formed workpieces drop automatically onto conveying equipment, compatible with 6-axis manipulators for precise placement to achieve seamless assembly line connection.
Zero manual intervention throughout the whole process, ideal for factory automated and intelligent mass production scenarios.
Core Production Advantages Of Equipment
Integrating straightening, feeding, bending, punching and chamfering functions, this fully automatic copper & aluminum busbar bending machine completely reforms the cumbersome traditional "cut first then bend" process. Featuring high automation and wide compatibility, it meets mass precision busbar processing demands from new energy, electrical engineering, energy storage and other industries, effectively helping manufacturers reduce costs and lift productivity.
Common Frequently Asked FAQ
1. Can this machine process copper and aluminum busbars with insulating layers?
Yes. The exclusive track feeding structure delivers uniform pressure without squeezing or scratching insulating sleeves, suitable for precision machining of all coated insulated busbars.
2. Does the machine support processing heavy copper coils?
Yes. The uncoiling rack’s maximum load reaches 2000kg, which can steadily hold heavy coils to satisfy industrial heavy-load mass production requirements.
3. Is debugging complicated when frequently switching product specifications?
No. Straightening parameters can be stored via graduated memory. Direct alignment is available during changeover without repeated trial adjustment, matching flexible production demands.
4. How about finished bending precision and cut surface quality?
Multi-axis servo linkage control ensures neat formed bends and burr-free cutting, with stable length tolerance within ±0.2mm for consistent precision.
5. Can the machine realize unmanned mass production?
Yes. Full-process automatic operation paired with manipulator unloading enables unattended production and greatly cuts labor expenses.
Summary & Inquiry
In conclusion, equipped with integrated processing workflow, non-damaging feeding and high-precision forming core strengths, BELAN fully automatic copper busbar bending machine solves industry pain points of low efficiency, high material waste and unstable precision in traditional busbar processing, serving as a high-performance and cost-efficient busbar processing equipment.
BELAN Machinery specializes in automotive wire forming solutions and customized exclusive processing plans. Contact BELAN Automation technical team anytime to get accurate project quotations and one-on-one tailored production line upgrade schemes.
