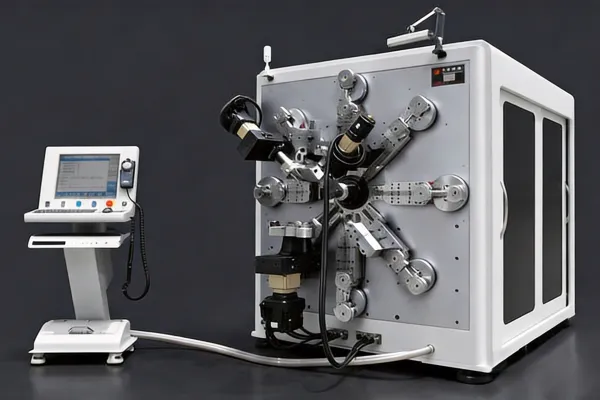

Busbar Bending Machine: Complete CNC Copper & Aluminum Guide
The busbar bending machine has evolved from a simple hydraulic press into a sophisticated CNC manufacturing system that sits at the intersection of electrical engineering, materials science, and precision metrology. As power distribution equipment becomes more compact, more powerful, and more strictly regulated, the demands placed on busbar fabrication equipment have intensified correspondingly. This article examines the technical architecture of modern CNC busbar bending machines — the control systems, measurement technologies, and engineering principles that enable Belan's TP Series to deliver ±0.15 mm positioning accuracy and ±0.3 degree bend angle precision across copper and aluminum busbars ranging from 20×3 mm to 120×12 mm.
CNC Architecture: From Program to Precision Bend
At the heart of a CNC busbar bending machine is a coordinated multi-axis control system that manages four critical motions simultaneously: the servo-driven back-gauge that positions the busbar longitudinally, the hydraulic bending ram that applies forming force, the angle measurement system that provides real-time feedback, and the punching and cutting stations that execute auxiliary operations. The CNC controller orchestrates these axes with sub-millisecond update cycles, ensuring that positioning, bending, and measurement remain synchronized throughout the entire forming cycle.
Belan's TP Series employs an industrial PLC-based controller rather than a consumer-grade PC, providing superior resistance to electrical noise, temperature variation, and vibration — environmental factors common in sheet metal and electrical equipment manufacturing facilities. The PLC executes motion control algorithms developed and validated by Belan's engineering team, with parameters tuned specifically for the force-speed characteristics of copper and aluminum busbar bending. This purpose-built control architecture delivers a level of process consistency that general-purpose CNC platforms cannot match.
Servo-Hydraulic Bending: Force and Control in Balance
The bending unit of a modern busbar bending machine faces a fundamental engineering challenge: it must generate substantial force — up to 45 tons for heavy copper sections — while maintaining precise control over bend speed, dwell time, and final angle. Pure hydraulic systems provide the necessary force but lack the responsiveness for closed-loop angle control. Pure servo-electric systems offer excellent controllability but are prohibitively expensive and mechanically complex at the force levels required for busbar bending.
Belan's solution is a servo-hydraulic hybrid architecture: a variable-displacement piston pump driven by a servo motor supplies hydraulic fluid to the bending cylinder, with the servo motor's speed and torque directly controlling hydraulic pressure and flow rate. This configuration achieves several advantages over conventional proportional-valve-controlled systems:
- Energy efficiency: The servo motor runs only when hydraulic output is needed, reducing energy consumption by 25 to 30 percent compared to continuously running fixed-displacement pump systems. During the positioning phase between bends, hydraulic demand drops to near zero, and the servo motor slows accordingly.
- Precision control: Servo motor speed directly determines hydraulic flow rate, providing a direct, lag-free relationship between the control signal and ram velocity. This enables precise bend speed programming — critical for materials like T6-temper aluminum that require slow, controlled forming to prevent cracking.
- Reduced heat generation: Lower continuous hydraulic output means less heat is generated, extending seal life and reducing hydraulic oil degradation. Oil temperature stability directly affects bending consistency, as viscosity changes alter the force-speed relationship of the hydraulic system.
- Lower noise: The servo motor operates at lower RPM during idle and partial-load conditions, reducing noise levels by 10 to 15 dB compared to fixed-speed hydraulic systems — a significant ergonomic improvement for operators working 8-hour shifts.
Closed-Loop Angle Measurement and Springback Compensation
When a busbar is bent beyond its yield point, it undergoes both plastic (permanent) and elastic (recoverable) deformation. Upon release of the bending force, the elastic component causes the busbar to partially spring back toward its original shape — typically 1 to 4 degrees depending on material, temper, cross-section, and bend radius. Without compensation, this springback makes it impossible to achieve the target bend angle consistently.
Belan's TP Series addresses this challenge through a closed-loop angle measurement system. A high-resolution rotary encoder mounted on the bending die continuously monitors the actual bend angle throughout the forming cycle. The CNC controller compares the measured angle against the programmed target and calculates the required overbend — the additional angle beyond the target that must be applied to account for anticipated springback. The controller then commands the hydraulic ram to the calculated overbend position, releases the clamping force, and verifies that the springback brings the busbar to within ±0.3 degrees of the target angle.
For production repeatability, the CNC stores springback compensation tables indexed by material type, temper, cross-section, and bend radius. These tables are populated during initial material qualification — the operator bends a sample busbar, measures the actual springback, and enters the value into the material database. Subsequent production runs automatically apply the stored compensation, eliminating the need for trial-and-error bending on each new batch of material.
Positioning Accuracy: The Servo Back-Gauge System
The back-gauge — the component that positions the busbar longitudinally to determine where each bend occurs — is arguably the most critical accuracy-determining subsystem on a busbar bending machine. A positioning error of 1 mm at the back-gauge translates directly into a 1 mm error in bend location, which can cause a busbar to misalign with its intended connection points in the assembled equipment.
Belan's TP Series uses a servo motor driving a precision ball screw to position the back-gauge, with linear scale feedback providing closed-loop position verification. The system achieves ±0.15 mm positioning accuracy with rapid traverse speeds of 30 m/min, meaning that the back-gauge can reposition between bends in 2 to 4 seconds — a fraction of the total bend cycle time. An absolute encoder ensures that the back-gauge position is known immediately upon power-up, eliminating the need for a homing routine at the start of each shift.
For multi-bend parts, the back-gauge's accuracy is cumulative — each bend position is measured from the same datum reference, so there is no accumulation of error as would occur with manual step-measurement methods. A busbar with five bends, each positioned to ±0.15 mm from the datum, has a worst-case total length error of ±0.15 mm — not ±0.75 mm — because all measurements reference the same zero point.
Tooling Systems: Quick-Change Design for Batch Production
The bending dies and punch tools on a busbar bending machine are wear items that must be replaced or reconfigured as different busbar widths and thicknesses are processed. Tooling changeover time directly impacts machine utilization — if changing from a 40 mm die to a 60 mm die takes 15 minutes, a factory processing 30 different busbar widths per day loses 7.5 hours to changeover alone.
Belan's TP Series addresses this with a quick-change tooling system that uses a cam-lock clamping mechanism — the operator releases a single lever, removes the current die, inserts the new die, and re-engages the clamp. Total changeover time is under 60 seconds. The punch station uses a multi-tool turret that can hold up to 4 different punch sizes simultaneously, eliminating punch changes entirely for common hole configurations. Tooling is manufactured from hardened tool steel (HRC 58-62) with surface finish optimized to prevent marring of copper and aluminum busbar surfaces — critical for maintaining the contact surface quality required for low-resistance bolted joints.
CAD/CAM Integration: The DXF Workflow
The most transformative capability of a CNC busbar bending machine is its ability to consume engineering data directly from CAD systems, eliminating manual programming entirely. The workflow operates as follows:
The electrical design engineer creates the busbar layout in CAD software (EPLAN Electric P8, AutoCAD Electrical, SEE Electrical, WSCAD, or similar). The 2D flat pattern of each unique busbar — including bend lines, hole positions, and overall cut length — is exported as a DXF file. This DXF file is transferred to the busbar bending machine via USB drive or Ethernet network connection.
The machine's CNC software parses the DXF file, identifying bend lines (indicated by specific layer naming conventions or color codes), hole positions (circles), and the outer profile (cut line). It then generates an optimized processing sequence, applying rules that determine operation order: for example, holes near a bend line are punched before bending to prevent distortion, while holes far from bend lines can be punched after bending if that improves material handling. The generated sequence is displayed as a simulation on the touch screen HMI, allowing the operator to verify the program before committing material.
This DXF-driven workflow reduces programming time from 3 to 5 minutes per unique part (manual method) to under 30 seconds (automated method). For a switchgear factory producing 80 unique busbar configurations per project, total programming time drops from 4 to 6 hours to under 20 minutes — a productivity improvement that fundamentally changes the economics of batch-one production.
Material Science: Processing Different Copper and Aluminum Grades
A busbar bending machine must accommodate multiple material grades, each with distinct mechanical properties that affect bending behavior. Understanding these differences is essential for achieving consistent quality across diverse production requirements.
220–280
| Material Grade | Yield Strength (MPa) | Springback | Bend Difficulty |
|---|---|---|---|
| Cu-ETP (C11000) half-hard | 250–320 | 2–3° | Moderate |
| Cu-OF (C10200) annealed | 1–2° | Low | |
| Cu-Ag (silver-bearing) | 280–350 | 3–4° | Higher |
| Al 6061-T6 | 240–275 | 1–2° | Moderate (crack risk) |
| Al 6101-T6 | 200–240 | 1–1.5° | Low-moderate |
The CNC controller's material database stores springback compensation values, recommended bend speed, and minimum bend radius for each material grade. When the operator selects the material at the HMI, the machine automatically applies the appropriate parameters — no manual calculation or trial bending is required. For operations working with multiple copper and aluminum grades, Belan's TP-30-5E and TP-45-6E models support quick material switching through the touch screen interface, with the CNC adjusting all process parameters in under 10 seconds.
Quality Assurance and Production Traceability
In regulated industries — switchgear manufacturing, EV battery production, data center power distribution — busbar fabrication quality is subject to customer audits and third-party inspection. CNC busbar bending machines support these quality requirements through built-in data logging and traceability features.
Each processed busbar generates a production record that includes: the program number, material type and batch, actual bend angles measured by the encoder, back-gauge positions, punch tool identification, operator ID, and timestamp. These records can be exported via Ethernet to a manufacturing execution system (MES) or stored on the machine's internal memory for later retrieval. During customer factory acceptance testing (FAT), the manufacturer can produce a complete quality dossier for every busbar in the assembly — demonstrating that each part was processed to the specified program with measured angles within tolerance.
This level of traceability is increasingly demanded by Tier 1 automotive customers (IATF 16949 compliance), data center hyperscalers (Uptime Institute Tier III/IV certification), and utility-scale solar and BESS projects where busbar failures can have catastrophic consequences. Belan's busbar processing case studies demonstrate the real-world implementation of these quality systems across diverse industrial applications.
Industry 4.0 Integration and Smart Manufacturing
The next evolution in busbar bending machine technology is the integration of Industry 4.0 capabilities — connecting the machine to the broader digital manufacturing ecosystem to enable real-time production monitoring, predictive maintenance, and data-driven process optimization.
Belan's TP Series supports Ethernet connectivity for integration with factory-level MES and ERP systems, enabling real-time production data exchange. The machine can receive work orders directly from the production planning system, report completion status and part counts, and flag quality exceptions for immediate engineering attention. This connectivity transforms the busbar bending machine from an isolated production unit into an integrated node within the smart factory network.
Predictive maintenance capabilities use sensor data — hydraulic pressure trends, servo motor current draw, encoder position stability — to identify developing issues before they cause unplanned downtime. For example, a gradual increase in hydraulic cylinder cycle time may indicate seal wear, prompting a maintenance request before a seal failure causes a production stop. This proactive approach reduces unplanned downtime by an estimated 30 to 40 percent compared to reactive maintenance strategies.
Global Standards and Certification Framework
Busbar bending machines intended for international markets must comply with multiple regulatory frameworks. Belan's manufacturing operates under ISO 9001:2015 certification, and the TP Series carries CE marking conforming to the European Machinery Directive (2006/42/EC), EMC Directive (2014/30/EU), and Low Voltage Directive (2014/35/EU). This regulatory compliance enables duty-free import into European Union markets and satisfies the equipment certification requirements of major international EPC contractors and OEM specifications.
For North American customers, the machines support compliance with NFPA 79 (Electrical Standard for Industrial Machinery) and ANSI B11.0 (Safety of Machinery) requirements, including emergency stop circuits, light curtain integration, and lockout-tagout provisions. Documentation packages are available in English, Spanish, and Portuguese to support the diverse markets Belan serves across the Americas, Europe, and Asia-Pacific.
Engineering Support and Technology Partnership
Selecting and implementing a busbar bending machine is a technical decision that extends far beyond the initial purchase. The machine must be matched to the specific busbar specifications, production volume, quality requirements, and facility constraints of each customer. Belan approaches this as an engineering partnership rather than a transactional sale — the services team provides application engineering support including busbar specification analysis, machine capacity verification, tooling configuration recommendations, and facility layout planning.
Post-installation support includes operator training (both on-site at commissioning and remote via video consultation), a 12-month comprehensive warranty, and ongoing technical assistance through Belan's global after-sales support network. Spare parts are stocked for 3-to-7-day air courier delivery worldwide, minimizing production disruption when wear items or consumables need replacement.
For manufacturers ready to elevate their busbar fabrication capabilities to CNC precision, contact Belan's engineering team to discuss your application. We provide detailed technical proposals including machine model selection, tooling configuration, capacity verification against your busbar specifications, and projected ROI analysis — backed by the engineering depth and global service infrastructure that have made Belan a trusted partner for electrical equipment manufacturers in over 20 countries.
